ToughCut SAPPHIRE Educational CNC Router 415V

Educational Standard Model / 1240mm x 1220mm

$24,441.00 USD

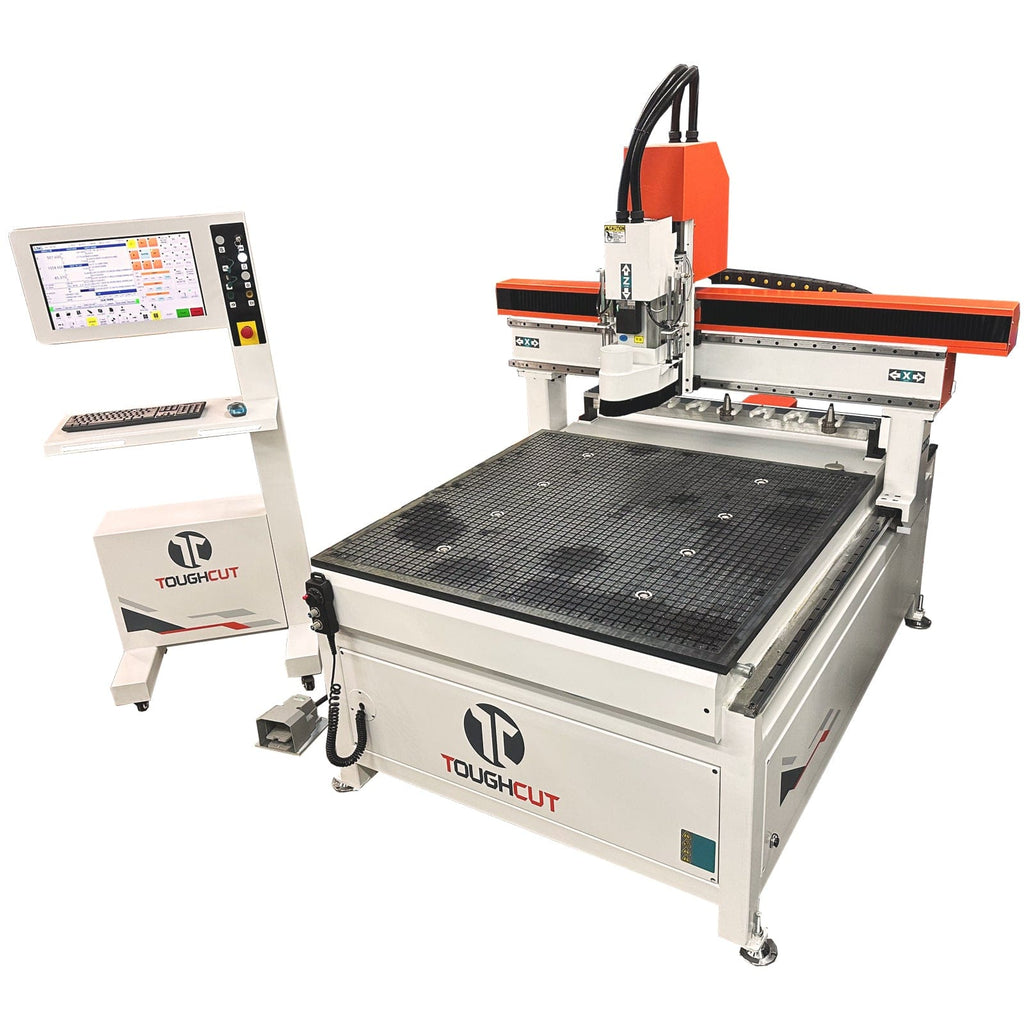

ToughCut SAPPHIRE Educational CNC Router 415V

Name: Educational Premium Model / 1240mm x 1220mm ToughCut SAPPHIRE Educational CNC Router 415V
SKU: 9000609
Price: 25883.0 USD
Availability: InStock

$24,441.00 USD

Style Educational Standard Model Educational Premium Model

Size (Working Area) 1240mm x 1220mm 1240mm x 2440mm

The ToughCut SAPPHIRE Educational CNC Router Series is engineered for precision, versatility, and user-friendly operation, making it an ideal solution for schools, workshops, and advanced hobbyists. Built on a rigid frame with T-WIN 25mm guide rails and a ball screw transmission, it delivers reliable accuracy and repeatable performance for a wide range of materials including wood, plastics, acrylic, and soft metals.

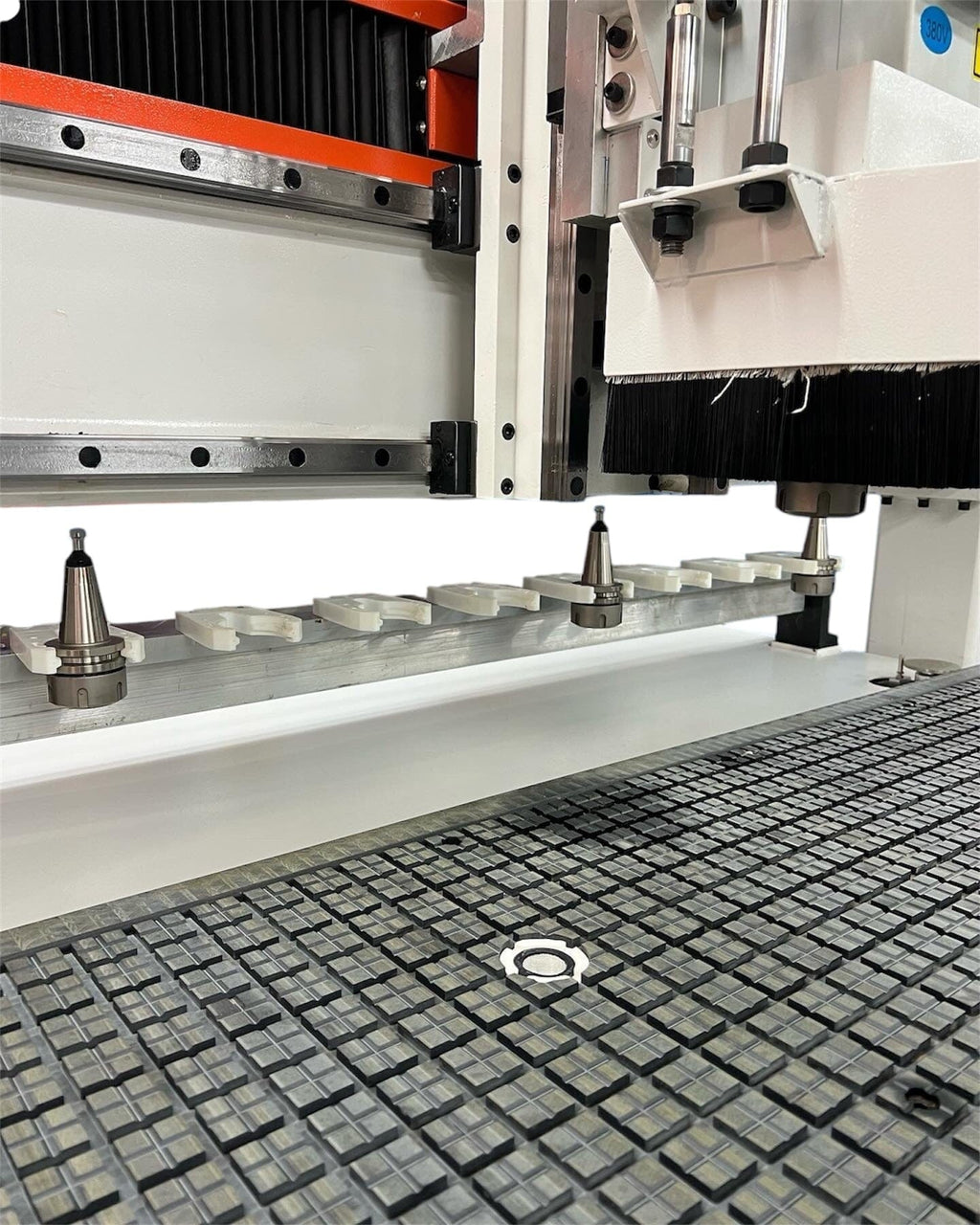

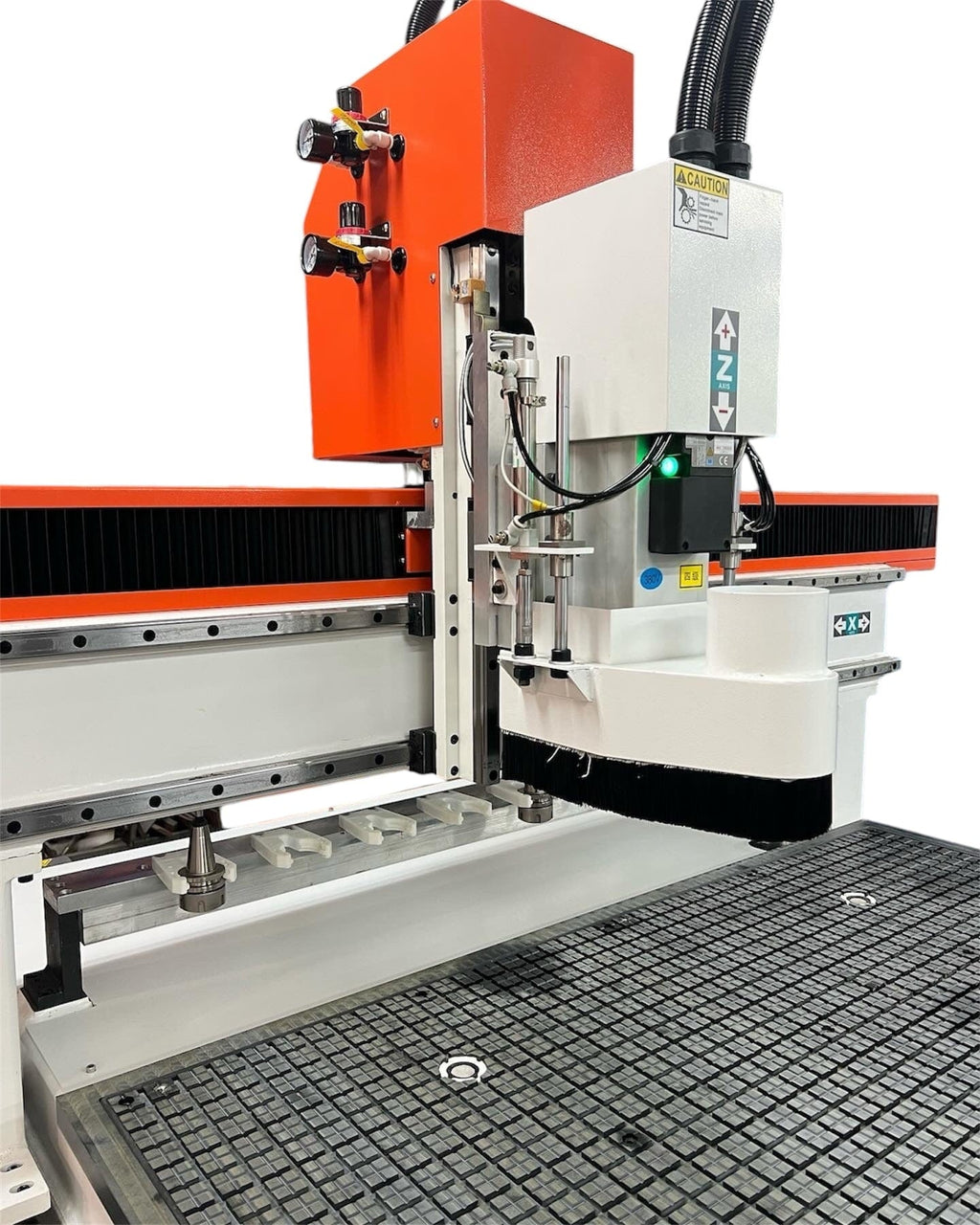

This 415V machine features an 8-slot ISO30 automatic tool changer, a 6kW air-cooled spindle reaching 18,000 RPM, and a 5.5kW vacuum pump to secure workpieces firmly in place. The intuitive LNC MW2500D controller with a movable panel, 20-inch monitor, keyboard, and mouse ensures straightforward operation, while automatic lubrication and tool length calibration reduce maintenance and setup time.

Key Features

Brand	ToughCut
Model	SAPPHIRE TCVE25-1212-L4-EDU
Power Supply	415V
Machine Body Size	1800 x 1800 x 1800 mm
Working Area	1240 x 1220 mm
Controller	LNC MW2500D (Taiwan)
Spindle Power	6 kW
Spindle Type	Air-Cooled ATC (HQD CC, ISO30)
Spindle Speed	Up to 18,000 RPM
Inverter	Delta 7.5 kW

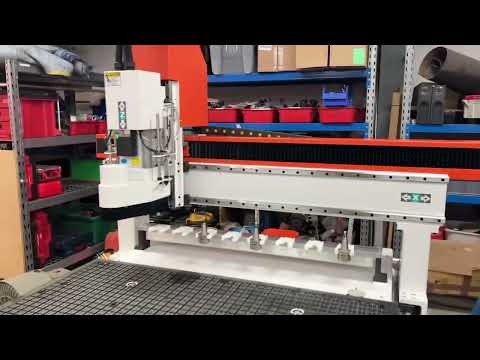

Tool Changer	8-Slot ISO30 Automatic
Drive Motor	Leadshine Servo Motors
Transmission	Ball Screw
Guide Rails	T-WIN 25 mm
Vacuum Pump	5.5 kW (320 m³/h)
Lubrication	Automatic
Monitor	20 inch
Data Transfer	USB
Product Type	CNC Router

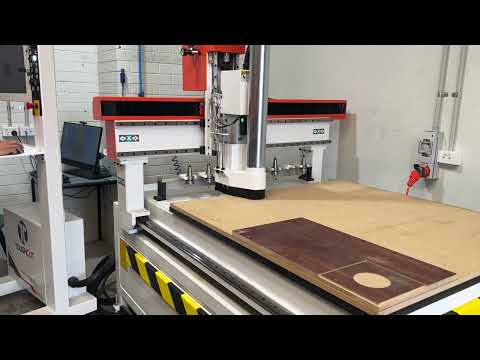

Videos

Watch video

Compatibility

Compatible with standard G-code programs via USB upload. Requires external CAD/CAM software such as VCarve for design and toolpath generation. The ISO30 tool holder interface is compatible with a wide range of standard ISO30 collets and tooling, which must be purchased separately.

What's included

ToughCut SAPPHIRE CNC Router Machine
Movable Control Panel with 20" Monitor, Keyboard, and Mouse
5.5 kW Vacuum Pump with Filter

Frequently asked questions

What materials can the ToughCut SAPPHIRE CNC Router process?

It is designed for a wide range of materials including wood, MDF, plywood, acrylic, PVC, plastics, epoxy, resin, ABS, PP, PE, and soft metals such as copper and aluminium.

What are the workshop requirements for operating this machine?

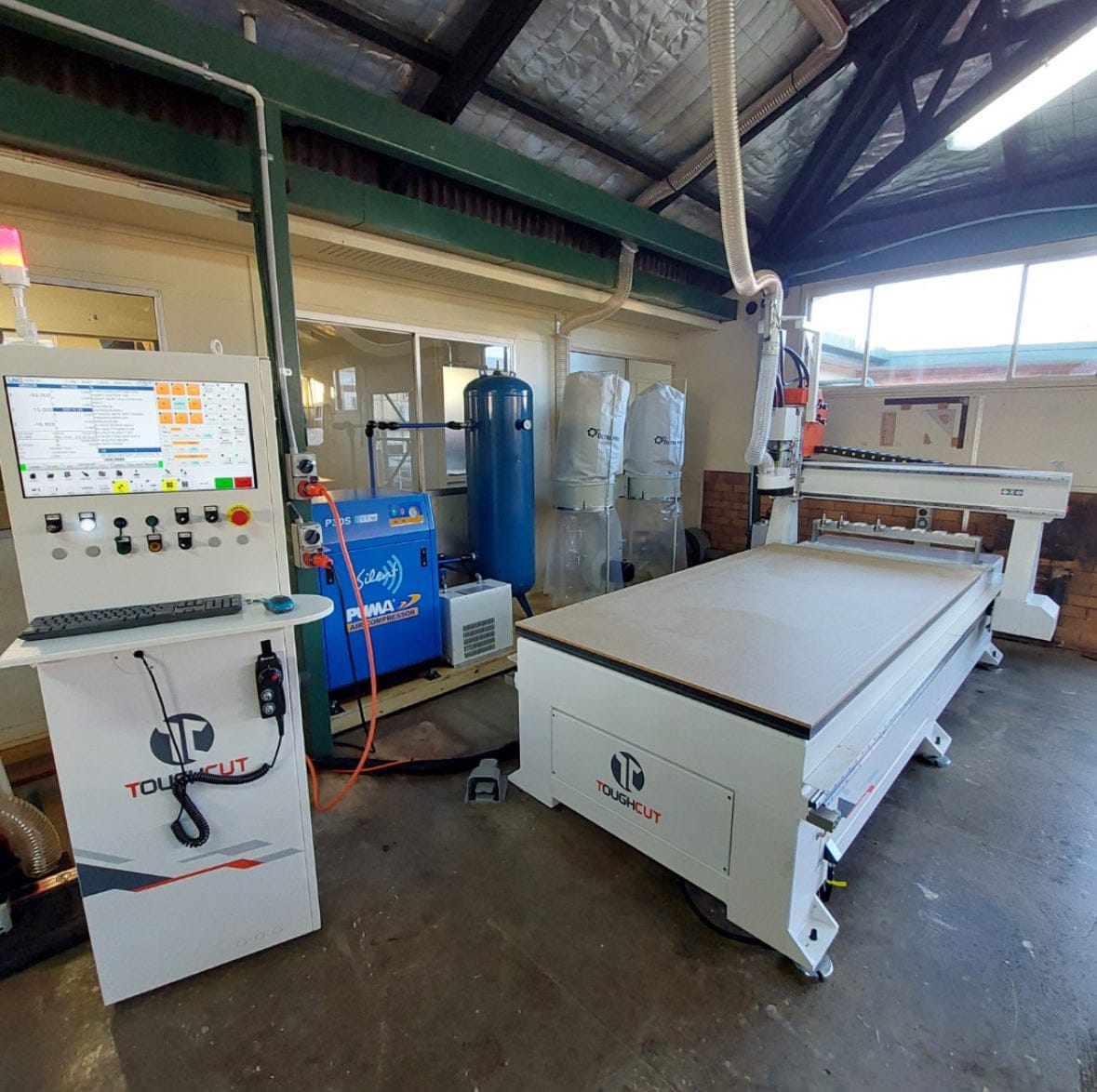

You will need a 20 amp 5-pin 415V socket outlet, a compressed air supply delivering a minimum of 500 L/min at 6 bar, an air dryer and filters, a dust extraction system with a 100 mm outlet and minimum 2 HP, and appropriate CAD/CAM software.

Does the machine come with tooling and collets?

No, the machine is not supplied with tooling. You will need to purchase collets for the tool holders separately, with the size depending on the tooling you intend to use.

What is the difference between the Standard and Premium models?

The Premium model builds on the Standard with a high-torque spindle, a dual-ball screw transmission for greater precision, faster tool change speeds, heavy-duty reinforced guide rails, and an intelligent lubrication system for extended machine life.
