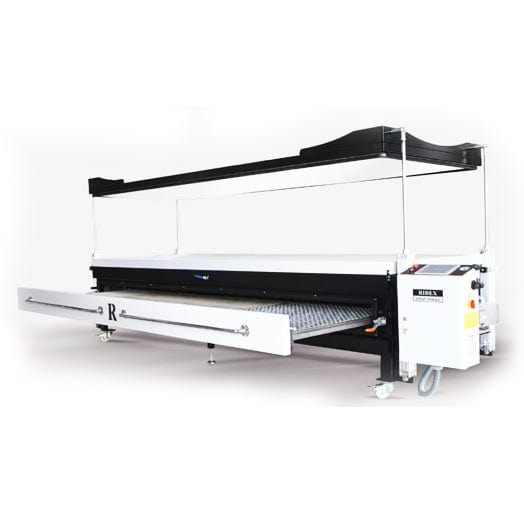

Ribex ROCO MAXI VERTICAL 4800 mm Thermoforming Oven Vacuum Press
$75,701.00 USD
Sale price
$75,701.00 USD
Regular price
The Ribex ROCO MAXI VERTICAL combines a powerful 18 kW heating oven with a pneumatic vertical-movement vacuum press, purpose-built for shaping solid surface materials and thermoplastics up to 800 mm in height. Its 3800 x 1250 mm heating chamber uses the ROCO hot-air circulation system and 150 mm insulated walls to deliver uniform heat up to 230°C, while the 4100 x 1300 mm multi-hole vacuum table pairs with a German Becker rotary-vane pump for consistent, high-force forming.
Operators control every cycle through a PLC-driven HMI touch screen with multilingual menus, digital vacuum and timer readouts, and preset programs for different workshops. The machine ships with a heat-resistant wire grill and a portable stainless-steel perforated plate, and can be optioned with a high-membrane kit for molding up to 950 mm or a 100 m³/h Becker pump for faster vacuum performance.
Key Features
| Brand | Ribex |
| Model | ROCO MAXI VERTICAL |
| Type | Vacuum Press |
| Power Source | 415V 50Hz 3 Phase |
| Heating Power | 18 kW |
| Total Power | 20 kW |
| Max. Working Temperature | 230°C |
| Heating Chamber Dimensions (W x L x H) | 1250 x 3800 x 110 mm |
| Vacuum Table Dimensions (W x L x H) | 1400 x 4100 x 0-900 mm |
| Overall Dimensions (W x L x H) | 1700 x 4800 x 1200 mm |
| Net Weight | 1750 kg |
| Vacuum Pump | Becker VT 4.40 Rotary Vane |
| Vacuum Displacement | 40 m³/h |
| Max. Vacuum Pressure | 9 t/m² |
| Membrane Elongation | 800-1000% |
| Press Movement | Pneumatic Vertical |
| Max. Molding Height (Standard) | 800 mm |
| Max. Molding Height (Optional High-Membrane) | 950 mm |
| Optional Vacuum Pump | Becker 100 m³/h |
| Controller | PLC with HMI Touch Screen (24 VDC) |
| Electrical Connection | Excludes Plug & Lead (must be connected by Licensed Electrician) |
Highlights
- 18 kW heating oven with ROCO hot-air circulation and 150 mm insulated walls for uniform heat up to 230°C
- Pneumatic vertical press movement allows solid-surface forming up to 800 mm (950 mm with optional high-membrane)
- German Becker VT 4.40 rotary-vane vacuum pump delivers 40 m³/h displacement and up to 9 t/m² pressure
- PLC control with multilingual HMI touch screen, digital vacuum gauge, and programmable presets for different workshops
- Includes heat-resistant wire oven grill and portable 2000 x 1000 mm stainless-steel perforated plate
Videos
Compatibility
Compatible with all types of solid surface materials and thermoplastics that require heating to flexibility followed by vacuum forming and cooling.
How to use
Load the material onto the stainless-steel perforated plate or wire grill, slide it into the heating chamber, and close the tight-sealing lid. Set the desired temperature and heating time via the PLC touch screen. Once the material reaches forming temperature, transfer it to the vacuum table, lower the pneumatic press with the silicone membrane, and activate the vacuum cycle. The digital on-screen gauges and timers allow precise control, while preset programs streamline repeat jobs.
