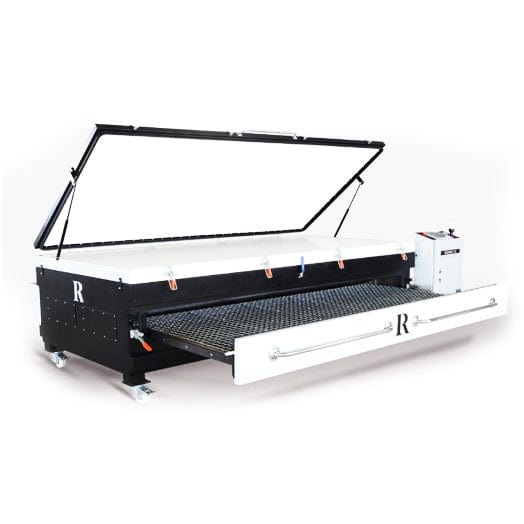

Ribex ROCO MAXI 3300 mm Thermoforming Oven Vacuum Press
$72,024.00 USD
Sale price
$72,024.00 USD
Regular price
Skip to product information
Thermoforming Oven + Vacuum Press ROCO Standard by Ribex $72,024.00
Ribex ROCO MAXI 3300 mm Thermoforming Oven Vacuum Press
$72,024.00 USD
Sale price
$72,024.00 USD
Regular price
The Ribex ROCO MAXI combines a powerful 13.5 kW heating oven with a high-capacity vacuum press, purpose-built for thermoforming solid surfaces and thermoplastics. Its patented hot air circulation system ensures uniform heat distribution across the 2600 x 1250 mm chamber, while the German Becker vacuum pump delivers consistent, balanced suction for precise forming results.
Designed for professional workshops, this machine features a PLC with a multilingual HMI touch screen for intuitive control over heating and vacuum cycles. The robust steel construction, 150 mm insulated walls, and a large 2770 x 1300 mm vacuum table make it a reliable solution for demanding, high-volume production environments.
Key Features
| Brand | Ribex |
| Model Number | ROCO MAXI |
| Type | Vacuum Press |
| Power Source | 415V 50Hz 3 Phase |
| Motor Power (Input) | 2HP / 1500W |
| Heating Power | 13.5 kW |
| Total Power | 15 kW |
| Max. Working Temperature | 230 °C |
| Heating Chamber Dimensions (WxLxH) | 1250 x 2600 x 110 mm |
| Vacuum Table Dimensions (WxLxH) | 1300 x 2770 x 0-400 mm |
| Overall Dimensions (WxLxH) | 1700 x 3300 x 1100 mm |
| Product Weight (Net) | 1180 kg |
| Vacuum Pump | Rotary vane Becker VT 4.40 |
| Max. Vacuum Pressure | 9 t/m² |
| Displacement | 40 m³/h |
| Membrane Material | Silicone membrane natural rubber |
| Controller | PLC and HMI Touch Screen (24 VDC) |
| Heat Insulation | 150 mm heat insulated walls |
| Electrical Connection | Excludes Plug & Lead (must be connected by Licensed Electrician) |
Highlights
- Patented RIBEX ROCO hot air circulation system for uniform heat distribution
- German Becker rotary vane vacuum pump for reliable, high-power suction
- PLC with multilingual HMI touch screen for intuitive operation and preset programs
- 150 mm heat-insulated walls for energy efficiency and safety
- Large 2770 x 1300 mm vacuum table accommodates sizable workpieces
Videos
Compatibility

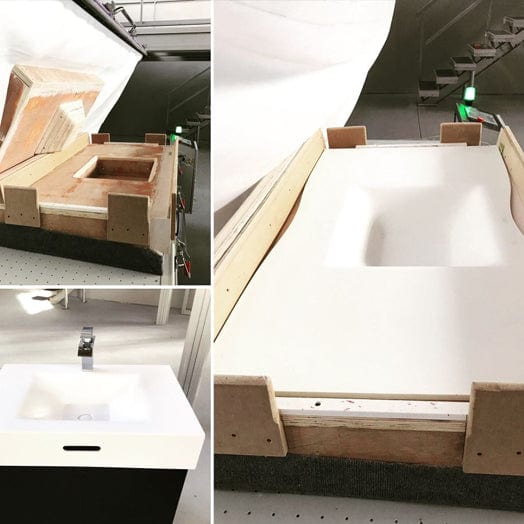

Compatible with all types of solid surface materials and thermoplastics. The oven grill can be supplemented with an optional portable stainless steel perforated plate measuring 2000 x 1000 mm for processing thermoplastic sheets.
How to use
Load the solid surface or thermoplastic sheet onto the optional stainless steel perforated plate or oven grill. Use the PLC and HMI touch screen controller to set the desired temperature and heating time. Once the material reaches the correct flexibility, transfer it to the vacuum table and activate the vacuum cycle to form and cool the piece. The controller offers test, manual, and automatic program modes for different workshop needs.
What's included
Thermoforming Oven + Vacuum Press ROCO Standard by Ribex $72,024.00
