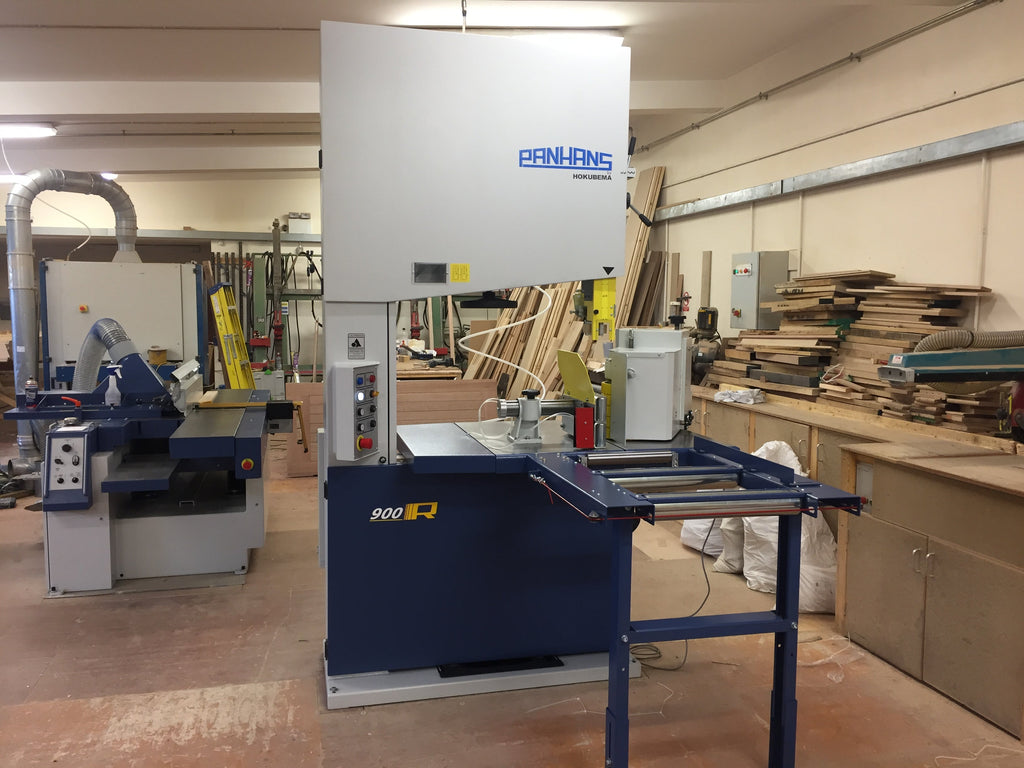

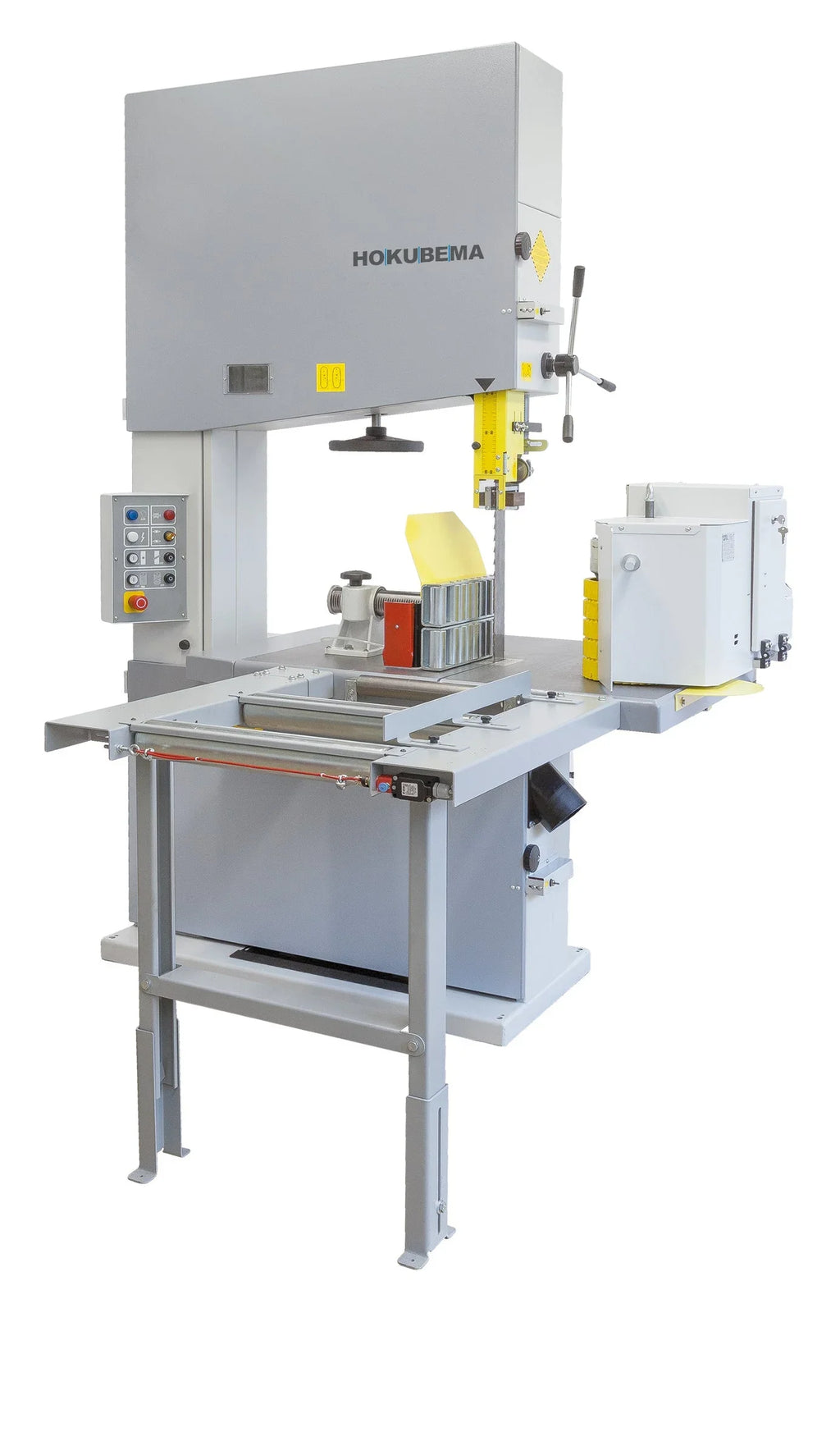

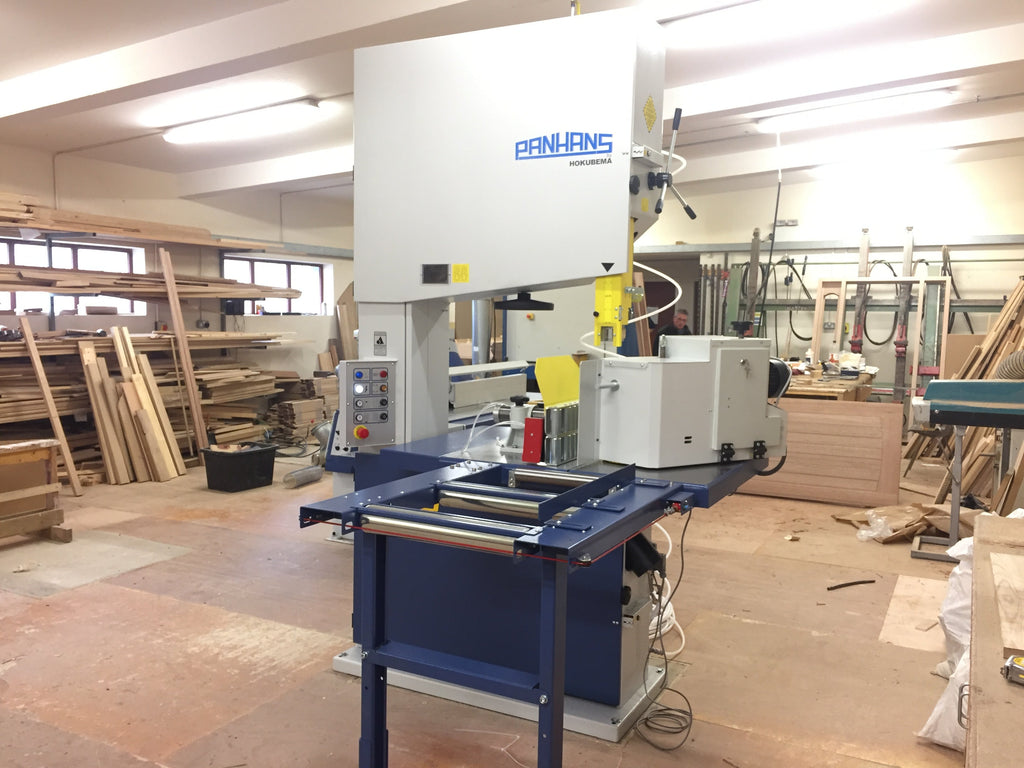

Panhans R900 Heavy-Duty Band Re-saw

Name: Panhans R900 Heavy-Duty Band Re-saw
SKU: BP-8728-PAN-PAN-DEF
Price: 42467.57 USD
Availability: InStock

$42,467.57 USD

The Panhans R900 is a heavy-duty band re-saw engineered for industrial timber processing, featuring an exceptionally powerful motor designed to drive wide sawblades with ease. Its robust welded steel main frame and solid ground cast-iron flywheels, complete with automatic scrapers, ensure vibration-free operation and long-term durability. The machine is fully prepared for integration with an automatic feeding device, making it ideal for high-volume resawing applications.

Precision and safety are paramount, with friction-free upper and lower blade guides adjusted via a convenient rack and handwheel system. A comprehensive blade-lubricating device removes resin buildup, while the automatic star/delta start, blade tension indicator, and triple emergency stop enhance operational control. The 20° tilting table and double extraction outlet complete this high-performance machine, which is quality made in Germany.

Key Features

Brand	Panhans
Manufacturer	Panhans
Model	R900
Product Type	Band Re-saw
Machine Type	Heavy-Duty
Main Frame Material	Welded Steel
Flywheel Material	Ground Cast-Iron

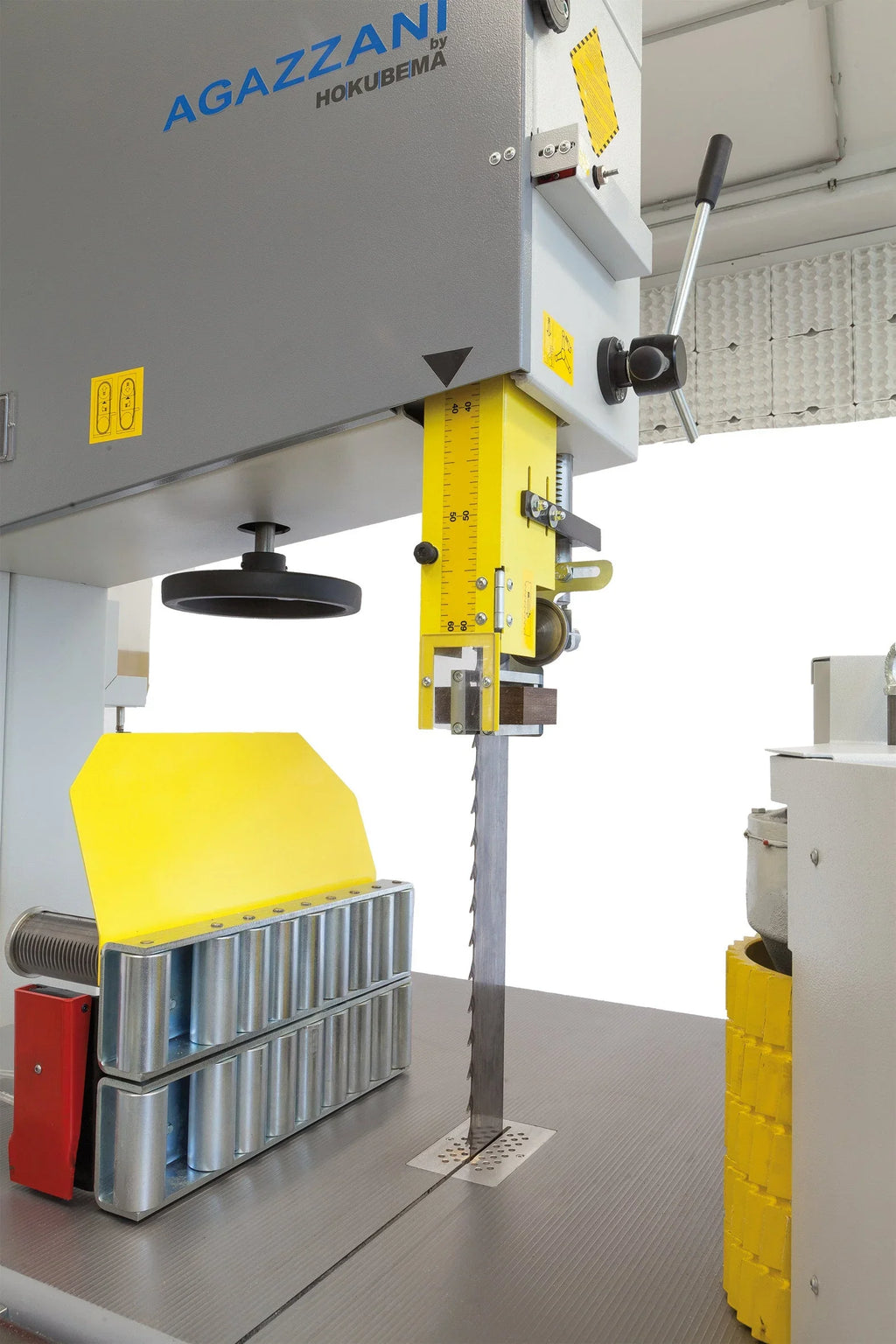

Blade Guide Type	Friction-Free Inserts, Upper and Lower
Blade Guide Adjustment	Rack and Handwheel
Table Tilt	20°
Motor Start	Automatic Star/Delta
Safety Features	Triple Emergency Stop
Extraction Outlets	Double
Blade Maintenance	Lubricating and Resin Removal Device
Automatic Feeding	Pre-equipped for Automatic Feeding Device
Country of Origin	Germany

Highlights

Heavy-duty welded steel frame with solid ground cast-iron flywheels
Powerful motor designed for wide sawblades and automatic feeding
Friction-free upper and lower blade guides with rack and handwheel adjustment
Integrated blade lubrication and resin removal system
20° tilting table and double dust extraction outlets
Quality made in Germany

Compatibility

Designed for heavy-duty industrial resawing applications. The machine is pre-equipped for integration with an automatic feeding device, making it compatible with high-volume production line setups.

Frequently asked questions

What materials is the Panhans R900 frame constructed from?

The main frame is constructed from welded steel, and it features solid flywheels made of ground cast-iron for maximum stability and durability.

Is the Panhans R900 compatible with automatic feeding systems?

Yes, the R900 is specially designed to be equipped with an automatic feeding device, making it suitable for high-volume, continuous resawing operations.

How does the machine manage sawdust and resin buildup on the blade?

It is equipped with automatic scrapers on the flywheels to remove sawdust incrustations and a dedicated blade-lubricating device that also functions to remove resin.

What safety features are included with the Panhans R900?

The machine includes a triple emergency stop system, an automatic star/delta starting mechanism, and a blade tension indicator to ensure safe operation.
