Orma Duplex Corian Oven and Press
$32,053.08 USD
Sale price
$32,053.08 USD
Regular price

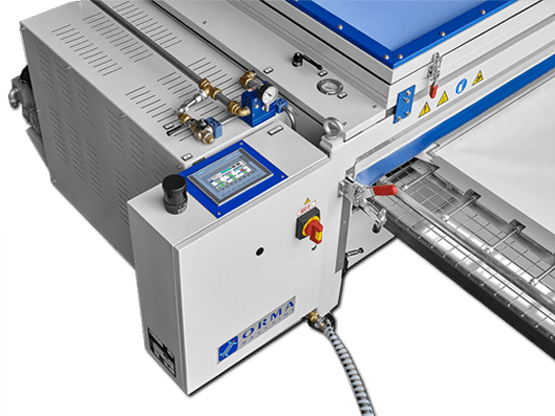

The Orma Duplex combines a heating kiln and a cold vacuum forming press into one efficient machine, designed for shaping solid surface materials like Corian. A jig made from MDF or plywood holds the preheated composite, which is then formed in the upper section using vacuum membrane action with a maximum working height of 500 mm.
Optional upgrades extend the working height to 900 or 1200 mm, and a sublimation kit can be added for transferring images onto workpieces, making it a versatile solution for advanced fabrication workshops.
Key Features
| Brand | Orma |
| Manufacturer | Orma |
| Product Type | Oven and Press |
| Material Compatibility | Solid Surface (Corian) |
| Machine Functions | Heating Kiln, Cold Vacuum Forming Press |
| Forming Method | Vacuum Membrane |
| Jig Material | MDF or Plywood |
| Max Working Height (Standard) | 500 mm |
| Max Working Height (Optional) | 900 mm / 1200 mm |
| Optional Kit | Sublimation Kit |
| Delivery Time | Approx 60 Days unless in stock |
Videos
How to use

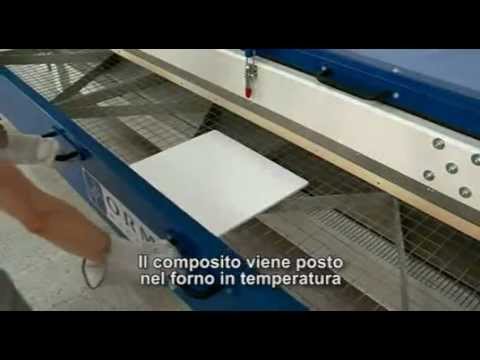

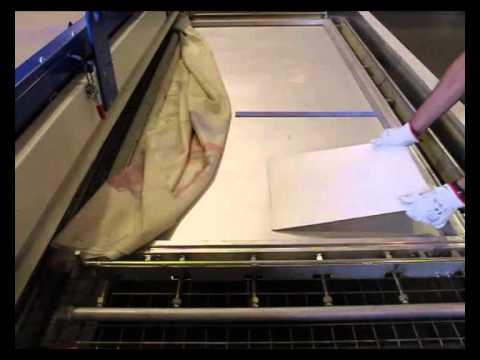

Place the solid surface material in the lower heating kiln until it reaches the required pliability. Transfer the heated material onto an MDF or plywood jig, then position it in the upper vacuum forming section. Activate the vacuum membrane to shape the material over the jig up to the machine's working height limit.
What's included
- Orma Duplex machine body with integrated heating kiln
- Cold vacuum forming press with membrane
- Standard jig mounting system
- Control unit
