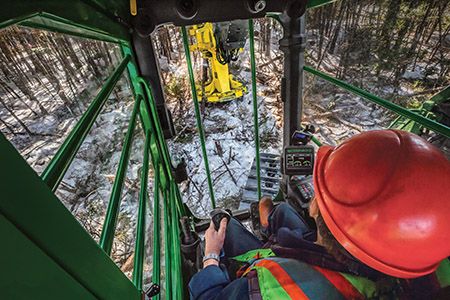

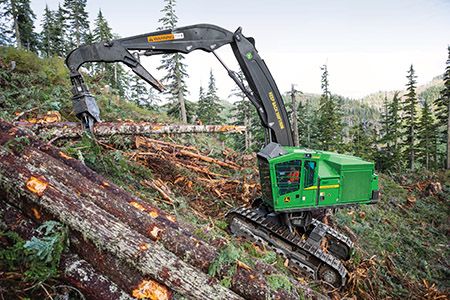

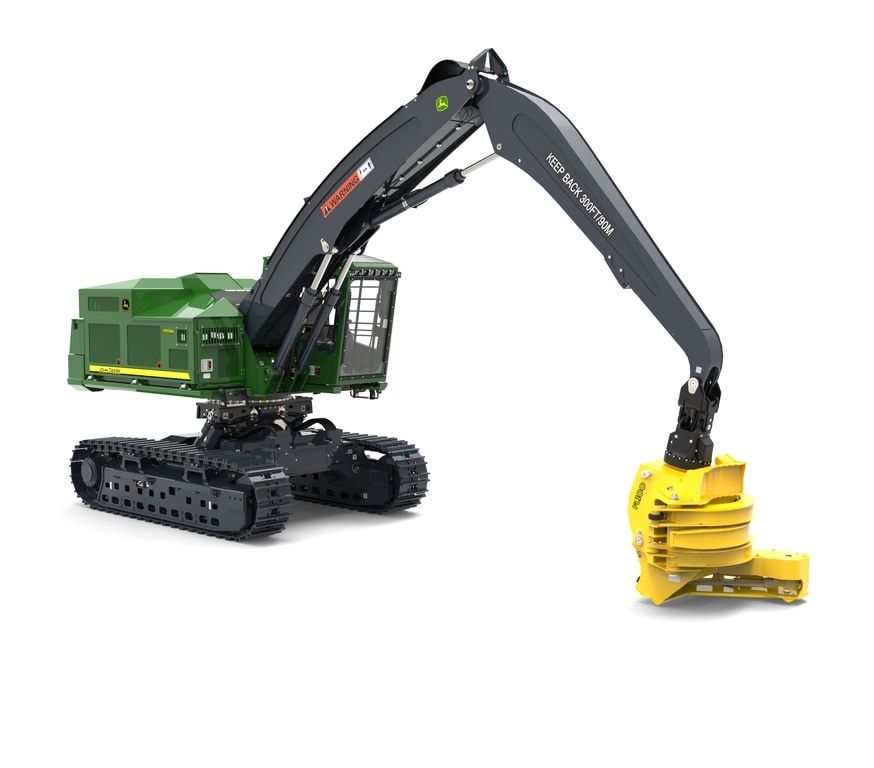

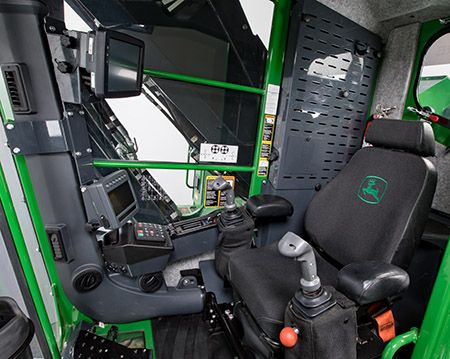

The John Deere 959ML Shovel Logger delivers 330 net horsepower for demanding directional felling and shovel logging applications. Its spacious M-series cab features floor-to-ceiling front glass, a skylight, and expansive side windows for superior visibility, while low-effort electrohydraulic controls and an optional heated and ventilated seat keep operators productive through long shifts.

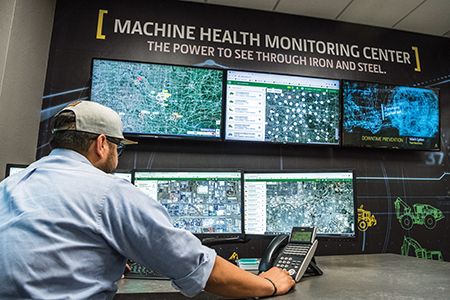

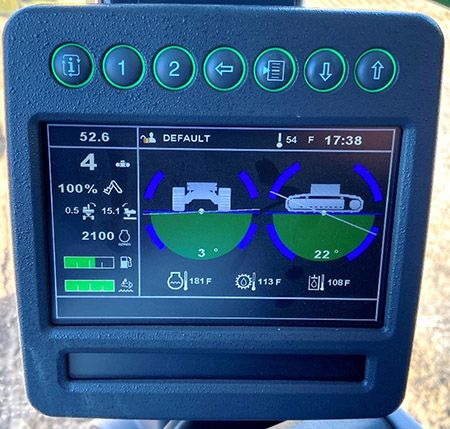

Built on a long, wide undercarriage with 83,880 lbf of tractive effort, the 959ML provides exceptional stability on steep terrain. The available leveling system tilts up to 26 degrees forward, and integrated JDLink connectivity enables remote diagnostics, machine health monitoring, and real-time production tracking through TimberManager.

Key Features

Brand John Deere
Model 959ML
Product Type Shovel Logger / Directional Feller
Engine Manufacturer John Deere

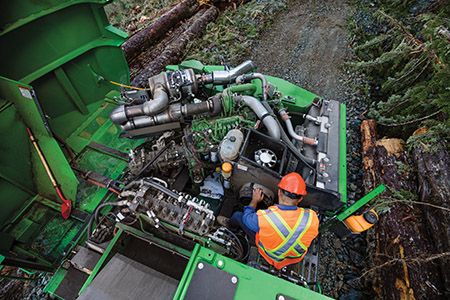

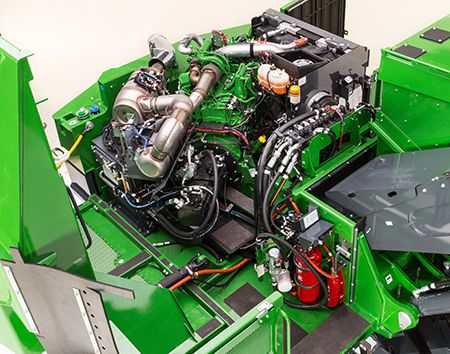

Engine Model PowerTech Plus 6090PSS
Displacement 549 in³
Engine Output 330 hp
Engine Torque 1,126 lbf/ft
Carrier Rollers - Each Side 2
Track Rollers - Each Side 10
Track Shoe Width 24 in
Track Shoe Width - Option 28 in
Transport Height 13 ft 3 in
Overall Width 10 ft 11 in
Overall Track Length 16 ft 1 in
Track Length On Ground 12 ft 6 in
Tailswing Radius 10 ft 5 in
Ground Clearance 2 ft 6 in
Width Over Tracks 10 ft 11 in
Track Gauge 8 ft 11 in
Horizontal Reach 36 ft 1 in
Fuel Tank Capacity 285 gal
Ground Bearing Pressure 11 psi
Slew Torque 81,257 lbf/ft
Travel Speed 2.6 mph
Lift Capacity at Max Reach 9,610 lb
Pump Type Variable Axial Piston
Pump Flow 141 gal/min
Operating Weight 86,790 lb

Highlights

  • Net Power: 246 kW (330 hp) at 1,900 rpm
  • Max. Boom Reach: 10.34 m (33 ft. 11 in.) / 11.00 m (36 ft. 1 in.)
  • Tractive Effort: 373 kN (83,880 lbf)

Compatibility

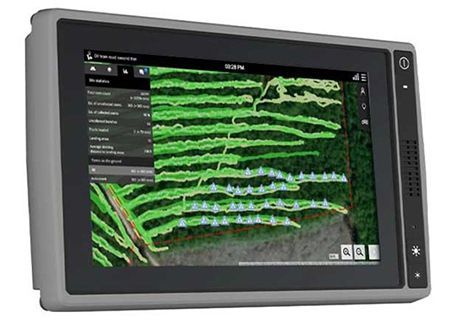

The 959ML is compatible with John Deere TimberMatic Maps and TimberManager software for fleet and production management. It supports John Deere Connected Support for remote dealer diagnostics and service. Various track pad widths and grouser types are available to optimize the machine for specific ground conditions and forestry applications.

What's included

  • John Deere 959ML Shovel Logger base machine
  • Operator station with electrohydraulic controls
  • JDLink telematics hardware
  • Standard 24 in track shoes
  • Operator documentation

Frequently asked questions

What is the engine power of the John Deere 959ML?

The 959ML is powered by a John Deere PowerTech Plus 6090PSS engine delivering 330 hp (246 kW) at 1,900 rpm.

What is the maximum horizontal reach of the 959ML?

The maximum boom reach is 36 ft 1 in (11.00 m), allowing for extended directional felling and shovel logging operations.

Does the 959ML include telematics and remote monitoring?

Yes, JDLink connectivity is included as standard, enabling remote diagnostics, machine health monitoring, and real-time production tracking through TimberManager.

What undercarriage options are available for the 959ML?

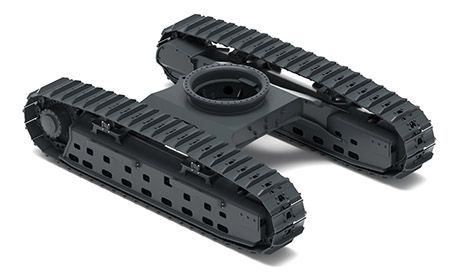

The 959ML features a long, wide undercarriage with 24 in track shoes as standard and an optional 28 in width. An optional tri-track configuration is also available to reduce track twisting.
