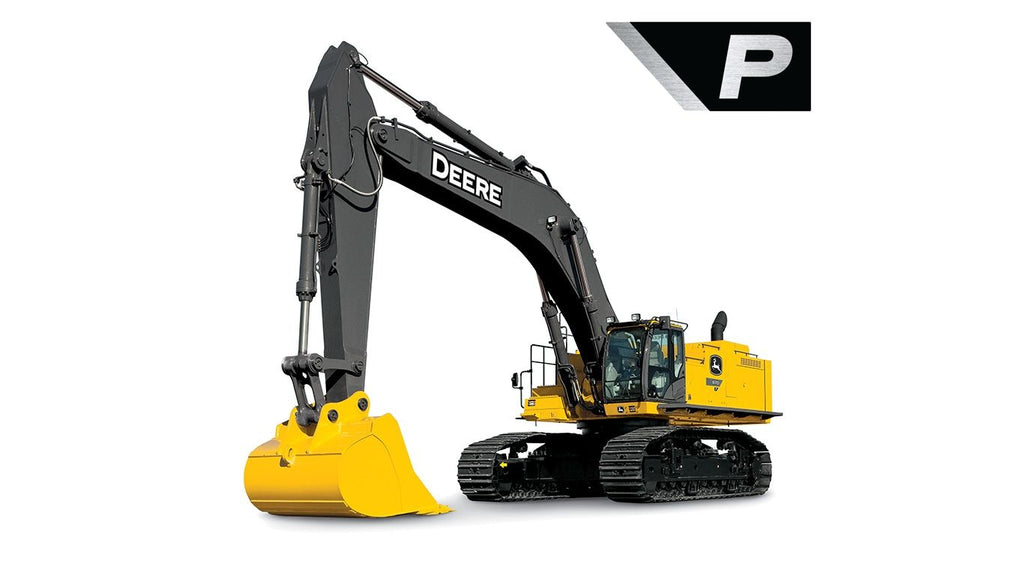

The John Deere 870 P-Tier is our largest excavator, engineered to deliver exceptional productivity and operator comfort on the most demanding jobsites. Powered by a Final Tier 4 Isuzu engine that eliminates the need for a DPF, this 85.6-ton machine combines efficient combustion with reduced emissions for reliable, uninterrupted performance.
Operators will appreciate the spacious, quiet cab with a sculpted heated air-suspension seat, intuitive LCD monitor, and excellent all-around visibility enhanced by a standard 270-degree camera system and LED surround lighting. With powerful hydraulics delivering 399 kN of bucket breakout force and a maximum dig depth of 31 ft 5 in, the 870 P-Tier is built to move more material with confidence.
Key Features
| Brand | John Deere |
| Model | 870 P-Tier |
| Product Type | Large Excavator |
| Engine Manufacturer | Isuzu |
| Emission Rating | Tier 4 / Stage IV |
| Number of Cylinders | 6 |
| Displacement | 957 in³ |
| Rated Speed | 1800 rpm |
| Engine Output - Net | 512 hp |
| Number of Carrier Rollers - Each Side | 3 |
| Number of Track Rollers - Each Side | 8 |
| Track Shoe Width | 36 in |
| Transport Length (Mono Boom) | 48 ft 7 in |
| Transport Height - Maximum | 16 ft 10 in |
| Overall Undercarriage Width | 14 ft 3 in |
| Track Length on Ground | 16 ft 9 in |
| Overall Undercarriage Length | 20 ft 10 in |
| Tailswing Radius | 14 ft 11 in |
| Ground Clearance | 35 in |
| Digging Reach (Mono Boom) | 48 ft 2 in |
| Ground Level Reach (Mono Boom) | 48 ft |
| Dig Height (Mono Boom) | 45 ft 4 in |
| Dump Height (Mono Boom) | 31 ft 11 in |
| Dig Depth - 8 ft Flat Bottom | 31 ft |
| Dig Depth (Mono Boom) | 31 ft 5 in |
| Fuel Tank Capacity | 293 gal (US) |
| Hydraulic Tank Capacity | 132.1 gal (US) |
| Ground Bearing Pressure | 12 PSI |
| Swing Speed | 7.8 rpm |
| Swing Torque | 198,404 lbf/ft |
| Travel Speed - High | 2.9 mph |
| Tractive Force | 125,850 lbf |
| Arm Tearout Force | 62,946 lbf |
| Bucket Breakout Force | 89,699 lbf |
| Gradeability | 70% |
| End Lift Capacity - 24.6 ft Reach | 59,460 lb |
| Side Lift Capacity - 24.6 ft Reach | 44,800 lb |
| Total Hydraulic Flow | 300 gal (US)/min |
| Bucket Pressure | 4,627 PSI |
| Boost Pressure | 4,975 PSI |
| Operating Weight | 188,716 lb |
Highlights

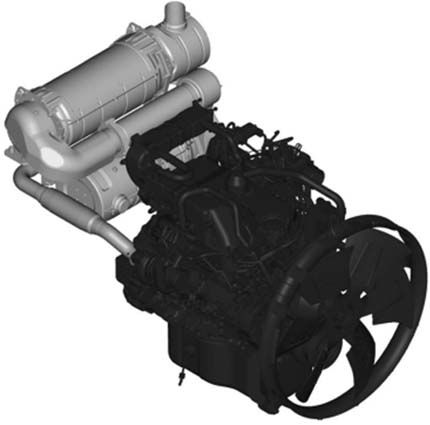

Final Tier 4 Isuzu® Engine
The final tier 4 Isuzu engine reduces NOx by injecting diesel exhaust fluid (DEF) into the exhaust stream where it decomposes into ammonia. This design eliminates the need for regenerations or a diesel particulate filter (DPF). Efficient combustion allows Isuzu engines to burn particulate matter in-cylinder during combustion.
- Cooled exhaust gas recirculation reduces Nitrogen Oxide (NOx) emissions and minimizes fuel consumption.
- Variable Geometry Turbocharger.
- Diesel Oxidation Catalyst (DOC) reacts with exhaust gases to reduce carbon monoxide and hydrocarbons.

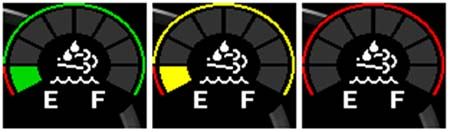

- A DEF level gauge changes colors to indicate DEF levels for monitoring.
Monitoring technology supports smooth and efficient equipment operation.
Operator’s station
The cab features a spacious design, all-around visibility, and amenities to support operator productivity.

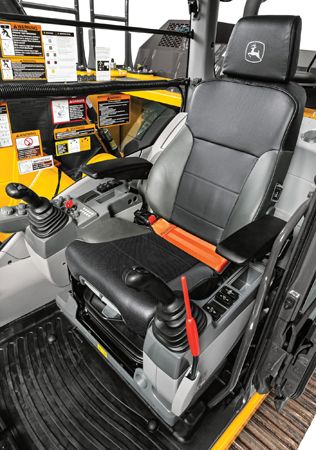

- Sculpted and heated air-suspension high-back seat with 317.5-mm (12.5-in.) of travel slides with or independent of the joystick console.
- Multi-language liquid-crystal display (LCD) monitor and rotary dial provide access to information and functions.
- Wide expanse of front, side, and overhead glass and mirrors provide visibility to the sides and rear.
- Automatic, high-velocity, bi-level climate-control system with automotive-style adjustable louvers.
- Standard boom/frame lights and cab/boom-mounted options provide illumination.

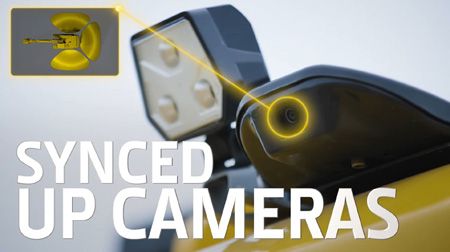

Work confidently via standard cameras and lighting
Standard Right, Rear, and Left camera system with additional LED surround lighting provide 270-degree visibility around the machine, integrated into the main monitor.
- Enhanced visibility in low light conditions.
- Powerful LEDs cast light surrounding 270 degrees of the sides and rear of the machine. Cameras display surroundings on the main monitor.
- LED front work lights and rear camera are standard equipment.
What's included
- John Deere 870 P-Tier Large Excavator
- Standard right rear and left camera system
- LED surround lighting package
- Operator's manual and documentation
