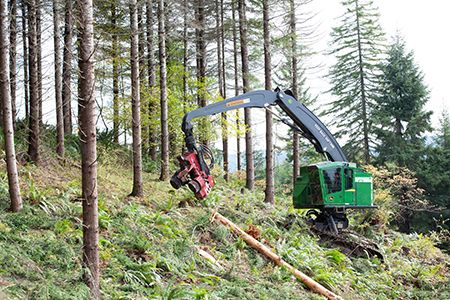

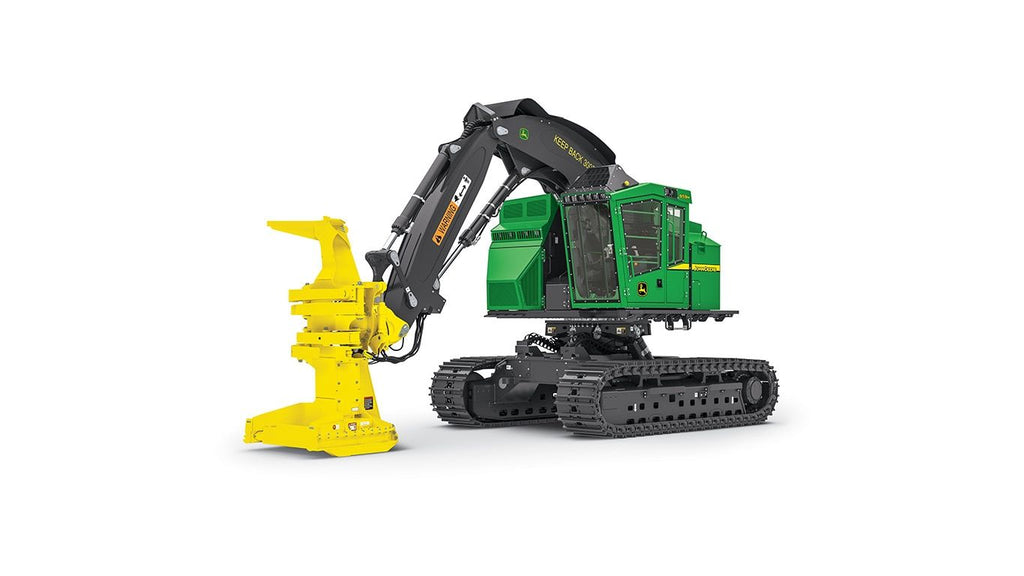

The John Deere 859M Tracked Feller Buncher delivers powerful 286 hp performance for demanding forestry applications. Its robust undercarriage and optional leveling system provide exceptional stability on steep slopes, while the spacious cab with electrohydraulic controls ensures operator comfort during long shifts.

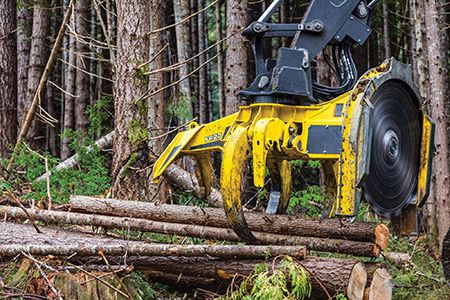

Compatible with a wide range of John Deere felling heads, including the high-capacity FR27, this machine is optimized for efficient, high-production timber harvesting. Integrated JDLink connectivity and Precision Forestry solutions offer real-time monitoring and diagnostics to maximize uptime and productivity.

Key Features

Brand John Deere
Model 859M
Product Type Tracked Feller Buncher
Engine Manufacturer John Deere
Engine Model PowerTech PSS 9.0L
Rated Speed 2000 rpm
Engine Output 286 hp (213 kW)
Engine Output - Net 286 hp (213 kW)
Engine Torque 937 lbf/ft (1270 Nm)
Carrier Rollers - Each Side 2
Track Rollers - Each Side 9
Track Shoe Width 24 in (600 mm)
Base Carrier Length 16 ft 1 in (4.9 m)
Height Over Cab 12 ft 10 in (3920 mm)
Overall Width 10 ft 11 in (3300 mm)
Tail Overhang - Over Side 11 in (290 mm)
Track Length On Ground 12 ft 7 in (3830 mm)
Tailswing Radius 6 ft 4 in (1940 mm)
Ground Clearance 29 in (746 mm)
Superstructure Width 10 ft 4 in (3150 mm)
Track Gauge 8 ft 11 in (2720 mm)
Cab Leveling Tilt (Forward) 26 Degrees
Cab Leveling Tilt (Rear) 7 Degrees
Cab Leveling Tilt (Side) ±14 Degrees
Fuel Tank 230 gal (US) (870 L)
Hydraulic Tank 32 gal (US) (122 L)
Alternator Output 200 Amp
Travel Speed 2.3 mph (3.7 kph)
Tractive Force 83,854 lbf (373 kN)
Lift Capacity - Maximum Reach 12,220 lb (5540 kg)
Reference Harvesting Head FS22B
Felling Diameter 22 in (559 mm)
Reference Head Saw Type Disc
Reference Head Type Felling
Cutting Radius - Maximum 27 ft 10 in (8490 mm)
Cutting Radius - Minimum 12 ft 7 in (3830 mm)
Cutting Swath Horizontal 15 ft 3 in (4660 mm)
System Voltage 24 V
Pump Type Variable Displacement Axial Piston
Pump Flow 131 gal (US)/min (494 L/min)
Operating Weight 79,510 lb (36,060 kg)

Highlights

  • 286 hp John Deere PowerTech PSS 9.0L engine
  • Optional cab leveling system with up to 26-degree forward tilt

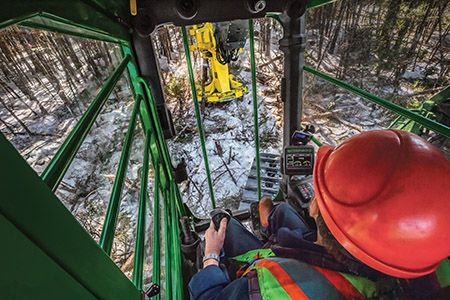

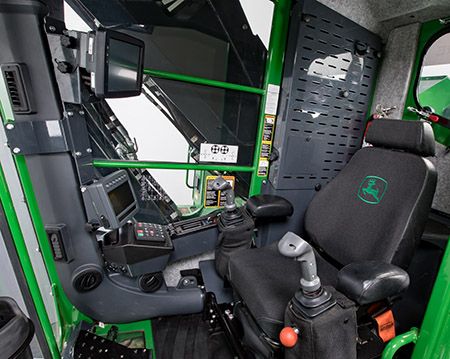

  • Spacious operator station with electrohydraulic controls
  • JDLink connectivity with remote diagnostics and monitoring
  • Compatible with a full range of John Deere disk saw felling heads

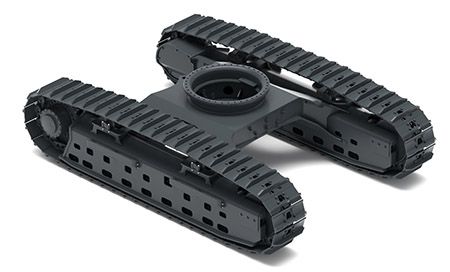

  • Long, wide undercarriage for stability and tractive effort

What's included

  • John Deere 859M Tracked Feller Buncher base carrier
  • Factory-installed felling head (model as configured)
  • JDLink telematics system (activated)
  • Operator's manual and documentation

Frequently asked questions

What type of felling heads are compatible with the John Deere 859M?

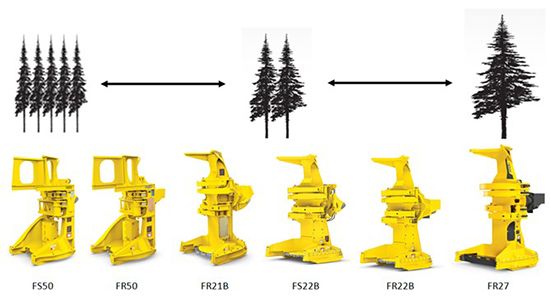

The 859M is compatible with a wide range of John Deere disk saw felling heads, including the FS50, FR50, FR21B, FS22B, FR22B, and the high-capacity FR27. These heads are optimized for John Deere carriers and are factory-installed.

Does the 859M have a leveling system for steep slopes?

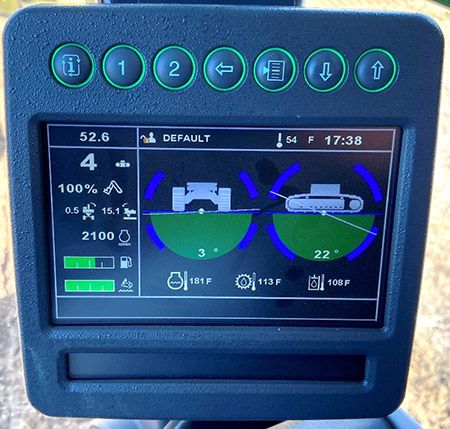

Yes, the 859M features an optional leveling system that tilts up to 26 degrees forward, 7 degrees rearward, and ±14 degrees sideways. This keeps the center of gravity over the tracks for exceptional stability on steep terrain.

What technology is included for machine monitoring and diagnostics?

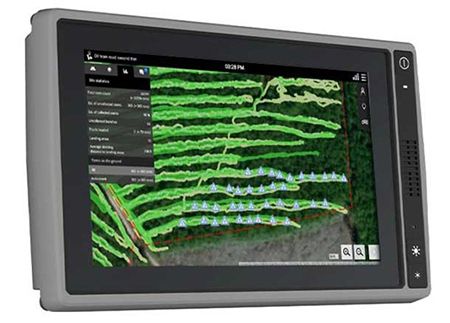

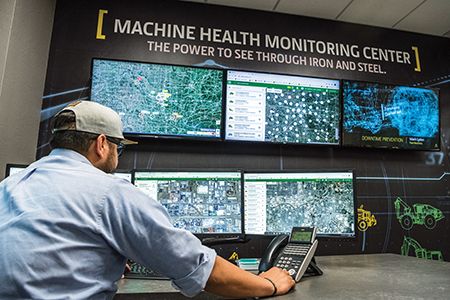

The 859M comes standard with the JDLink telematics system, which enables remote monitoring of machine location, fuel level, utilization, and more. It also supports John Deere Connected Support for remote diagnostics and integrates with TimberMatic Maps and TimberManager for enhanced jobsite visibility and production management.

What is the operating weight and engine power of the 859M?

The John Deere 859M has an operating weight of 79,510 lb (36,060 kg) and is powered by a John Deere PowerTech PSS 9.0L engine that delivers 286 net horsepower (213 kW).
