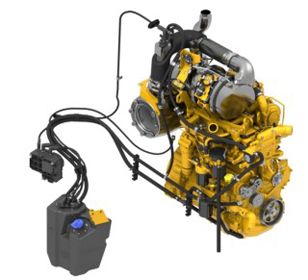

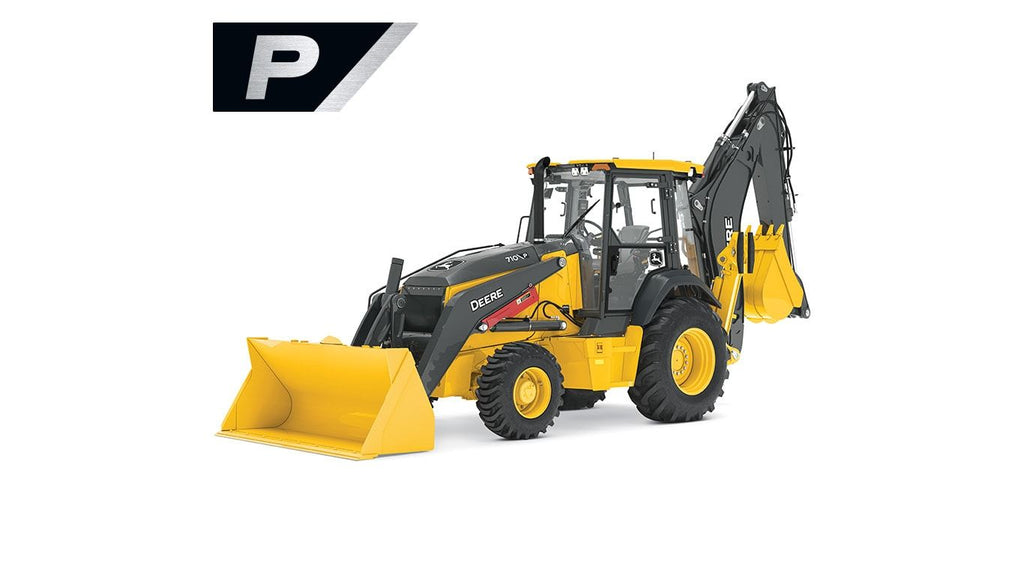

The John Deere 710 P-Tier Backhoe is engineered for exceptional performance and reliability on demanding job sites. Powered by a 4.5L PowerTech™ Plus engine delivering 148 net peak horsepower, it features a pressure-compensated, load-sensing hydraulic system for superior multifunctioning and smooth control.

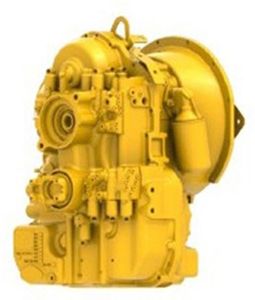

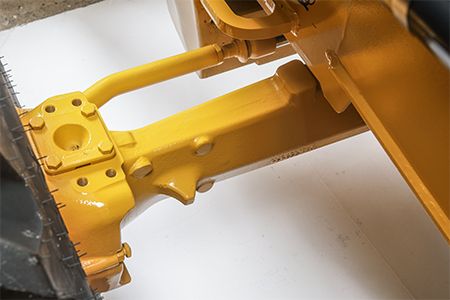

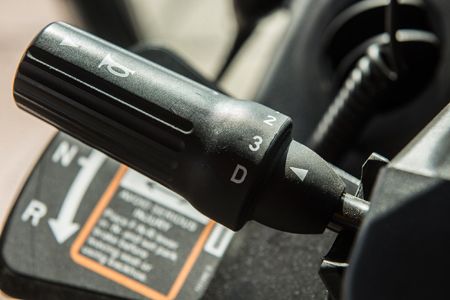

This machine combines a durable PowerShift™ transmission with autoshift capability and a mechanical front-wheel-drive system with a limited-slip differential, ensuring confident operation in wet and muddy conditions. An economy mode and precision mode allow operators to optimize fuel efficiency and control for a variety of applications.

Key Features

Engine Manufacturer John Deere
Engine Model PowerTech Plus 4045HT084
Displacement 276 cu in (4.5 L)
Rated Speed 2240 rpm
Engine Output - Net 148 hp (110 kW)
Transmission Type Power Shift
Service Brake Type Wet Disc
Service Brake Actuation Hydraulic
Max Length with Std. Stick 27 ft 8 in (8420 mm)
Height over Std Stick 13 ft 10 in (4230 mm)
Width over Tires 7 ft 9 in (2370 mm)
Wheelbase - 4WD 8 ft 4 in (2550 mm)
Ground Clearance 12 in (306 mm)
Width - General Purpose Bucket 8 ft 1 in (2464 mm)
Bucket Rotation - Position 1 190 Degrees
Bucket Pin Height - General Purpose 12 ft 3 in (3730 mm)
Dump Height - General Purpose 9 ft 3 in (2810 mm)
Dump Reach - General Purpose 35 in (890 mm)
Digging Depth - General Purpose 6.2 in (157 mm)
Fuel Tank 46 gal (174.1 L)
Hydraulic Tank 13.2 gal (50.1 L)
Bucket Capacity - Standard General Purpose 1.89 yd³ (1.45 m³)
Bucket Tearout - Non-Extending Dipper 17,527 lbf (78 kN)
Stick Tearout 11,981 lbf (53.3 kN)
Boom Lift - Maximum Reach - Non-Extending Dipper 4,791 lbs (2173 kg)
Bucket Breakout - General Purpose 15,831 lbf (70.4 kN)
Lift To Full Height - General Purpose Bucket 9,871 lbs (4477 kg)
Pump Load Sensing Axial Piston Pump
Operating Weight 26,422 lbs (11,985 kg)

Highlights

  • Net Peak Power: 110 kW (148 hp) at 2,240 rpm
  • Max. Standard Dipperstick Digging Depth: 5.27 m (17 ft. 3 in.)
  • Operating Weight: 11 985 kg (26,422 lb.)

What's included

  • John Deere 710 P-Tier Backhoe

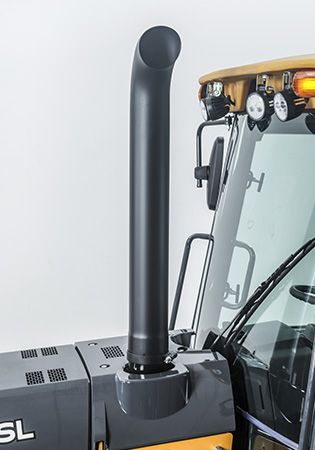

  • Standard black exhaust extension
  • Operator manual

Frequently asked questions

What is the net peak power of the John Deere 710 P-Tier Backhoe?

The John Deere 710 P-Tier Backhoe has a net peak power of 148 hp (110 kW) at 2,240 rpm.

What type of hydraulic system does the 710 P-Tier use?

It uses a pressure-compensated, load-sensing (PCLS) hydraulic system, which provides better multifunctioning, smoother control, and up to 15 percent greater craning capacity with Lift Mode.

Does the 710 P-Tier have an autoshift transmission?

Yes, the autoshift feature is included in the base configuration. It automatically shifts the PowerShift™ transmission to the appropriate gear based on engine rpm and ground speed.

What is the maximum standard digging depth of this backhoe?

The maximum standard dipperstick digging depth is 17 ft. 3 in. (5.27 m).
