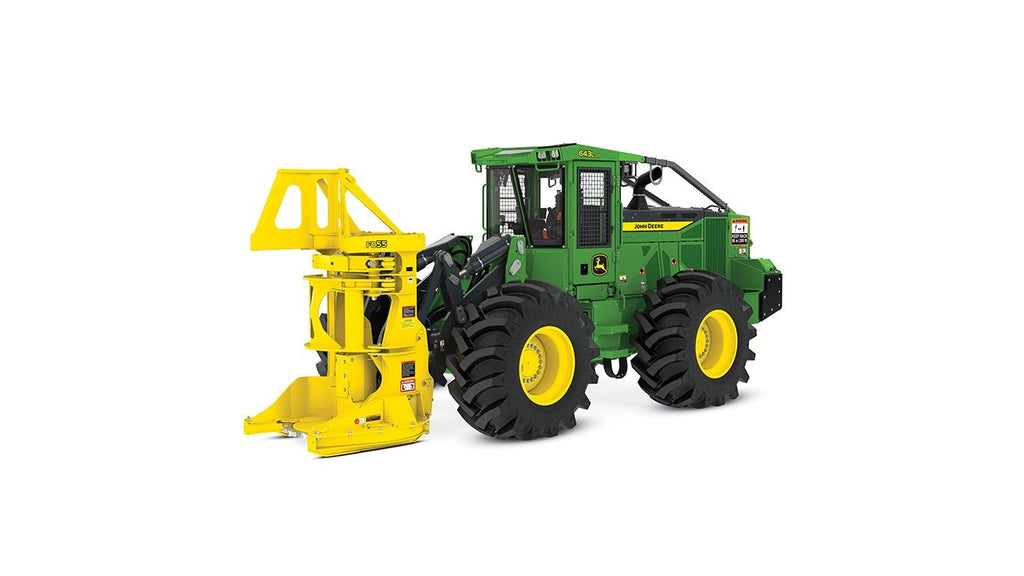

John Deere 643L-III Wheeled Feller Buncher 219 hp 36,120 lb Operating Weight

$0.00 USD

John Deere 643L-III Wheeled Feller Buncher 219 hp 36,120 lb Operating Weight

Name: John Deere 643L-III Wheeled Feller Buncher 219 hp 36,120 lb Operating Weight
SKU: BP-7658-JOH-JOH-DEF
Availability: InStock

$0.00 USD

The John Deere 643L-III Wheeled Feller Buncher delivers robust 219 hp performance for demanding forestry applications. Its articulated frame steering and hydrostatic-mechanical transmission provide exceptional maneuverability and control across varied terrain.

Choose from three factory-installed felling heads to match your specific timber size and harvesting conditions. The premium cab option enhances operator comfort with auto climate control, dual camera views, and a heated and vented leather seat for all-day productivity.

Key Features

Engine Manufacturer	John Deere
Engine Model	PowerTech PSS 6.8L
Displacement	415 in³
Rated Speed	1900 rpm
Engine Output	219 hp
Engine Torque	680 lbf/ft
Number Of Speeds - Forward	2
Number Of Speeds - Reverse	2
Transmission	Hydrostatic-Mechanical
Steering	Articulated frame
Planetaries	Inboard
Standard Tire Size Front	28 L x 26
Service Brake Type	Wet Disc - Inboard
Parking Brake Type	Spring on / hydraulic release
Overall Length	20 ft 8 in
Height Over Cab	10 ft 7 in
Width	9 ft 7 in
Wheelbase	9 ft 11 in
Ground Clearance	19 in
Steering Articulation Angle	±45°
Fuel Tank	104.6 gal (US)
Hydraulic Tank	44.7 gal (US)
Alternator Capacity	150 Amp
Travel Speed	10.8 mph
Oscillation Point	Front Axle
Oscillation Angle	±15°
System Voltage	24 V
Pump	Axial piston
Operating Weight	36,120 lb

Highlights

219 hp John Deere PowerTech PSS 6.8L engine with 680 lbf/ft of torque
Hydrostatic-mechanical transmission with articulated frame steering
Three felling head options: FD45, FD55, and FD22B
JDLink™ telematics with remote diagnostics and monitoring
Premium cab available with auto climate control and dual cameras
Ground-level daily service access with swing-out coolers

Frequently asked questions

What felling heads are available for the 643L-III?

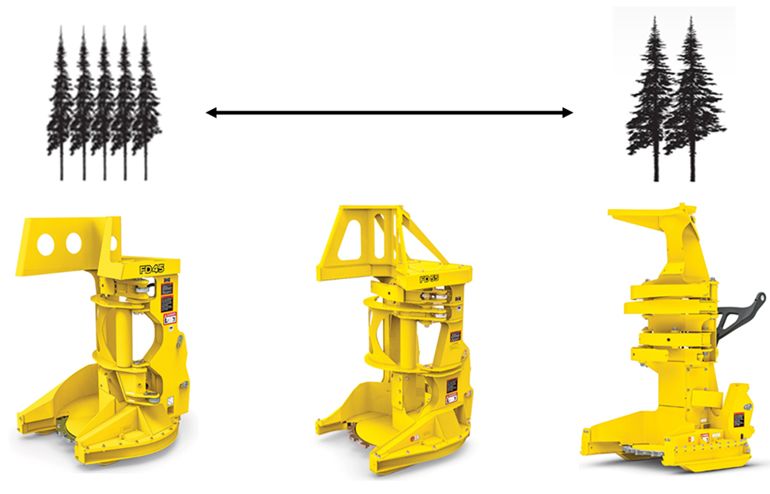

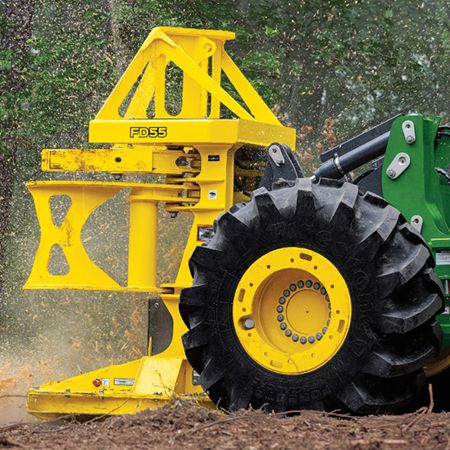

Three factory-installed heads are available: the twin-post FD45 and FD55 for high-accumulation thinning and plantation harvests, and the single-post FD22B for large timber in clear-cutting applications.

What telematics system comes with the machine?

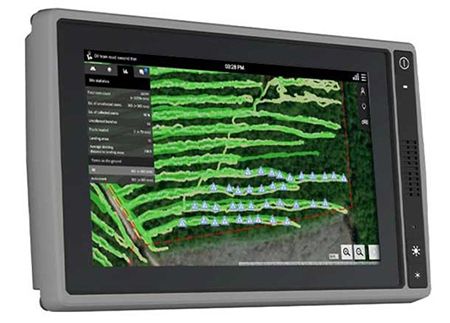

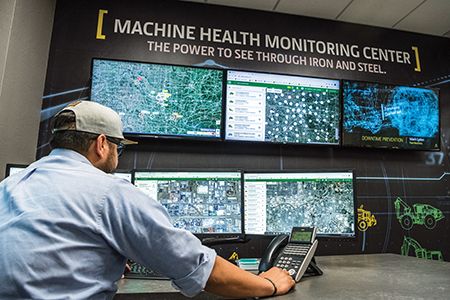

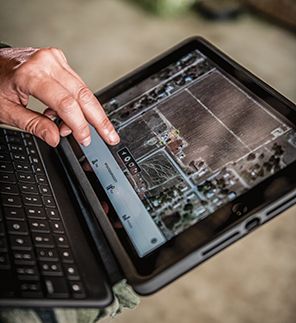

The JDLink™ telematic system is included as standard, enabling remote monitoring of location, fuel level, utilization, and more through John Deere’s Precision Forestry solutions.

What comfort features does the premium cab offer?

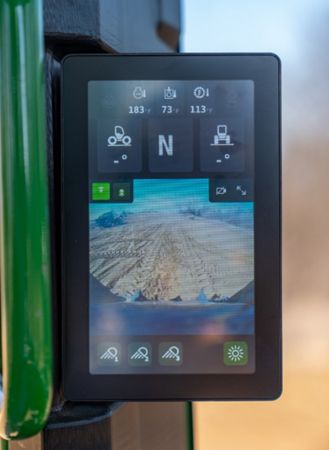

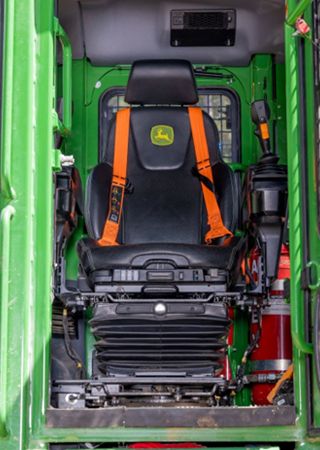

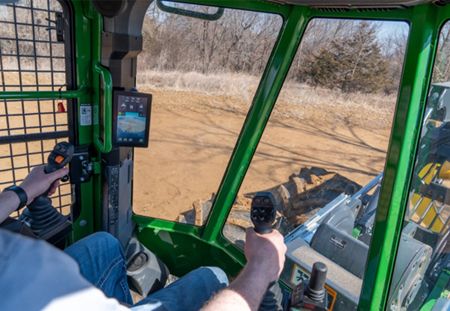

The premium cab includes automatic climate control, a 7-inch secondary display, blade-view and tong-view cameras, a heated and vented leather seat with multiple adjustments, and a RAM® mount cell phone holder.

How is daily maintenance accessed on the 643L-III?

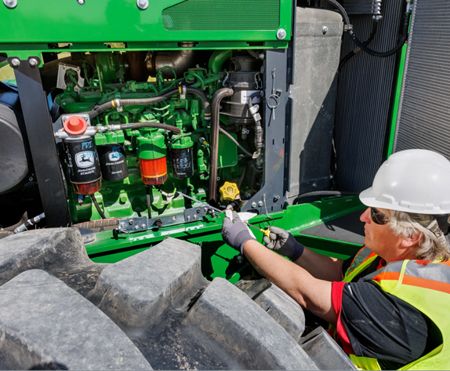

Daily service points including fuel, DEF, and hydraulic oil fills are accessible from ground level. Removable engine panels and swing-out cooler doors provide wide-open access to filters and fluid checks.
