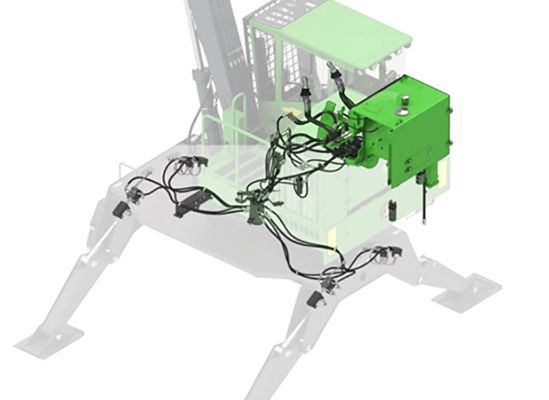

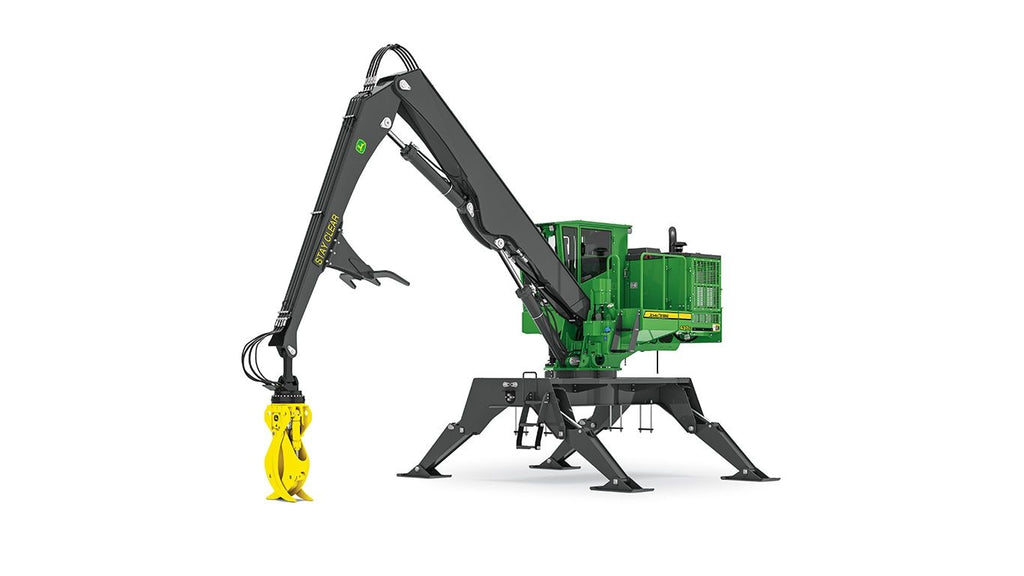

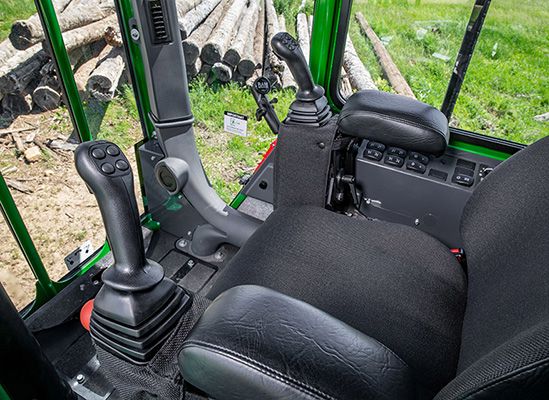

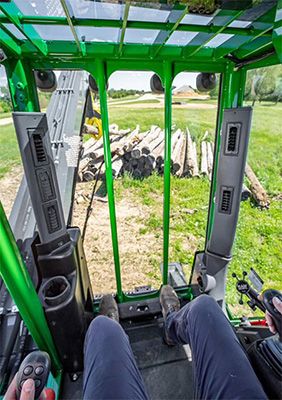

The John Deere 437E Knuckleboom Loader combines a spacious, redesigned cab with a lower hood profile to deliver exceptional visibility and all-day operator comfort. A pressure-compensated load-sensing hydraulic system provides power on demand for strong delimbing and loading performance while minimizing fuel consumption.

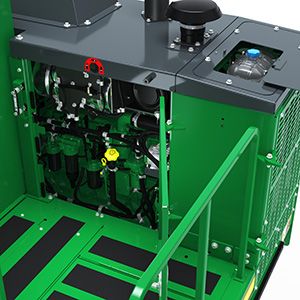

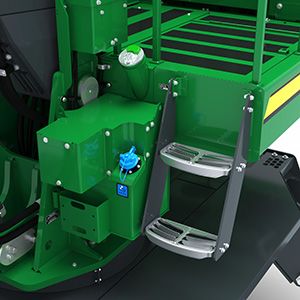

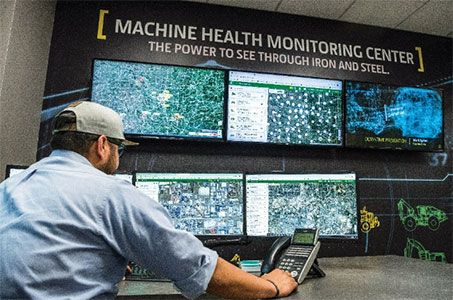

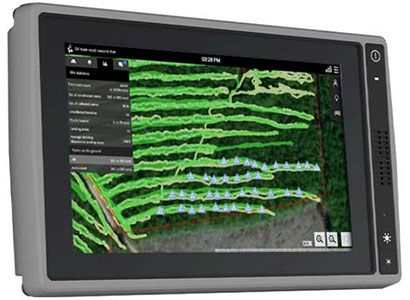

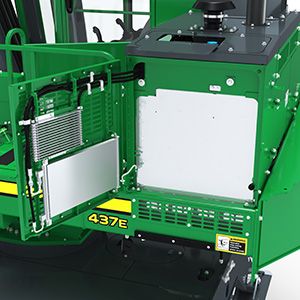

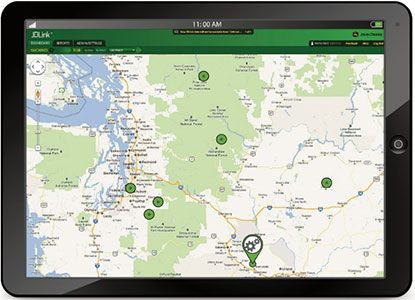

Stay connected and productive with standard JDLink telematics, enabling remote diagnostics, machine health monitoring, and real-time production data through Precision Forestry solutions. Daily service points are easily accessed from the operator’s platform, and swing-out cooler doors plus ground-level hydraulic drains make maintenance fast and straightforward.

Key Features

Engine Manufacturer John Deere
Engine Model 6068 HTJ57 PowerTech PVS
Displacement 415 cu in (6.8 L)
Rated Speed 2000 rpm
Engine Output - Net 159 hp (119 kW)
Engine Output - Gross 173 hp (129 kW)
Engine Torque 553.1 lbf/ft (750 Nm)
Torque Rise 21%
Base Carrier Length 12 ft 6 in (3.81 m)
Height Over Cab 13 ft 6 in (4112 mm)
Stabilizer Footprint Length 12 ft 6 in (3.81 m)
Superstructure Width 8 ft 7 in (2606 mm)
Boom Horizontal Reach 32 ft (9.754 m)
Slewing Angle 360 Degrees
Fuel Tank 90 gal (340 L)
Hydraulic Tank 40 gal (151 L)
Alternator Output 200 Amp
Slew Speed 10 rpm
5ft lift @ 10ft radius 13,625 lb (6180 kg)
5ft lift @ 15ft radius 25,860 lb (11730 kg)
5ft lift @ 20ft radius 19,158 lb (8690 kg)
5ft lift @ 25ft radius 15,322 lb (6950 kg)
5ft lift @ 30ft radius 12,280 lb (5570 kg)
10ft lift @ 10ft radius 19,798 lb (8980 kg)
10ft lift @ 15ft radius 23,149 lb (10500 kg)
10ft lift @ 20ft radius 17,990 lb (8160 kg)
10ft lift @ 25ft radius 14,947 lb (6780 kg)
10ft lift @ 30ft radius 12,588 lb (5710 kg)
System Voltage 12 V
Pump Axial Piston
Operating Weight 35,073 lb (15909 kg)

Highlights

  • Gross Rated Power: 129 kW (173 hp) at 2,000 rpm
  • Boom Reach: 9754 mm (32 ft. 0 in.)
  • Operating Weight: 15 909 kg (35,073 lb.)
  • Lift Capacity: 11 730 kg (25,860 lb.)

Frequently asked questions

What is the gross engine power of the John Deere 437E Knuckleboom Loader?

The gross rated power is 173 hp (129 kW) at 2,000 rpm.

What is the maximum boom reach of the 437E?

The boom horizontal reach is 32 ft (9.754 m).

What telematics system comes standard on the 437E?

The JDLink telematics system is included in the base machine, providing the foundation for John Deere Precision Forestry solutions.

What is the operating weight of the 437E Knuckleboom Loader?

The operating weight is 35,073 lb (15,909 kg).
