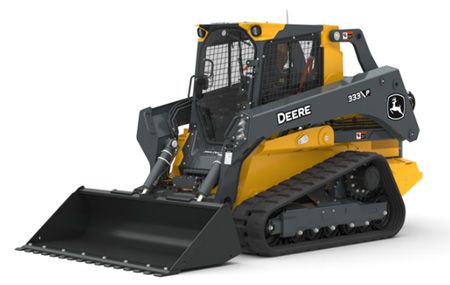

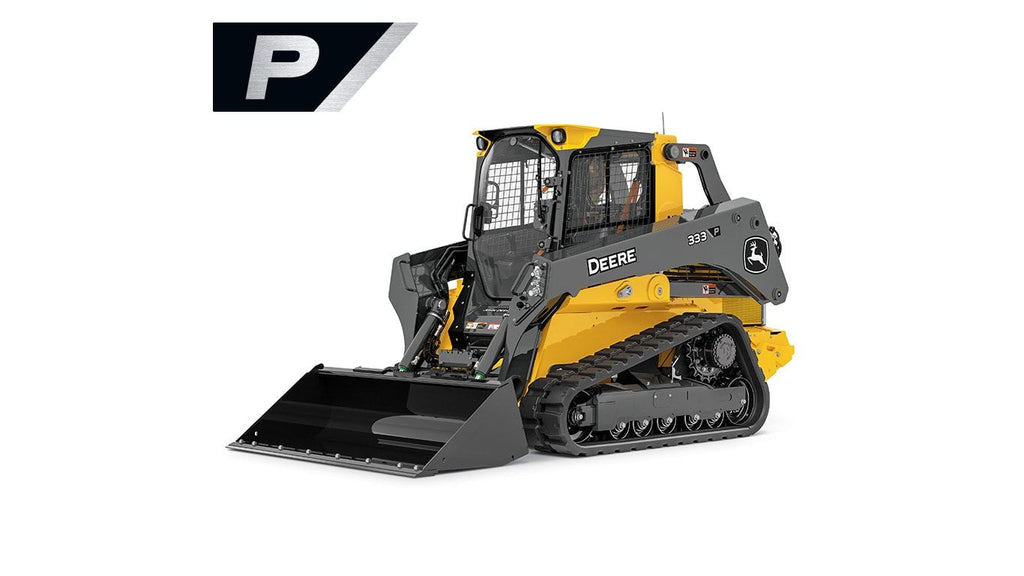

The John Deere 333 P-Tier Compact Track Loader delivers a substantial 108 gross horsepower, an 8% increase over its predecessor, empowering operators in site development, vegetation management, and roadbuilding to tackle the most demanding tasks with confidence. A new pressure-compensated load sensing hydraulic system enhances multifunctioning and provides up to 15% better fuel economy, while increased fuel and DEF tank capacities support a full day's work in the toughest applications.

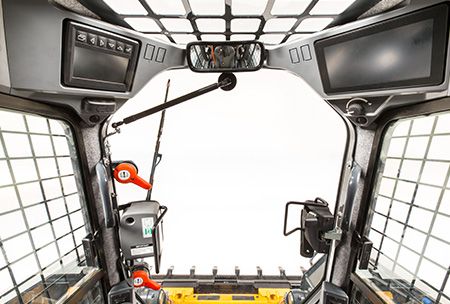

Operator experience is transformed by a completely redesigned, larger, and pressurized cab that increases visibility by 20% and reduces noise. Available technology solutions, including SmartGrade™ 3D grade control, Surround View camera system, and an intuitive touchscreen display with Attachment Manager, ensure superior accuracy, safety, and efficiency on every job.

Key Features

Lift Geometry Vertical
Engine Manufacturer Yanmar
Engine Model 4TNV94FHT
Aspiration Turbo. Intercooled
Displacement 186.3 in³
Rated Speed 2500 rpm
Engine Output - Net 105.8 hp
Engine Output - Gross 108.5 hp
Torque 290.6 lbf/ft
Track Shoe Width 17.7 in
Length - No Bucket 125 in
Length - With Bucket 151.2 in
Width - No Bucket 78.9 in
Height - Top Of Cab 86.7 in
Ground Clearance 9.8 in
Rear Departure Angle 30 Degrees
Height to Hinge Pin 132 in
Dump Angle 48 Degrees
Dump Height - Maximum 106.1 in
Rollback - Ground Level 35 Degrees
Fuel Tank 36 gal (US)
Tipping Load 11,000 lbs
Ground Bearing Pressure 4.8 psi
Speed - Maximum 8.5 mph
Breakout - Lift 8,500 lbf
Breakout - Bucket 13,750 lbf
Hydraulic Power 51.1 hp
Hydraulic Power - Option 89.9 hp
Pump Flow 25 gal (US)/min
Pump Flow - Option 44 gal (US)/min
System Pressure 3,500 psi
Operating Weight 12,183 lbs

Highlights

  • 108.5 gross hp Yanmar turbo-intercooled diesel engine
  • Pressure-compensated load sensing hydraulics for improved multifunctioning and fuel economy

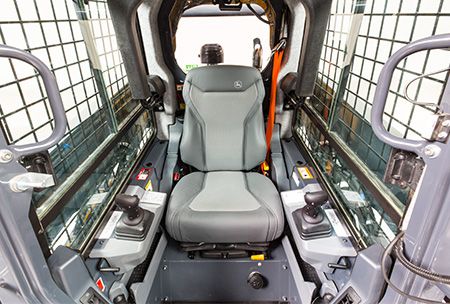

  • Completely redesigned, larger, sealed and pressurized cab with 20% more visibility
  • Optional SmartGrade™ 3D grade control, Surround View camera, and touchscreen display

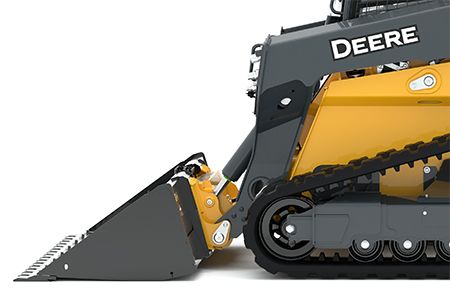

  • Redesigned Quik-Tatch coupler with straight flag pin design for greater durability
  • Optional heated and ventilated seat and hands-free Bluetooth calling

Compatibility

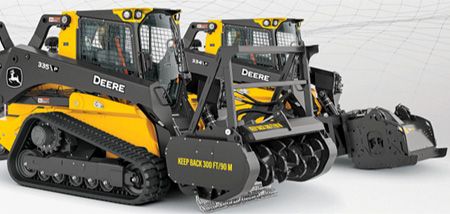

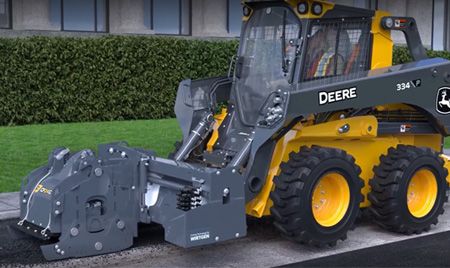

Attachments continue to gain in popularity, especially those that require additional hydraulic flow and pressure. John Deere has built new machines to run these attachments more efficiently and is adding attachments to the lineup that are suited for the large frame P-Tier machines.

Frequently asked questions

What is the horsepower of the John Deere 333 P-Tier?

The 333 P-Tier has a gross engine output of 108.5 hp (80.9 kW), which is an 8% increase over the previous 333 G-Tier model.

What grade control options are available for this machine?

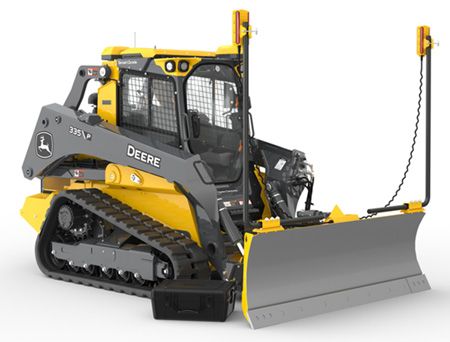

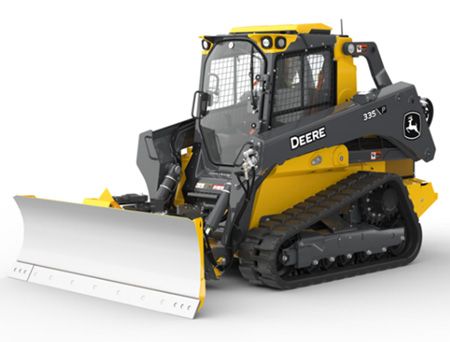

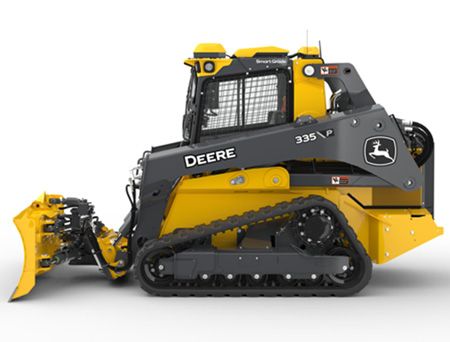

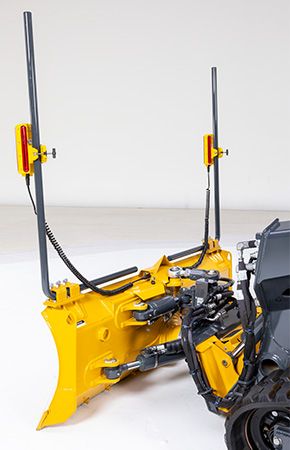

The 333 P-Tier can be equipped with SmartGrade™, a fully integrated 3D grade control solution, as well as SmartGrade™ Ready with Slope Control and 2D Laser Slope Control for various grading needs.

What type of hydraulic system does the 333 P-Tier use?

It features a new pressure compensated load sensing (PCLS) hydraulic system that provides better multifunctioning, smoother machine control, and up to 15% better fuel economy compared to the previous open-center system.

What is the operating weight of the 333 P-Tier Compact Track Loader?

The operating weight of the John Deere 333 P-Tier is 12,183 lbs (5,531 kg).
