John Deere 1510G Forwarder 220 hp 15-Ton Load Capacity

John Deere 1510G Forwarder 220 hp 15-Ton Load Capacity

$0.00 USD
$0.00 USD

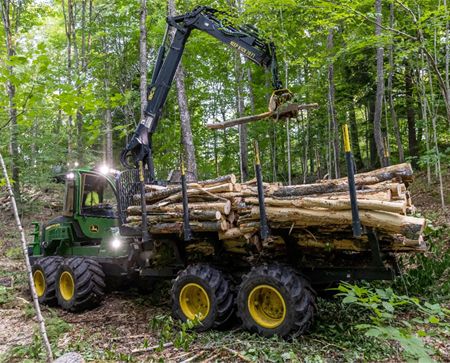

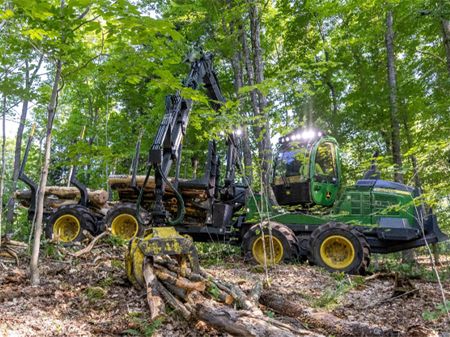

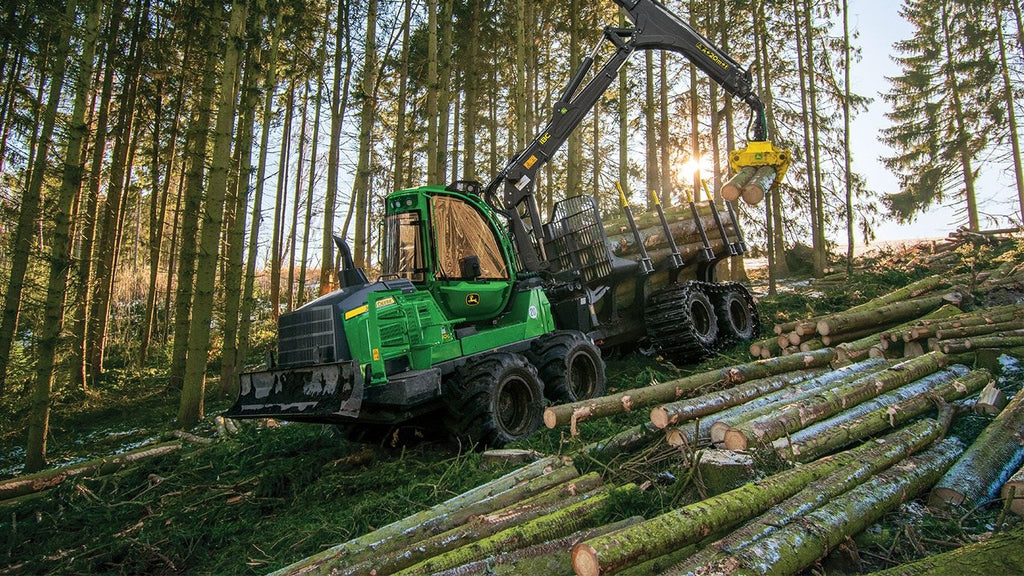

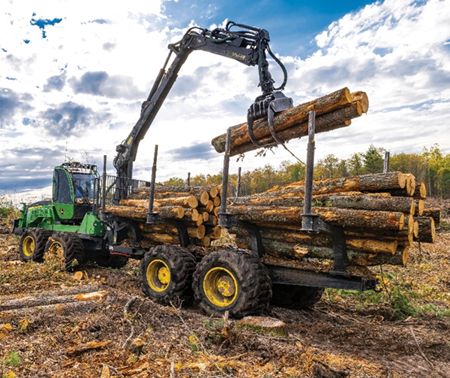

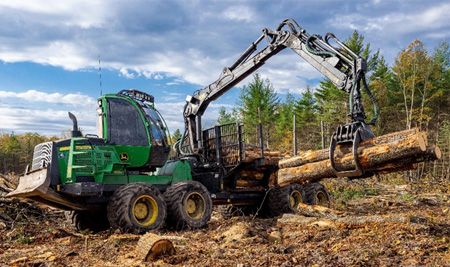

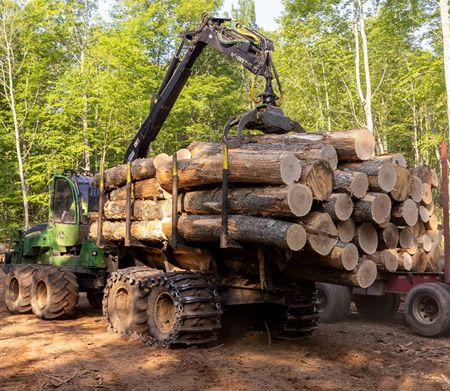

The John Deere 1510G Forwarder combines a 220 hp PowerTech Plus engine with an 8.5 m or 10 m boom reach to move timber efficiently through dense woodland. Its increased slewing angle and Intelligent Boom Control let operators guide the grapple with a single lever, making every cycle smoother and more precise. The long-bogie Duraxle axles and portal construction deliver high ground clearance, lower ground pressure, and solid side-to-side stability on slopes. A 290ยฐ rotating, auto-leveling cab keeps the operator upright and provides unobstructed 360ยฐ visibility of the boom tip and surrounding jobsite.

Key Features

Brand John Deere
Model 1510G
Product Type Forwarder
Engine Manufacturer John Deere
Engine Model PowerTech Plus 6068
Displacement 414.9 inยณ
Engine Output 220 hp
Engine Torque 721 lbf/ft
Drive Configuration 8 x 8
Transmission Hydrostatic-Mechanical
Standard Tire Size Front 26.5 - 20
Standard Tire Size Rear 26.5 - 20
Base Carrier Length 386.4 in
Transport Height 150 in
Width 116.4 in
Wheelbase 193.2 in
Ground Clearance 26 in
Width - Fixed Bunk 116.4 in
Horizontal Reach 23 ft 7 in
Load Length 177.6 in
Fuel Tank 44 gal (US)
Hydraulic Tank 43 gal (US)
Alternator Output 150 Amp
Lifting Moment - Standard Crane 92 lbf/ft
Load Capacity 16.534 tons (short)
Travel Speed 14.3 mph
Tractive Force 41588 lbf
System Voltage 24 V
Pump Capacity 11 inยณ
Operating Weight 40190 lbs

Highlights

  • Net Power: 164 kW (220 hp) at 1,700โ€“1,900 rpm
  • Boom Reach: 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
  • Tractive Force: 185 kN (41,588 lbf.)
  • Load Rating: 15 000 kg (33,069 lb.)

Compatibility

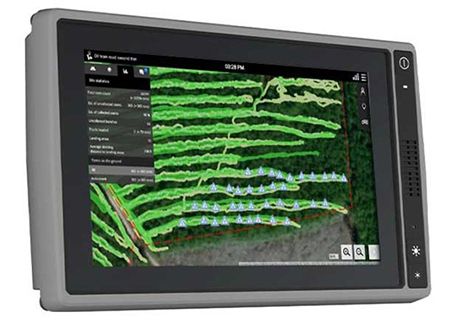

The 1510G Forwarder is compatible with John Deere Precision Forestry solutions including JDLink, TimberMatic Maps, and TimberManager. It supports standard 26.5-20 tires and is designed for professional cut-to-length logging operations.

What's included

  • John Deere 1510G Forwarder base machine

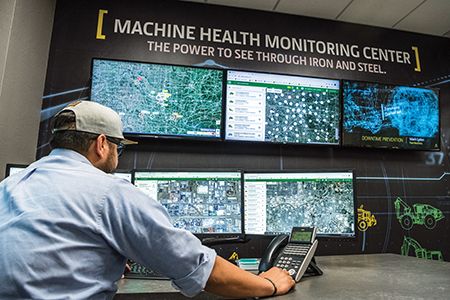

  • JDLink telematics system (included in base)
  • Operator manual and documentation

Frequently asked questions

What is the engine output of the John Deere 1510G Forwarder?

The 1510G is powered by a John Deere PowerTech Plus 6068 engine that delivers 164 kW (220 hp) at 1,700โ€“1,900 rpm.

How does Intelligent Boom Control (IBC) improve operation?

IBC lets the operator guide the boom tip with a single lever command instead of controlling each joint independently. The system automatically coordinates boom and cylinder movements, adjusts swing speed based on head position, and maintains consistent boom speed for more precise and efficient loading.

What is the load capacity of the 1510G Forwarder?

The 1510G has a load rating of 15,000 kg (16.534 short tons) and a standard crane lifting moment of 125 kNm (92 lbf/ft).

What features help the 1510G perform on soft or uneven ground?

The long-bogie configuration and Duraxle heavy-duty bogie axles reduce ground pressure and improve side-to-side stability. The portal axle design increases ground clearance to 660 mm (26 in), and the 8x8 drive with 185 kN (41,588 lbf) of tractive force helps maintain traction in difficult conditions.
