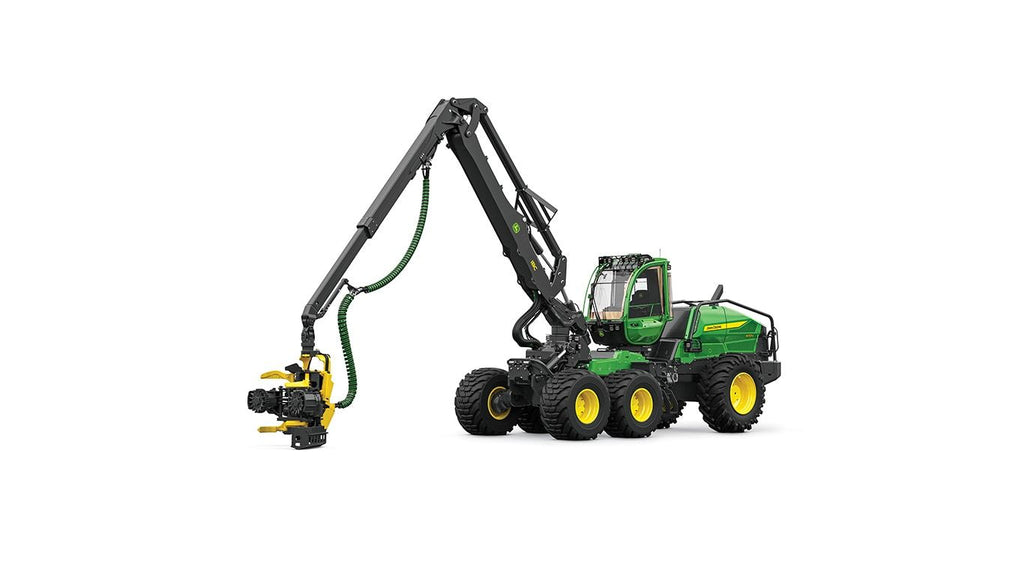

John Deere 1470H Wheeled Harvester 220 kW 295 hp

$0.00 USD

John Deere 1470H Wheeled Harvester 220 kW 295 hp

Name: John Deere 1470H Wheeled Harvester 220 kW 295 hp
SKU: BP-6773-JOH-JOH-DEF
Availability: InStock

$0.00 USD

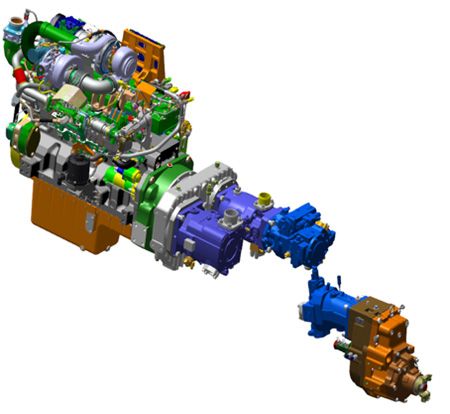

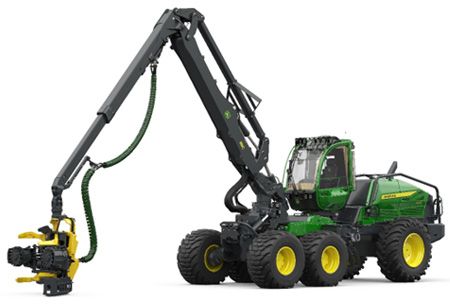

The John Deere 1470H Wheeled Harvester delivers 220 kW (295 hp) of net power for demanding forestry applications. A three-pump hydraulic system provides dedicated flow to the harvester head, boom, and drive, enabling simultaneous operation and a 15% increase in hydraulic power over previous models. The H9 boom offers greater lift and slew torque, with reach options up to 11.0 m (38.4 ft.) for handling larger timber with ease.

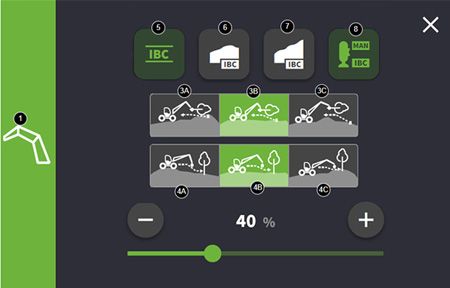

Operator comfort and control are enhanced by a cab that rotates 220 degrees with automatic leveling, while Intelligent Boom Control 3.0 allows precise, intuitive boom tip direction. The available active frame lock system increases stability when driving and slewing on challenging terrain. Centralized service points, ground-level fluid fill, and an engine oil sensor simplify daily maintenance to maximize uptime.

Key Features

Crane Model	H9
Engine Manufacturer	John Deere
Engine Model	6090
Displacement	549 in³
Engine Output	295 hp
Engine Torque	1065 lbf/ft
Drive Configuration	6 x 6
Transmission Type	Hydrostatic-Mechanical
Base Carrier Length	468 in
Transport Height	156 in
Overall Width	121.2 in
Wheelbase	172.8 in
Ground Clearance	28.5 in
Horizontal Reach	28 ft 2 in / 32.8 ft / 38.4 ft
Fuel Tank	123 gal (US)
Hydraulic Tank	80 gal (US)
Reference Harvesting Head	H425
Felling Diameter	29.5 in
Operating Weight	54895 lbs
Net Power	295 hp
Boom Reach	28.2 ft / 32.8 ft / 38.4 ft
Operator Station Rotation	220 degrees
Hydraulic System	Three-pump
Frame Lock	Passive standard, Active optional

Highlights

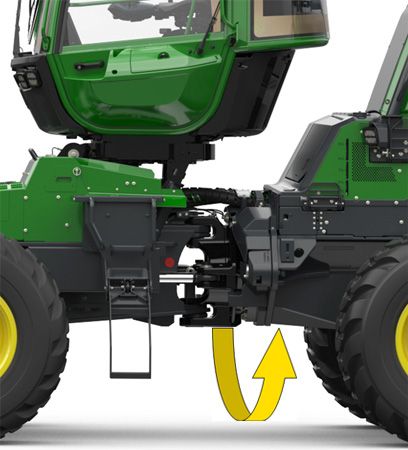

Frame Lock is a feature with the H-Series introduction; wheeled harvesters can be configured with active or passive frame lock. The passive system is engaged when the machine is stationary and disengaged when the machine is moving. The active frame lock system can be engaged while the machine is driving or operating. The hydraulic frame lock system increases operator confidence when driving and slewing or when stopped and slewing a large tree.

Passive frame lock comes standard on every H-Series wheeled harvester. This system is dependent on machine movement. When the machine is stationary, the frame lock is in the locked position, preventing oscillation between the two frames via hydraulic cylinders.

Active frame lock is an optional upgrade on wheeled harvesters. This system functions while the machine is moving or stopped. In active frame lock, the stabilizing force from the hydraulic cylinder is adjusted according to boom angle and lift cylinder pressure.

What's included

John Deere 1470H Wheeled Harvester base carrier
H9 boom
Operator's station with 220-degree rotation
Three-pump hydraulic system
Passive frame lock system
Reference H425 harvesting head

Frequently asked questions

What is the engine power of the John Deere 1470H?

The 1470H is powered by a John Deere 6090 engine producing 220 kW (295 hp) and 1445 Nm (1065 lbf/ft) of torque.

What boom options are available for the 1470H?

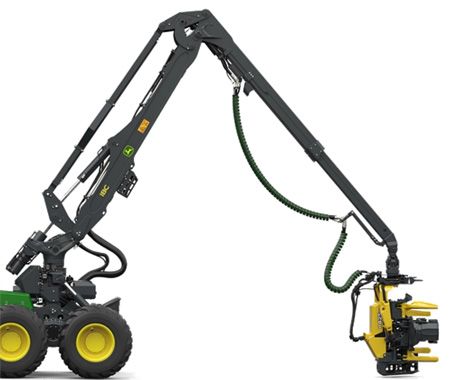

The 1470H features the new H9 boom, which provides increased lift and slew torque compared to the previous CH9 boom. It is available in reach lengths of 8.6 m (28.2 ft.), 10.0 m (32.8 ft.), and 11.0 m (38.4 ft.).

Does the 1470H have a rotating cab?

Yes, the operator's station rotates 220 degrees to follow the boom and harvester head slew, and it features automatic leveling when navigating slopes or obstacles.

What is the operating weight of the 1470H?

The operating weight of the John Deere 1470H Wheeled Harvester is 24,900 kg (54,895 lbs).
