John Deere 1070G Wheeled Harvester
$0.00 USD
Sale price
$0.00 USD
Regular price

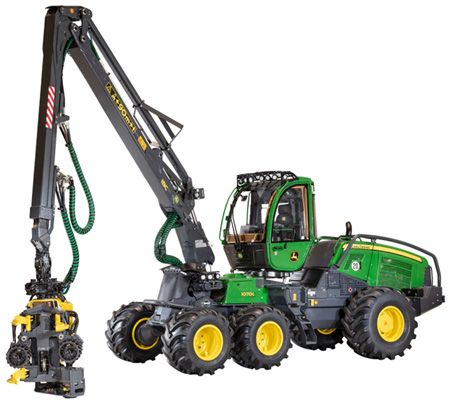

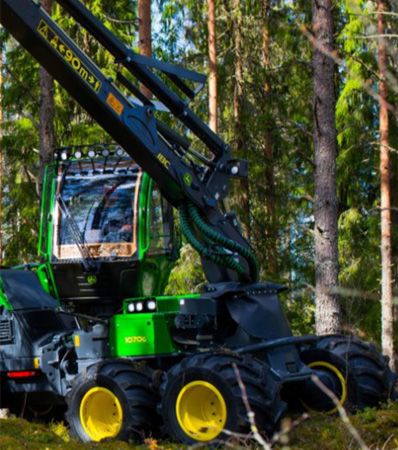

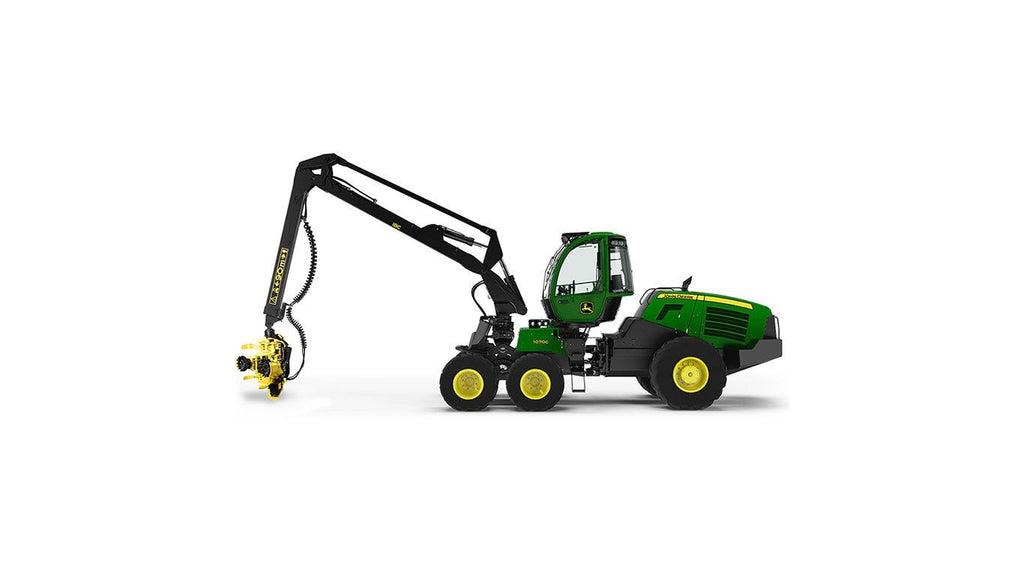

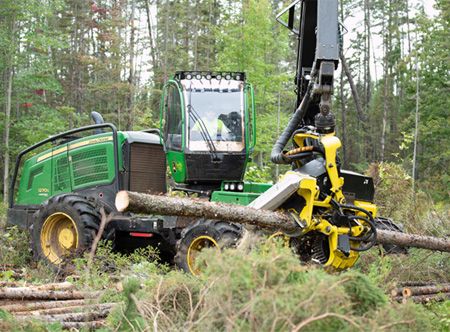

The John Deere 1070G Wheeled Harvester is a nimble and productive machine, purpose-built for early thinning operations. Its compact frame and high ground clearance allow it to maneuver easily in tight spaces, while the available six-wheel bogie configuration delivers exceptional tractive power.

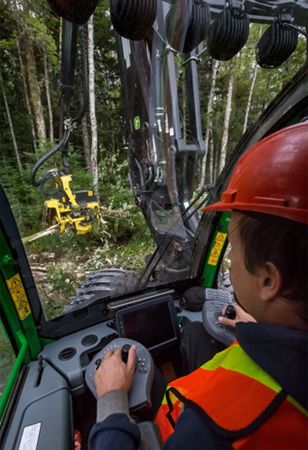

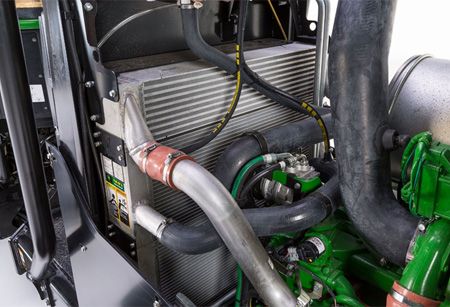

Powered by a 182-hp John Deere PowerTech Plus 6068 engine and equipped with Intelligent Boom Control, the 1070G offers precise, efficient boom movements that reduce operator fatigue. The rotating and leveling cab, along with scratch-resistant RENCRAFT® polycarbonate windows, provides a comfortable, quiet, and safe working environment with excellent visibility.
Key Features
| Brand | John Deere |
| Model | 1070G |
| Product Type | Wheeled Harvester |
| Crane Model | 180S |
| Engine Manufacturer | John Deere |
| Engine Model | PowerTech Plus 6068 |
| Displacement | 414 cu in (6.8 L) |
| Rated Speed | 2000 rpm |
| Engine Output | 182 hp (136 kW) |
| Engine Torque | 627 lb-ft (850 Nm) |
| Drive Configuration | 6 x 6 |
| Transmission Type | Hydrostatic-Mechanical |

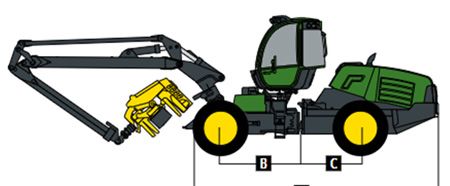

| Base Carrier Length | 275.2 in (6990 mm) |
| Height Over Cab | 146.9 in (3730 mm) |
| Transport Height | 146.9 in (3730 mm) |
| Overall Width | 104.9 in (2663 mm) |
| Wheelbase | 145.7 in (3700 mm) |
| Ground Clearance | 22.4 in (570 mm) |
| Horizontal Reach | 28 ft 2 in (8.6 m) |
| Fuel Tank | 79.3 gal (300 L) |
| Hydraulic Tank | 42.3 gal (160 L) |
| Number Of Alternators | 1 |
| Reference Harvesting Head | H412 |
| Felling Diameter | 18.5 in (470 mm) |
| Delimbing Diameter | 14.6 in (370 mm) |
| Travel Speed | 14.9 mph (24 kph) |
| System Voltage | 24 V |
| Pump Capacity | 9.7 cu in (160 cm³) |
| Operating Weight | 35274 lbs (16000 kg) |
Highlights
- Net Power: 136 kW (182 hp) at 1,600–2,000 rpm
- Pump Capacity: 160 cm3 (9.7 cu. in.)
- Boom Reach: 8.6 m (28.2 ft.) / 10 m (32.8 ft.) / 10.8 m (35.5 ft.)
What's included
- John Deere 1070G Wheeled Harvester base machine
- 180S Crane
- JDLink telematics system
