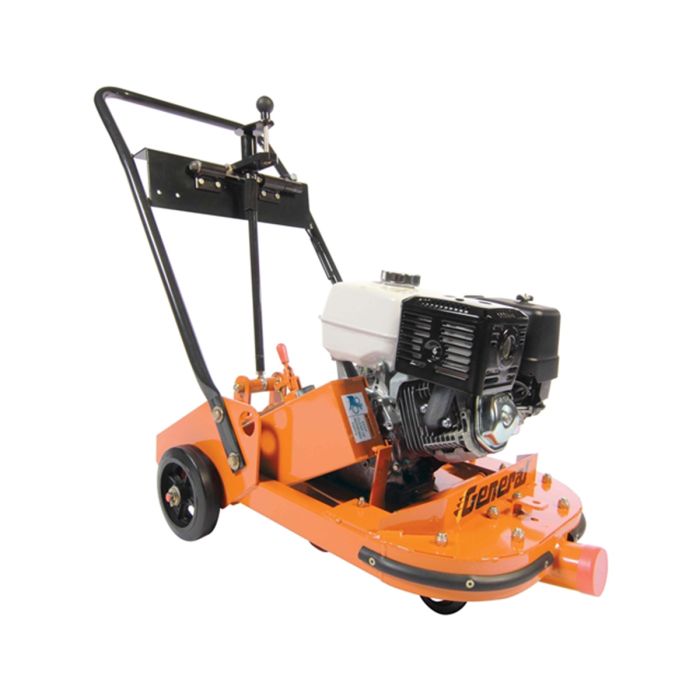

General Equipment CS8GH CrakChaser Random Crack Saw
General Equipment CS8GH CrakChaser Random Crack Saw
The CS8GH CrakChaser is engineered for precision, following and cutting irregular crack patterns in asphalt and concrete with standard 20.3 cm dry-cut diamond blades. Its center-mounted blade configuration allows the operator to pivot the machine around its own axis, providing natural maneuverability and excellent line visibility for following random cracks.
Powered by a 13.0 HP Honda GXV390 gasoline engine, this saw delivers smooth-sided cuts up to 3.8 cm deep, preparing surfaces for proper crack filling. An integral dust pan collects fines and directs them away from the operator, while features like the Quik-Pitch engagement system and Back-Saver blade depth control enhance efficiency and ease of use.
Key Features
| Brand | General Equipment |
| Model Number | CS8GH |
| Engine | 13.0 HP (9.2 kW) Honda GXV390, 4-stroke |
| Starter | Hand rewind |
| Fuel Type | Gasoline, unleaded, automotive grade |
| Frame Material | Unitized, welded steel plate |
| Blade Type | Dry-cut diamond blade |
| Blade Diameter | 8" (20.3 cm) |
| Maximum Blade Width | 1.3 cm |
| Maximum Cutting Depth | 3.8 cm |
| Drive System | V-belt reduction |
| Bearings | High capacity, twin row, ball-type |
| Arbor Shaft Diameter | 2.5 cm |
| Dust Port Connection | 7.6 cm diameter |
| Overall Length | 132.1 cm |
| Overall Width | 69.9 cm |
| Overall Height | 109.2 cm |
| Weight | 131.5 kg |
| Product Type | Random Crack Saw |
| Application | Asphalt and concrete crack cutting |
| Operation | Pull-behind |
Highlights
- Center-mounted blade configuration for superior maneuverability and natural pivoting action
- Quik-Pitch engagement system for rapid blade engagement
- Back-Saver fine pitch blade depth control for precise, ergonomic adjustments
- Integral dust pan collects high-volume fines and directs them away from the operator
- External bearing lubrication system for extended component life
- Optional water mist control system available for wet cutting applications
How to use
Operate the CS8GH by pulling it along the crack line, which provides excellent direct-line visibility compared to side-mounted saws. Adjust the cutting depth using the Back-Saver fine pitch control system. For dust management, connect a vacuum to the 7.6 cm dust port. An optional water mist system can be added for wet cutting to further suppress dust.
What's included
- General Equipment CS8GH CrakChaser Random Crack Saw
- Operator's manual
