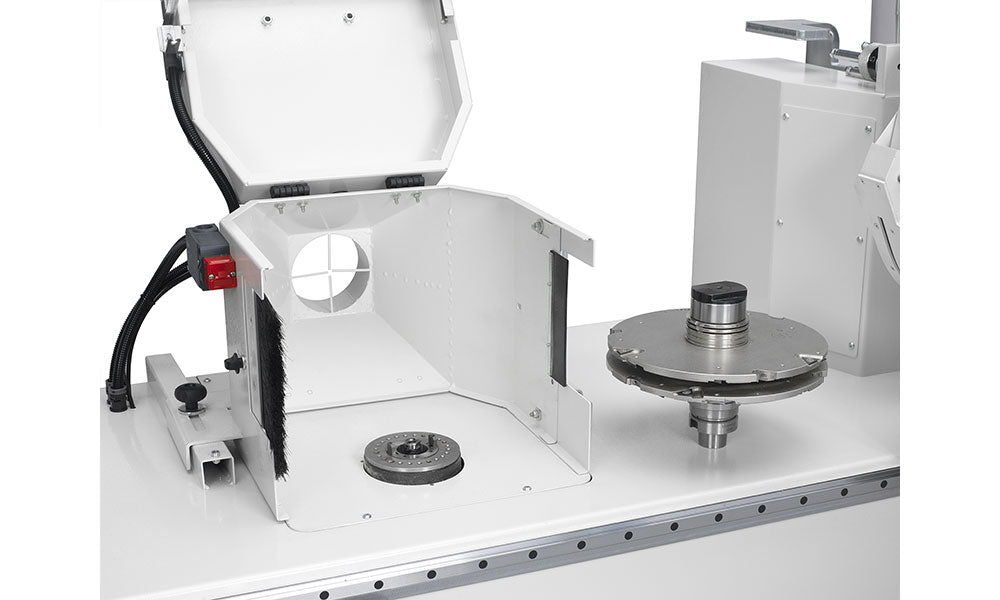

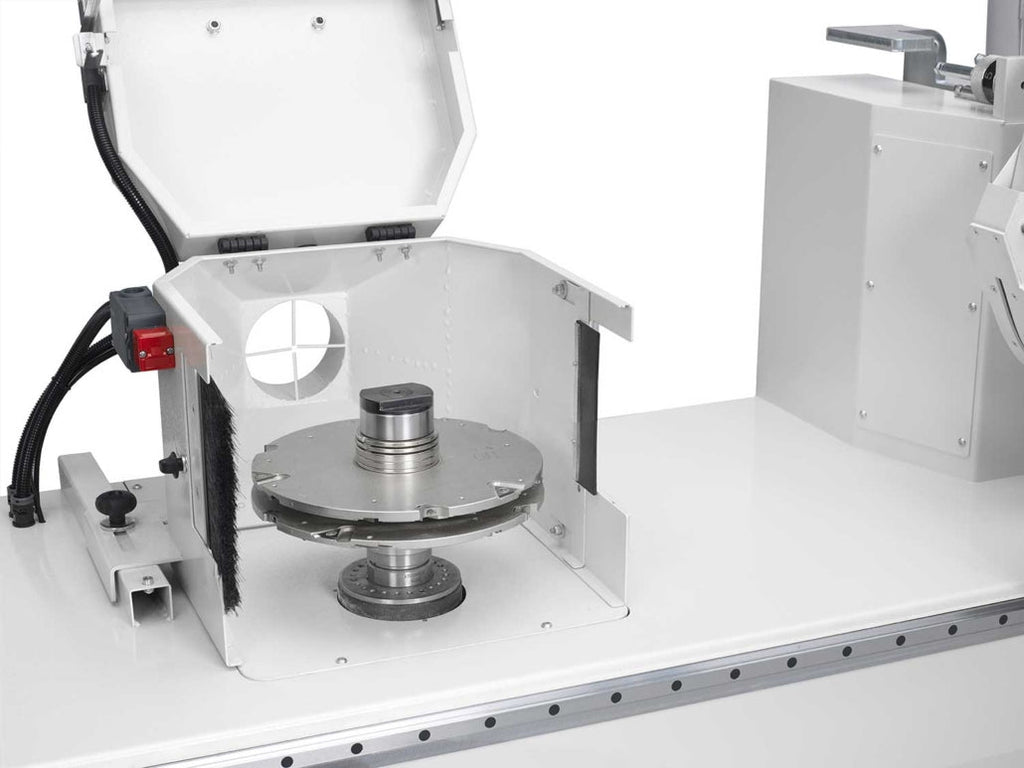

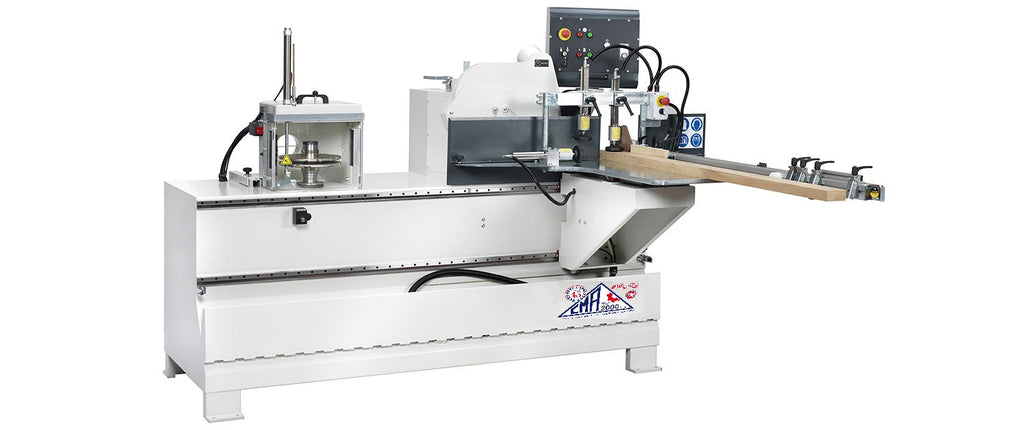

Compact tenoning machine engineered for busy workshops, combining a simple yet powerful design with maximum functionality. The CMA 2000 Elite 400 features a quick HSK tool change system and an optional HSK63B shaft for even faster tool switching.
Precision adjustments are made easy with manual saw blade unit control, revolver stops for tool diameter referencing, and a mechanical display for cutter height. The moving table glides on dual guides, while the lock/unlock selector and pneumatic pressors ensure secure, repeatable workpiece clamping.
Key Features
| Brand | Calderbrook |
| Model | CMA 2000 Elite 400 |
| Product Type | Compact Tenoning Machine |
| Tool Change System | HSK |
| Optional Shaft | HSK63B quick change |
| Toolholder Diameter Options | 40 mm, 50 mm |
| Saw Blade Unit Adjustment | Manual, on linear guides with linear bearing pads |
| Table Adjustment | Manual, referring to tool diameter |
| Revolver Stops for Saw Blade | 5 stops (tool diameter), 4 stops (cut stop for alignment) |
| Revolver Stops for Table | 5 stops (tool diameter) |
| Cutter Height Display | Mechanical |

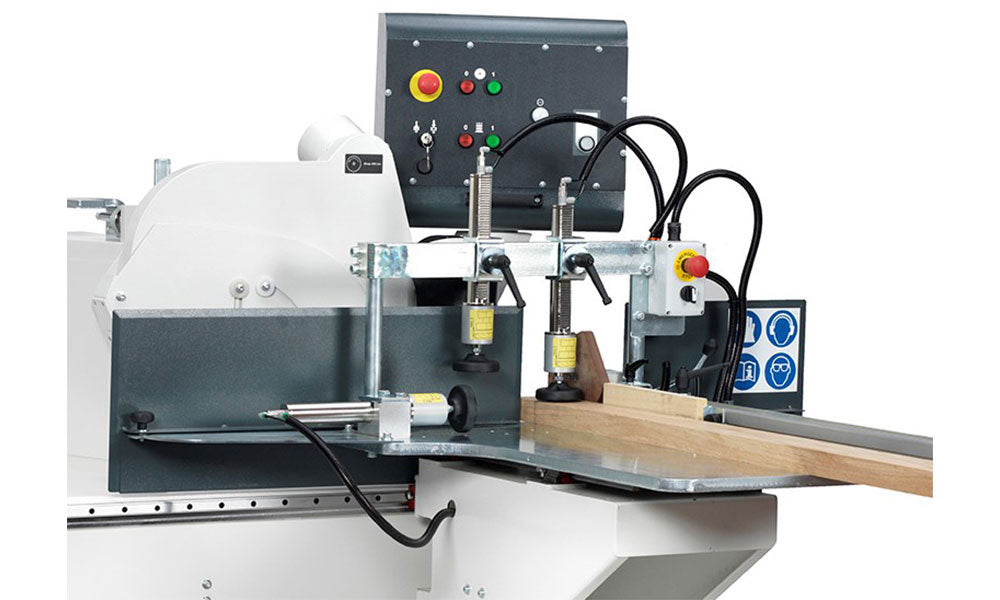

| Workpiece Clamping | Pneumatic pressors with lock/unlock selector |
| Table Movement | Sliding on dual guides fixed to supporting structure |
| Included Rings | 2 x 30 mm, 3 x 20 mm, 4 x 10 mm, 4 x 5 mm |
How to use
Set the required tool diameter using the five revolver stops on the saw blade unit. Adjust the worktable position with its own five revolver stops to match the tool. Use the four additional stops on the saw blade unit for precise cut alignment. Set the cutter height via the mechanical display, then engage the pneumatic pressors using the lock/unlock selector before starting the tenoning operation.
What's included
- The moving table slides on a pair of guides fixed on the machine’s supporting structure
- Working table adjustment referring the tool diameter and referring the saw blade unit on linear guides and linear bearing pads
- Manual adjustment of the saw blade unit

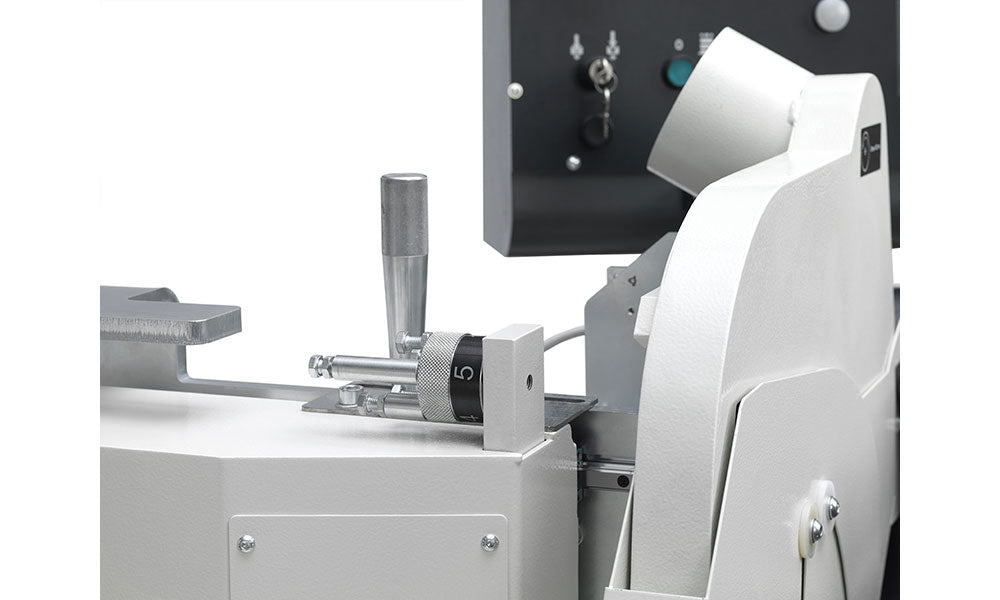

- No. 5 stops on revolver for the adjustment of the saw blade unit referring the tool diameter

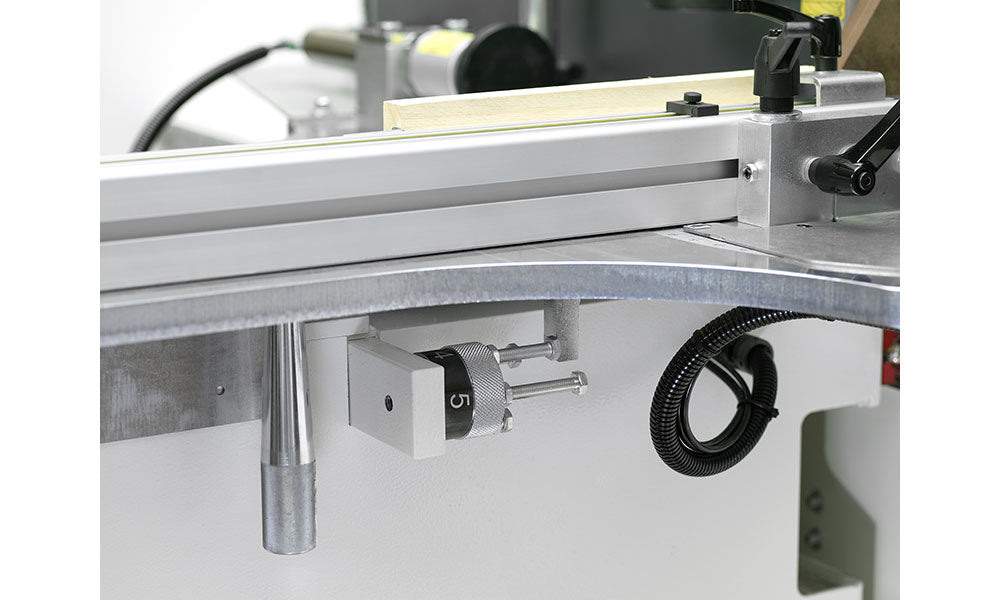

- No. 5 stops on revolver for the adjustment of the table referring to the tool diameter

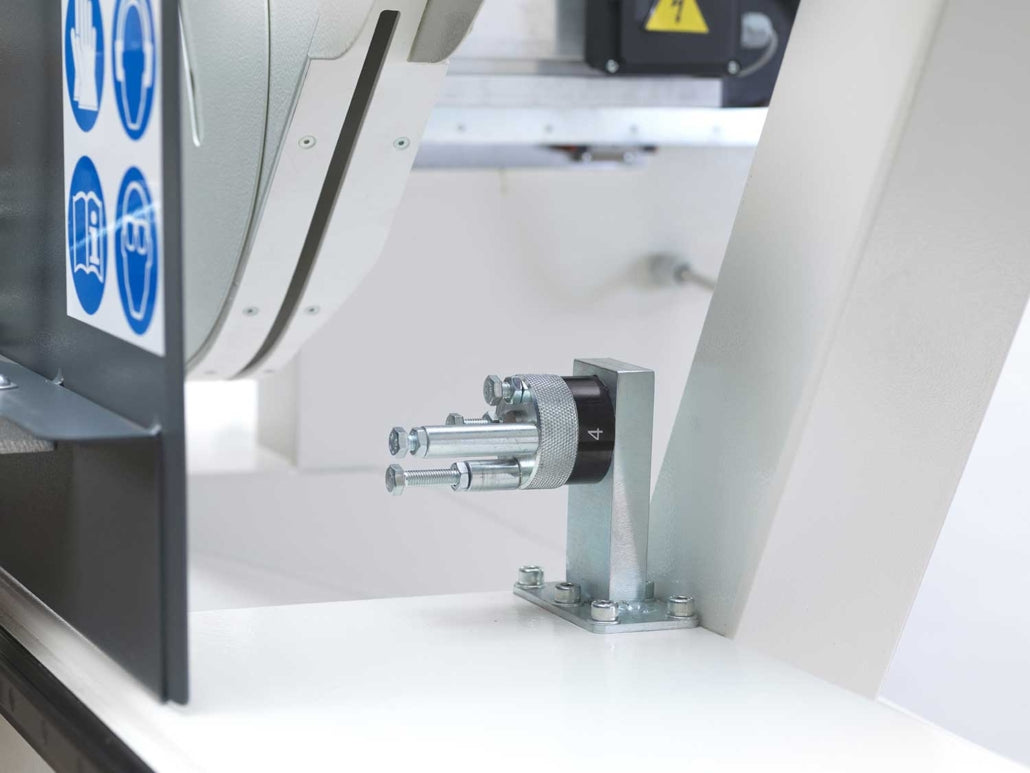

- No. 4 stops on revolver to use the saw blade (cut stop for the alignment)
- Mechanical display for cutter height adjustment of the toolholder shaft
- Lock/unlock selector on worktable to start the pneumatic pressors

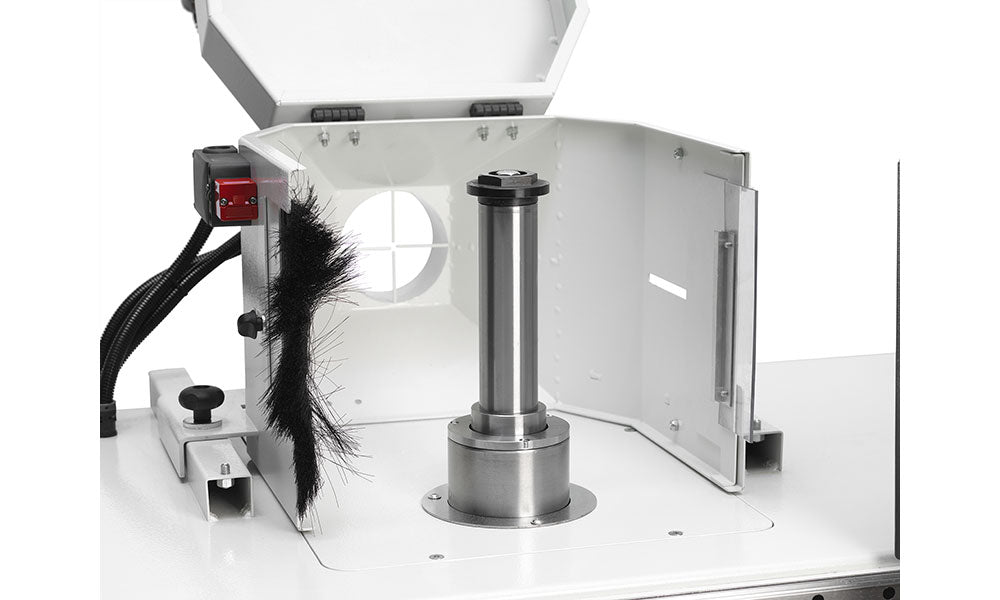

- Toolholder diameter at the customer’s choice (40mm or 50mm)
- Kit of rings for toolholder shaft complete with: no. 2 rings thickness 30mm, no. 3 rings thickness 20mm, no. 4 rings thickness 10mm, no. 4 rings thickness 5mm
