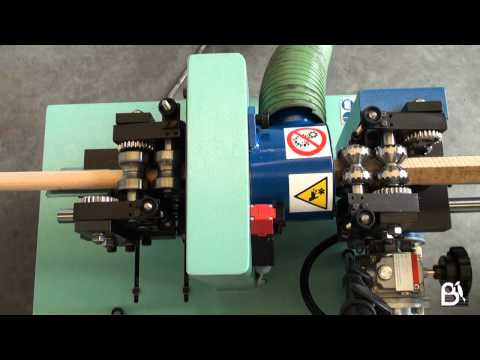

Brusa di Garboli TA30 Automatic Wood Rod Milling Machine
Brusa di Garboli TA30 Automatic Wood Rod Milling Machine
The Brusa di Garboli TA30 is an automatic milling machine engineered for the efficient production of straight wooden rods and bars. Designed for small to medium batch runs, it processes diameters from 6 to 30 mm using fixed-diameter tools that are swapped for each size.
With an average output of approximately 4 meters per minute, this unit delivers consistent results for furniture components and joinery. By mounting specific equipment, it can also produce round rods with helicoidal fluting to create dowels for windows, doors, and furniture frames.
Key Features
| Brand | Brusa di Garboli |
| Model | TA30 |
| Machine Type | Automatic Milling Machine |
| Application | Production of straight wooden rods and bars |
| Min Diameter | 6 mm |
| Max Diameter | 30 mm |
| Tool Type | Fixed diameter tools |
| Average Productivity | 4 m/min |
| Special Capability | Helicoidal fluting for dowels |
| Feed Type | Automatic |
| Product Type | Wood Rod Milling Machine |
Highlights
- Automatic feed for consistent, hands-free operation
- Processes diameters from 6 to 30 mm
- Average output of 4 meters per minute
- Optional helicoidal fluting capability for dowel production
- Ideal for small to medium batch quantities
Videos
Compatibility
Compatible with fixed-diameter tooling for rod sizes between 6 and 30 mm. Optional helicoidal fluting equipment available for dowel production.
How to use
Install the fixed-diameter tool corresponding to the desired rod size. Set the automatic feed and adjust parameters for the required diameter between 6 and 30 mm. For helicoidal fluting, mount the specific fluting equipment before starting production.
