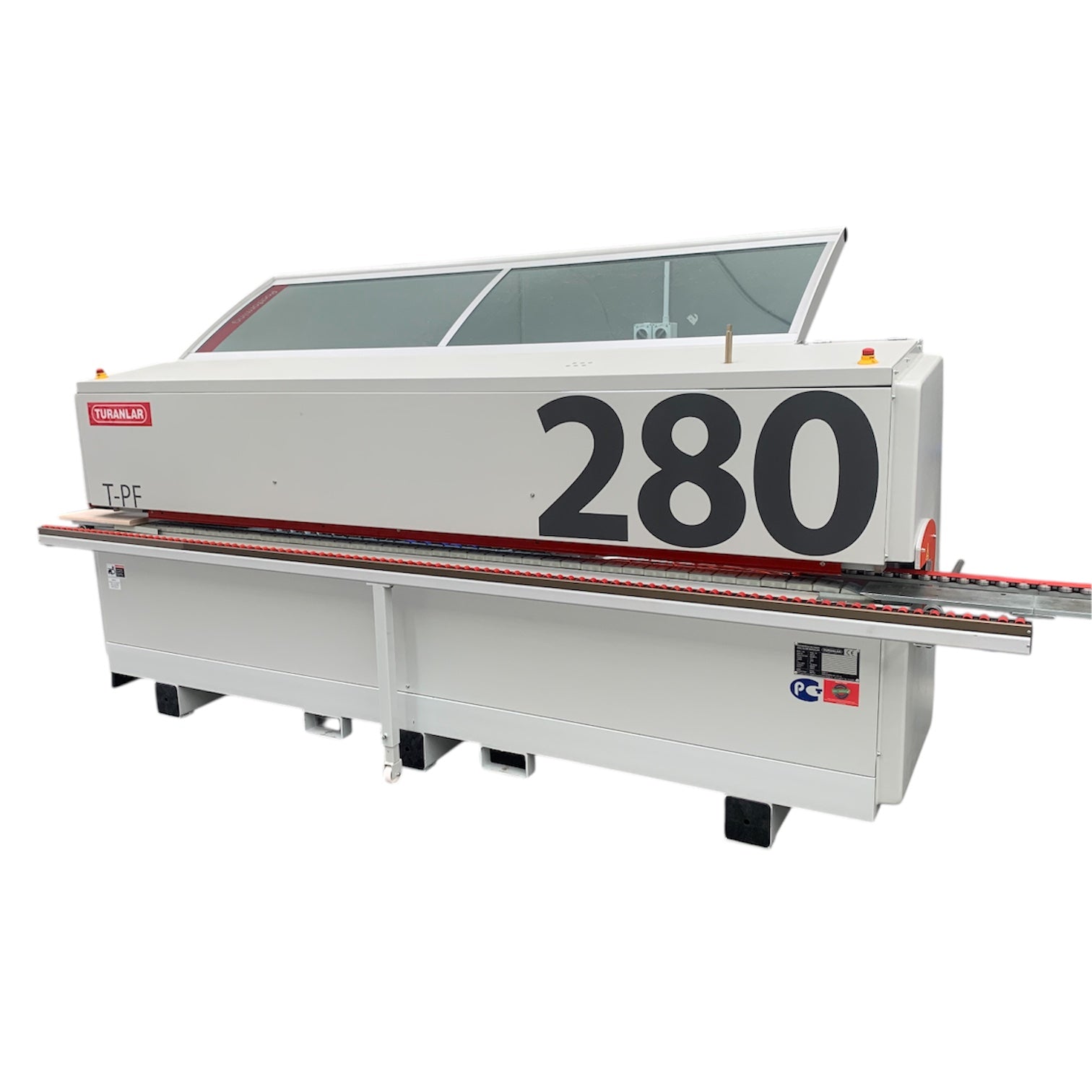

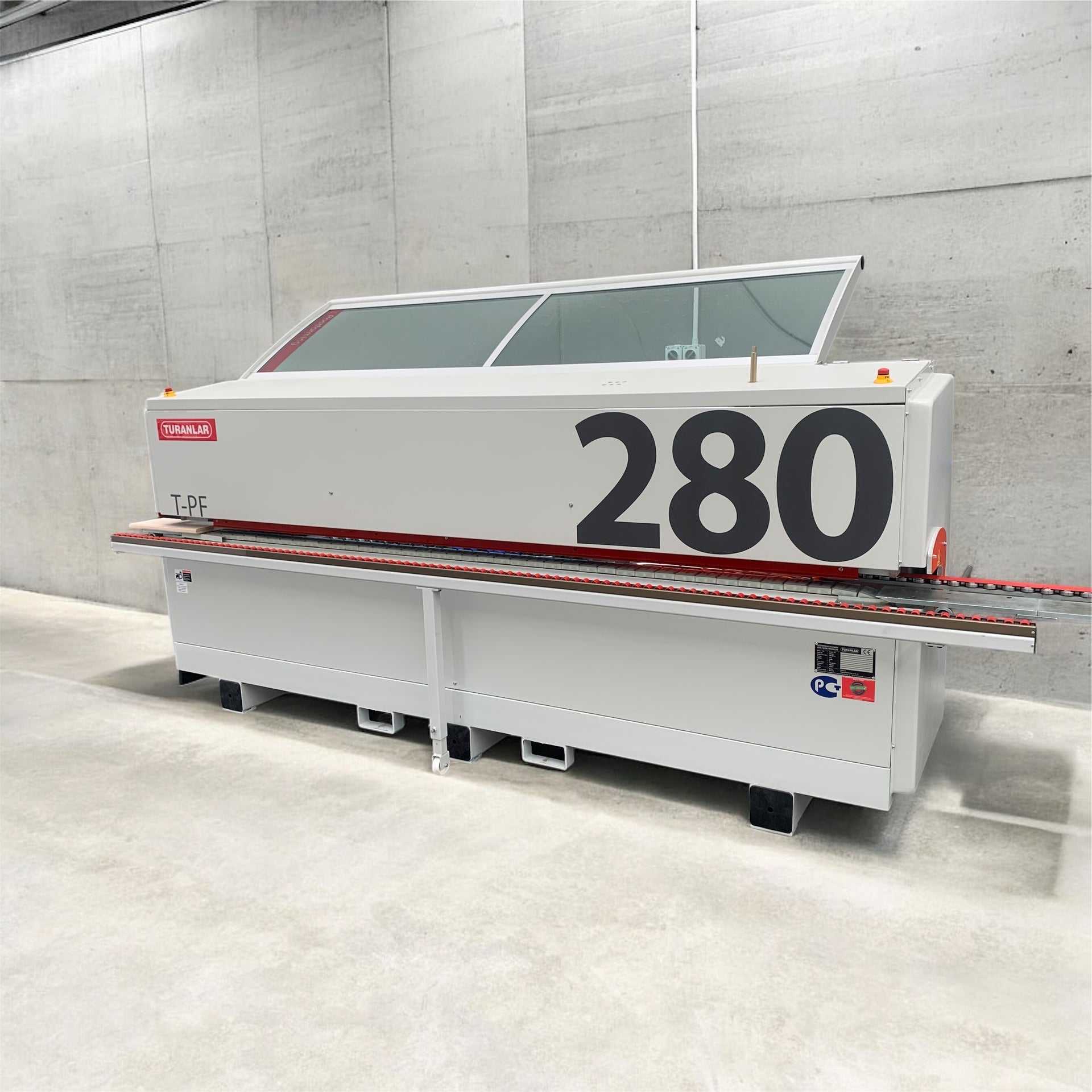

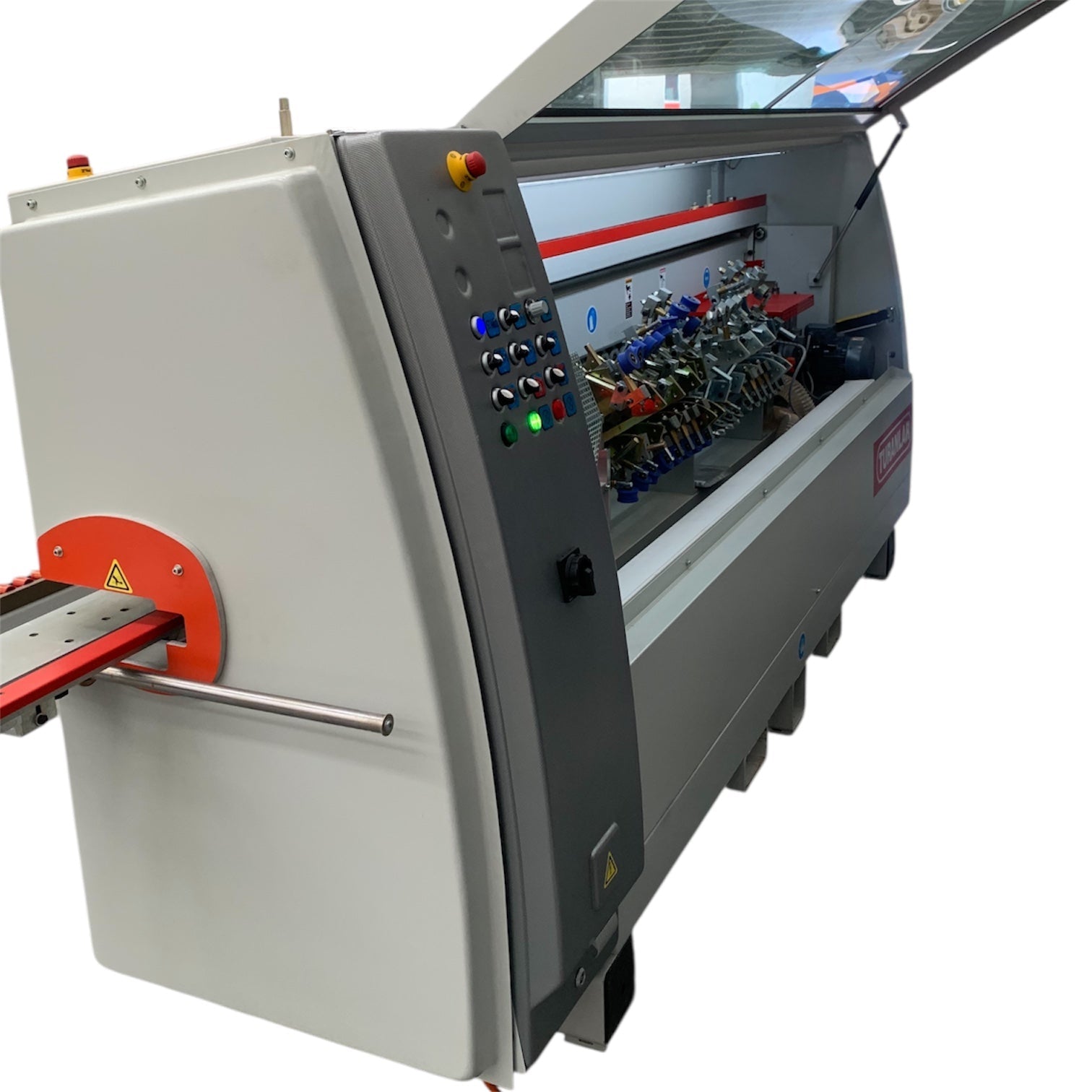

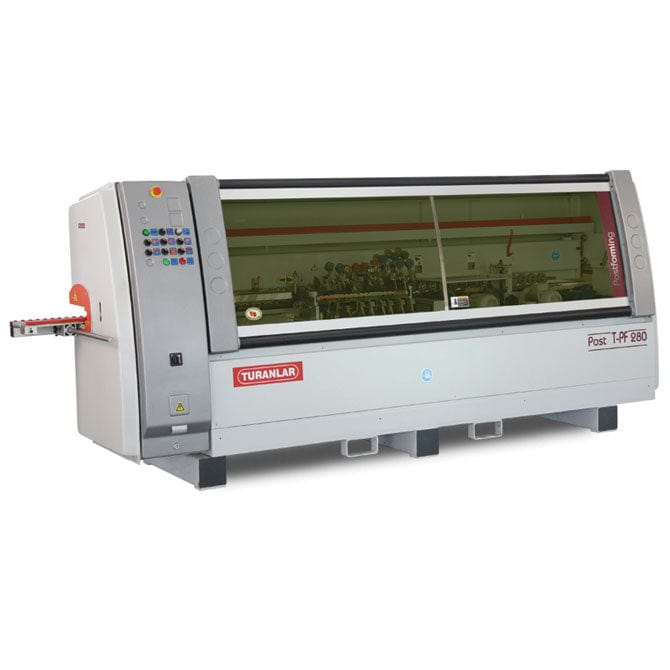

Turanlar T-PF280 Flow Through Postformer 415V
Turanlar T-PF280 Flow Through Postformer 415V

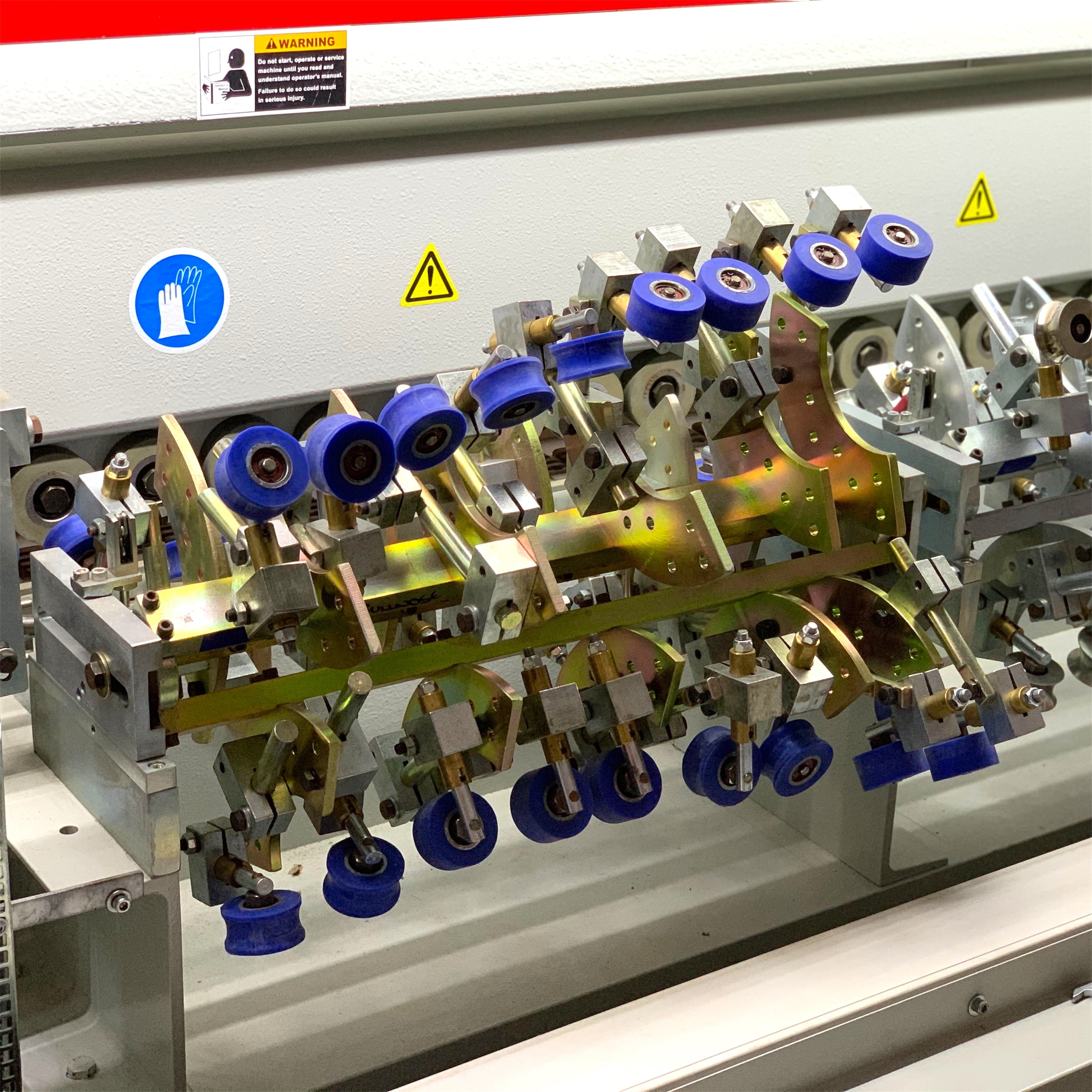

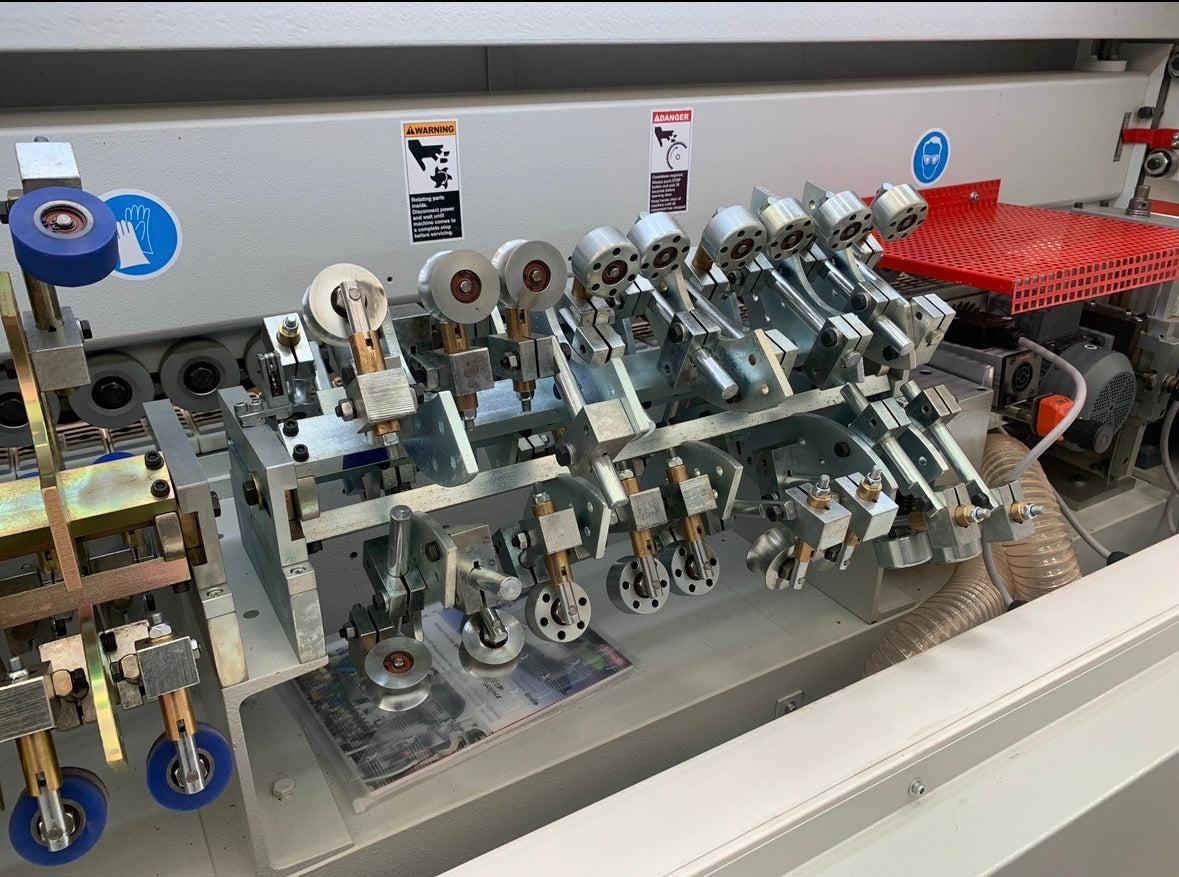

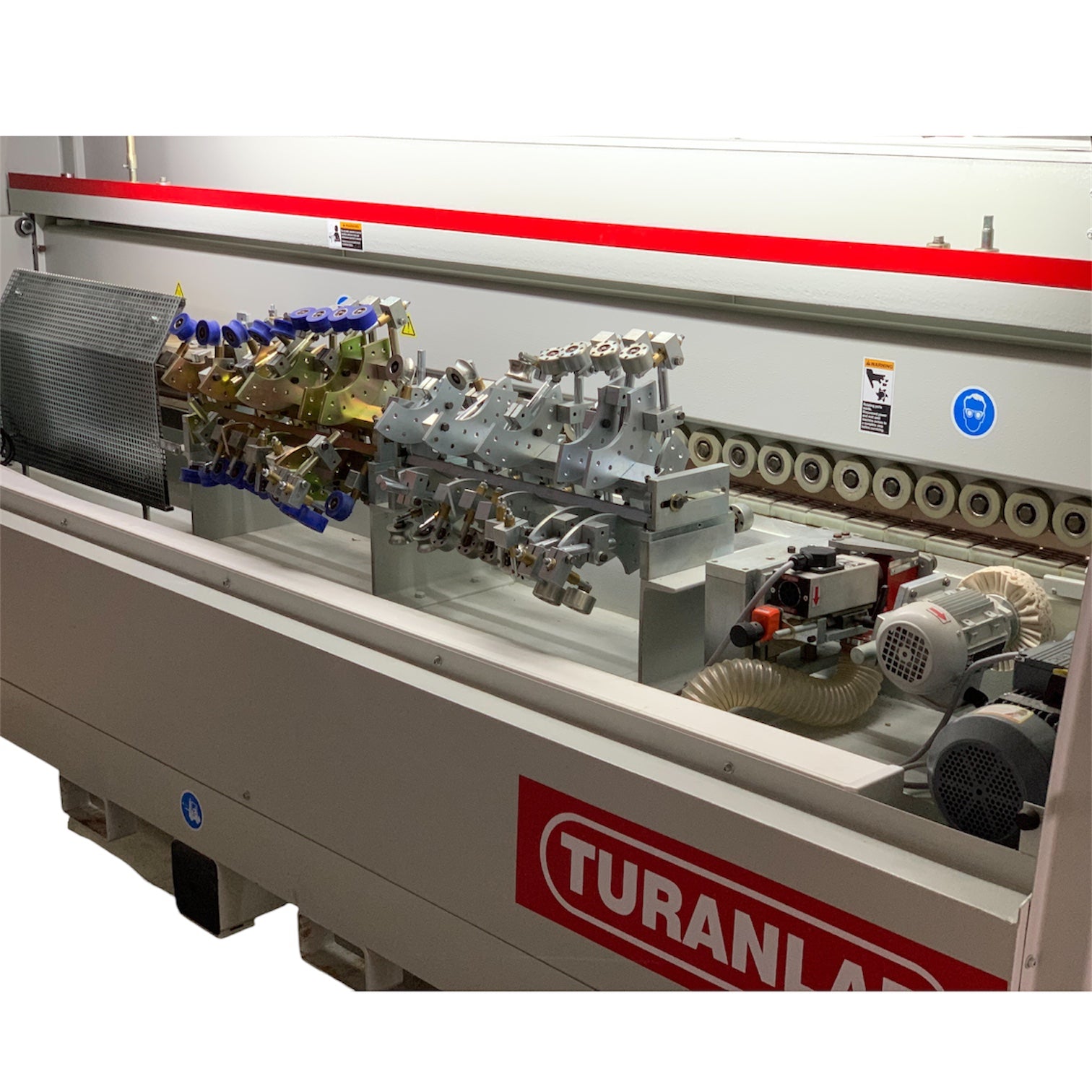

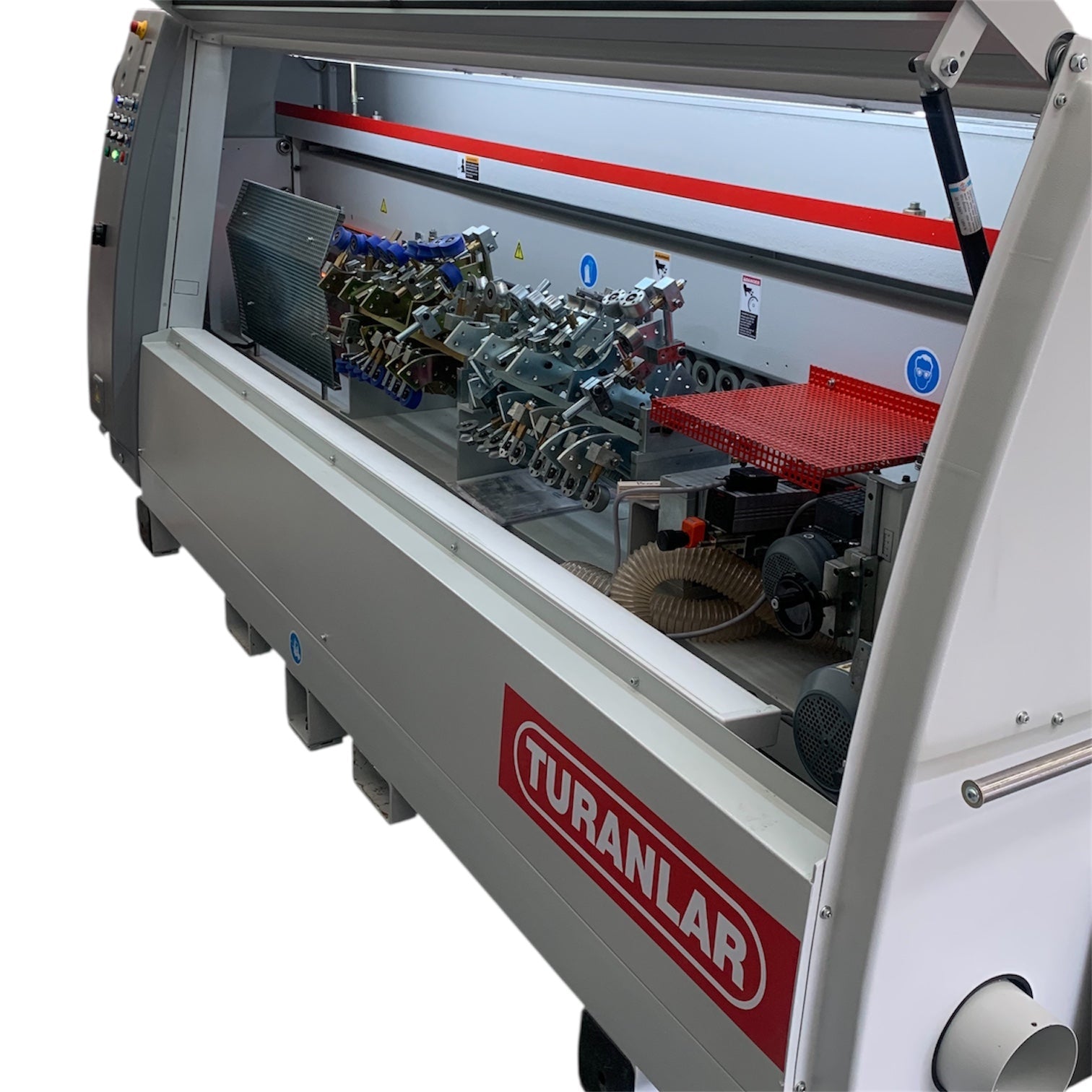

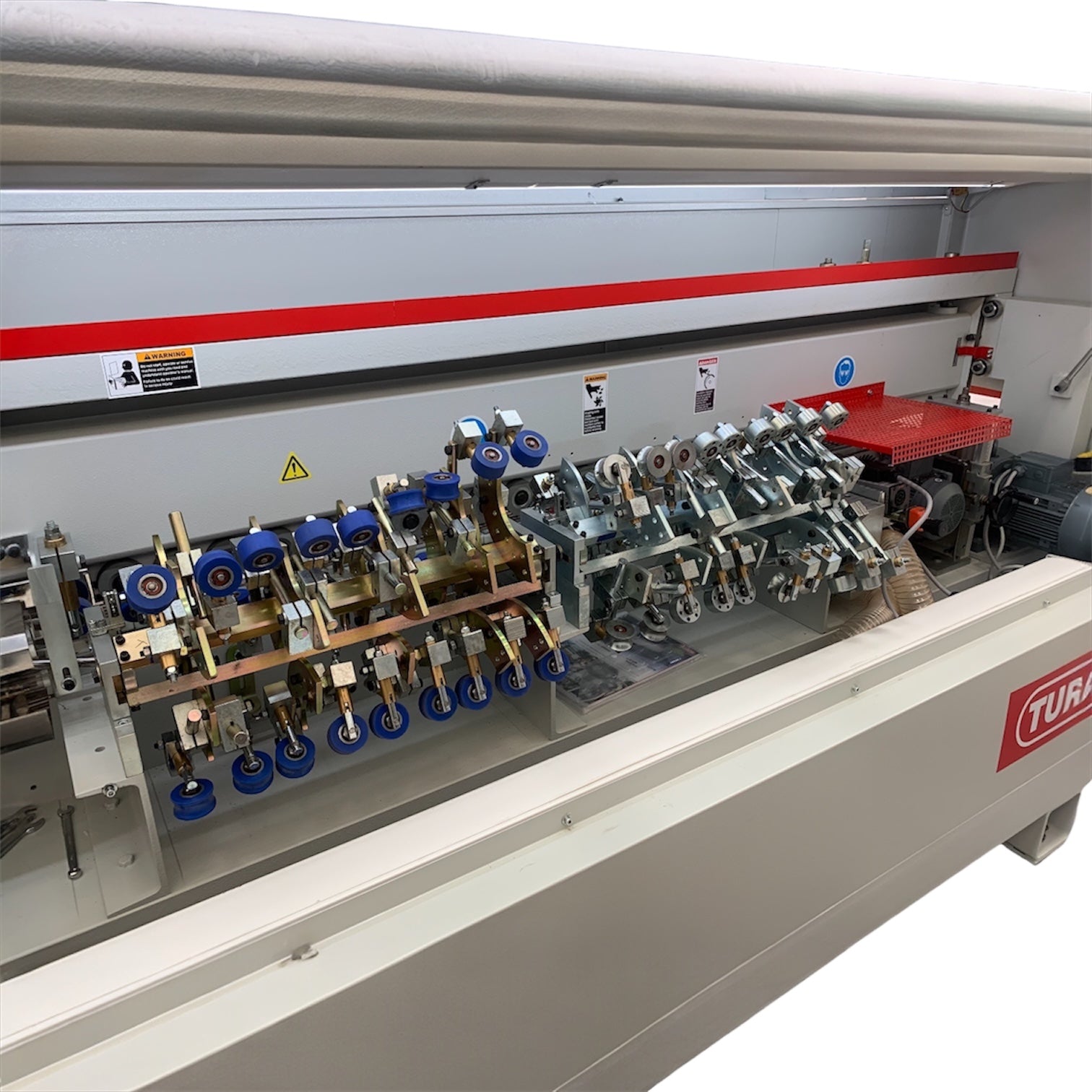

The Turanlar T-PF280 Flow Through Postformer is a robust industrial machine engineered to curve and soften laminate using top and bottom infrared medium-wave heating lamps, then apply it precisely onto profiled edges with unique feed profile rollers. It features a profile cartridge configurable for three different profiles, cooling rollers, an end milling unit, and adjustable speed control for consistent, high-quality results.

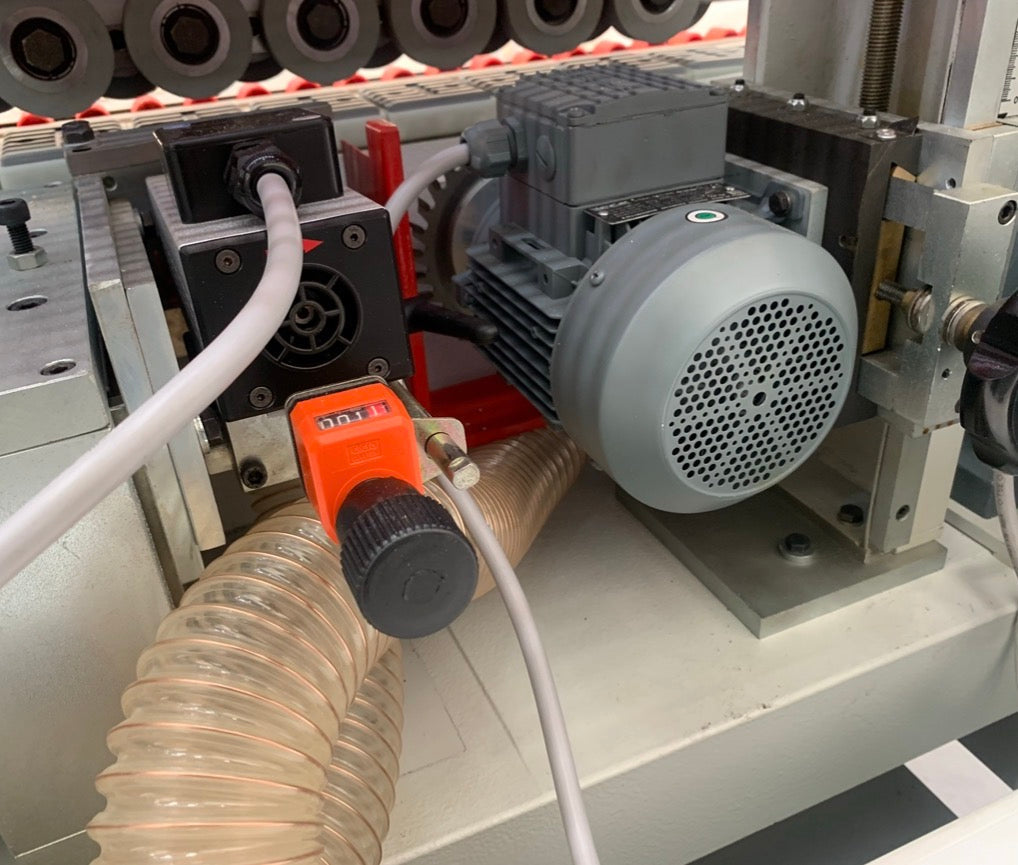

Designed for demanding workshop environments, this 415V 3-phase machine handles laminate thicknesses from 0.4 to 1 mm and heights up to 70 mm at a speed of 12 m/min. The integrated high-frequency Italian trimming motor (12,000 rpm) cleans excess overhang on 90-degree profiles, while the grooving saw unit prepares kitchen tops for water-resistant sealing, making it a complete solution for professional joinery.
Key Features
| Brand | Turanlar |
| Model | T-PF280 |
| Type | Postformer |
| Power Source | 415V 50Hz 3 Phase |
| Total Electrical Power | 7.6 kW |
| Laminate Thickness | 0.4 - 1 mm |
| Laminate Height | 70 mm |
| Speed | 12 m/min |
| Working Height | 870 mm |

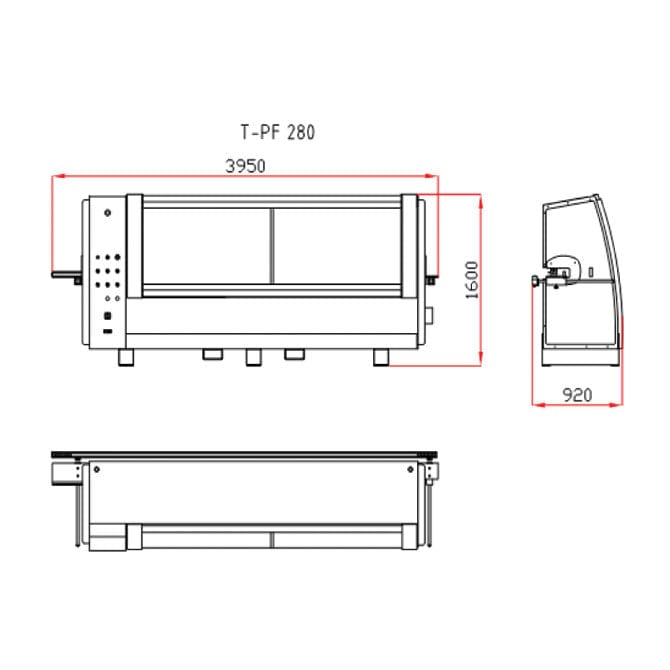

| Machine Length | 4000 mm |
| Machine Width | 920 mm |
| Machine Height | 1600 mm |
| Machine Weight | 1600 kg |
| Trimmer Power | 0.37 kW 12000 RPM |
| Dust Extraction Outlet | 150 mm |
| Heater Type | Infrared Medium Wave (Top & Bottom) |
| Heater Power per Element | 1750 W |

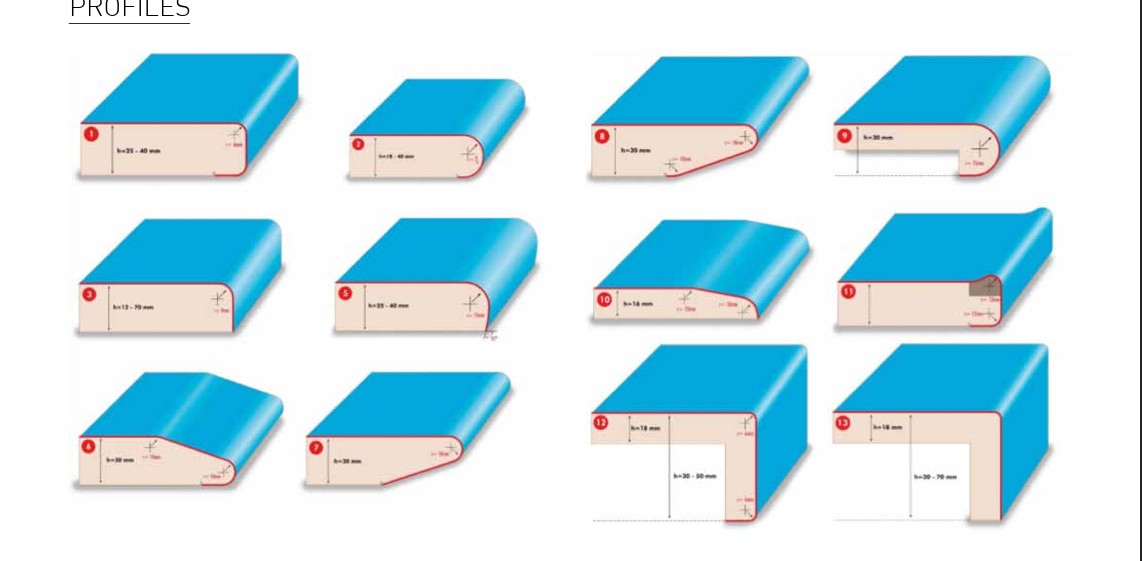

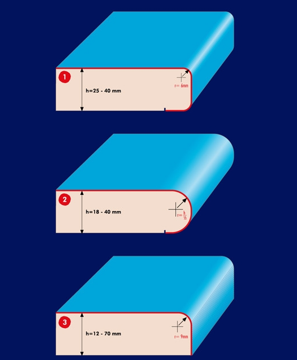

| Profile Cartridge | 3 Different Profiles |
| Trimming Motor | High Frequency Italian Motor |
| Grooving Saw Unit | Yes |
| Electrical Connection | Excludes Plug & Lead (must be connected by Licensed Electrician) |
| Country of Origin | Türkiye |
| Warranty | 1 Year (Australia) |
Compatibility
Compatible with laminate thicknesses from 0.4 mm to 1 mm and laminate heights up to 70 mm. Suitable for both 90-degree (half turn) and 180-degree (full turn) profiles. Designed for use with contact adhesive; Tac adhesive glue is recommended for square form applications.
How to use

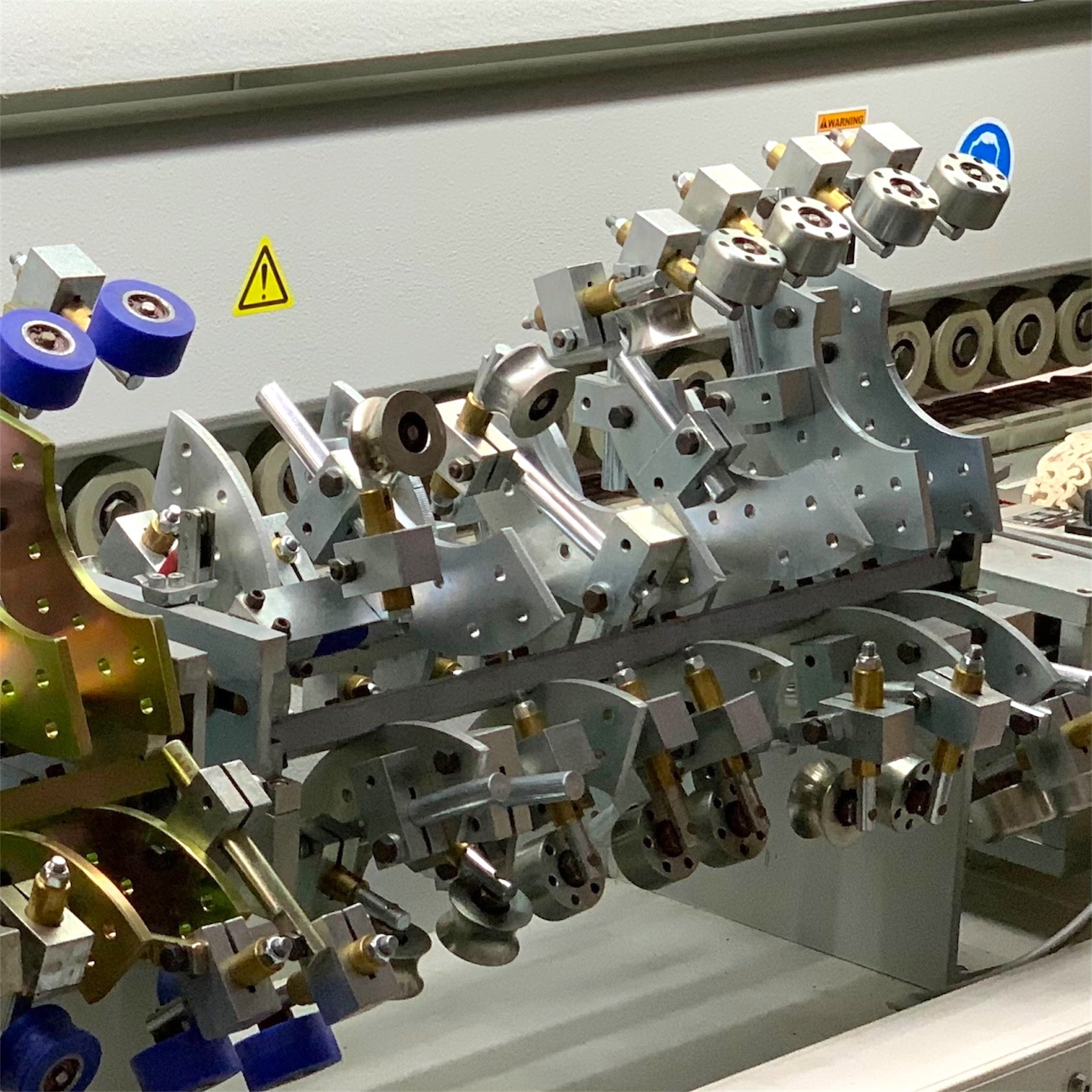

Begin by allowing the infrared heaters 5-10 minutes to reach operating temperature. Feed the laminate through the top and bottom heating units, then guide it onto the profiled edge using the feed profile rollers. The profile cartridge can be set for three different profiles. For 90-degree profiles, engage the bottom trimming unit to clean excess overhang; for full 180-degree profiles, lower the trimming motor and switch it off. Use the grooving saw unit on kitchen tops to create a channel for water-resistant sealing with silicone or hot-melt.
What's included
Flow Through Postformer T-PF280 by Turanlar
