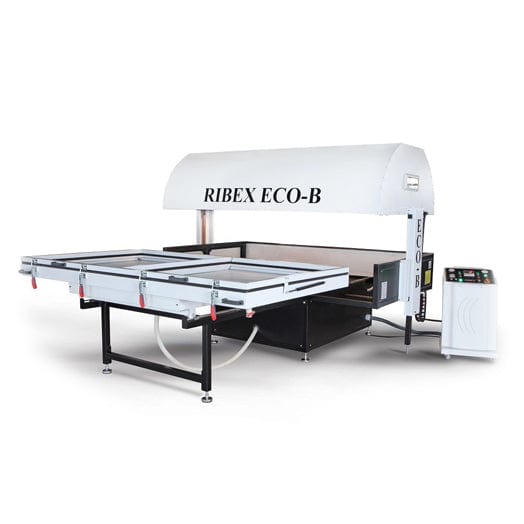

Ribex ECO-B 3000 mm Vacuum Press 415V
Ribex ECO-B 3000 mm Vacuum Press 415V

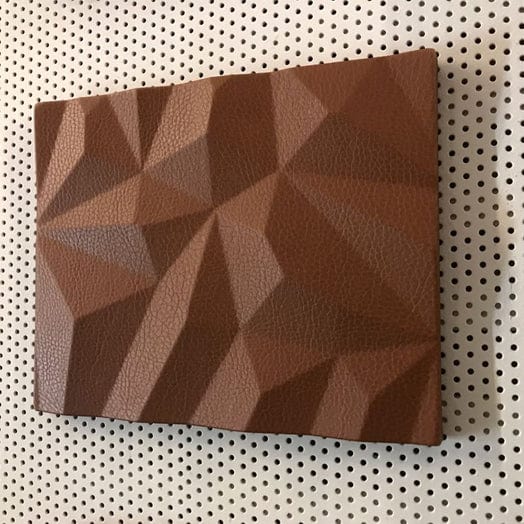

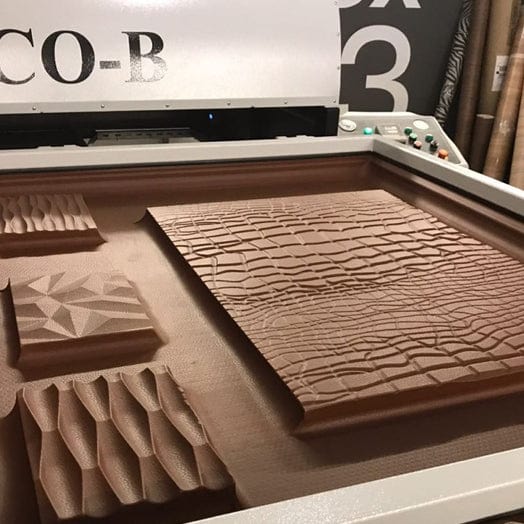

The Ribex ECO-B is a new-generation vacuum press engineered for flat and 3D lamination of PVC foils onto MDF, chipboard, and plywood, making it ideal for producing doors, cabinets, and panels for kitchens, bathrooms, and bedrooms. Its process combines high-temperature quartz heating with a gradual vacuum cycle, ensuring a consistent, high-quality finish on every workpiece.
Designed for efficiency and ease of use, this machine features independent vacuum and heat operation, automatic temperature control, and a short processing cycle. With a generous 400 mm maximum working thickness and a spacious 2275 x 1230 mm table usage area, it handles large-scale production demands while keeping maintenance and operating costs low.
Key Features
| Brand | Ribex |
| Model | ECO-B |
| Type | Vacuum Press |
| Power Source | 415V 50Hz 3 Phase |
| Total Power | 22.5 kW |
| Pump Motor Power | 2.8 kW |
| Pump Motor Speed | 1450 rpm |
| Pump Extraction Capacity | 105 m³/h |
| Table Frame Dimensions | 2435 x 1350 mm |
| Table Usage Area | 2275 x 1230 mm |
| Maximum Working Thickness | 400 mm |
| Maximum Temperature | 200 °C |
| Total Operation Time | 4-5 min |
| Noise Limit | 68 dBA |
| Product Dimensions (L x W x H) | 3000 x 3000 x 1650 mm |
| Product Weight | 850 kg |
| Electrical Connection | Excludes Plug & Lead (must be connected by Licensed Electrician) |
| Country of Origin | Türkiye |
| Certifications | CE, ISO 9001 |
Highlights
- CE, ISO 9001 certified

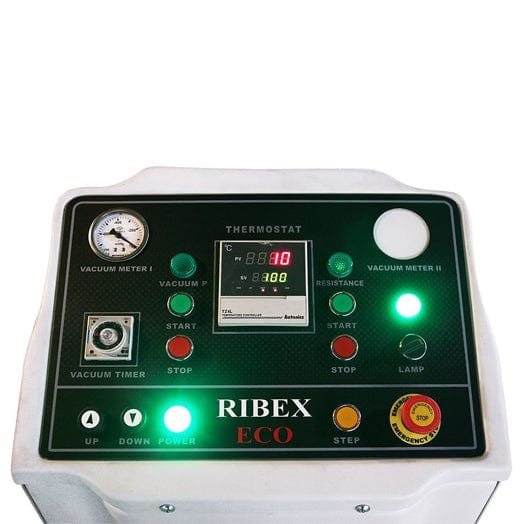

- Automatic temperature control
- Short processing cycle
- Independent vacuum and heat operation
- Operation window for direct monitoring
- Manual adjustment and usage
- High thickness material processing up to 400 mm
- Easy opening and closing head unit
- Low cost maintenance
- Low cost heaters
- Minimum wastage and time savings
- Thermofoil PVC stand (1 pcs)
Compatibility
Compatible with MDF, chipboard, and plywood substrates for PVC foil lamination. Suitable for producing doors, cabinets, kitchen panels, bathroom panels, and bedroom furniture components. Optional silicone membrane extends compatibility to veneers and other laminating products.
How to use
The process begins with a heating cycle using high-temperature quartz heating elements, followed by a gradual vacuum press cycle that completes the foiling with negative suction pressure. The machine features independent vacuum and heat operation with automatic temperature control for consistent results.
What's included
Vacuum Press ECO-B by Ribex
