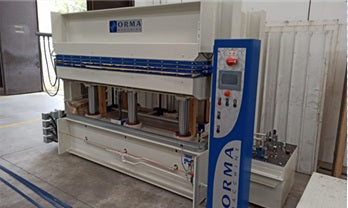

Orma NPC/DIGIT 25/18 3V Veneer Press
Orma NPC/DIGIT 25/18 3V Veneer Press
The Orma NPC/DIGIT 25/18 3V is a robust hydraulic veneer press engineered for high-volume production environments. Its upstroke design features a lower movable platen and two intermediate platens, all constructed from drilled solid steel and covered with durable Mylar for consistent, even pressure distribution.
Equipped with six pressing cylinders delivering 300 tonnes of total thrust and a maximum specific pressure of 6.5 kg/cm², this machine ensures flawless bonding across large 2500 x 1800 mm panels. The integrated digital touch-screen controls and a 60 kW electric boiler for thermal oil heating provide precise, repeatable cycle management.
Key Features
| Brand | Orma |
| Model | NPC/DIGIT 25/18 3V |
| Machine Type | Hydraulic Veneer Press |
| Platen Dimensions | 2500 x 1800 mm |
| Platen Type | Drilled solid steel |
| Platen Covering | Mylar |
| Number of Intermediate Platens | 2 |
| Lower Platen Design | Movable (Upstroke) |
| Number of Pressing Cylinders | 6 |
| Cylinder Diameter | 140 mm |
| Cylinder Stroke | 400 mm |
| Daylight Opening | 130 mm |
| Total Thrust | 300 t |
| Max Specific Pressure | 6.5 kg/cm² |
| Controls | Digital with touch-screen |
| Heating System | Thermal oil |
| Electric Boiler Power | 60 kW |
How to use
Load the workpiece onto the lower movable platen. Using the digital touch-screen interface, set the required pressure, temperature, and cycle time parameters. The upstroke design raises the lower platen to meet the intermediate platens, applying up to 300 tonnes of force with thermal oil heating to bond the veneer. Always ensure the Mylar covering is clean before operation to prevent surface defects.
What's included
- Orma NPC/DIGIT 25/18 3V Hydraulic Veneer Press Main Unit
- Integrated Digital Touch-Screen Control Panel
- 60 kW Electric Boiler for Thermal Oil Heating
