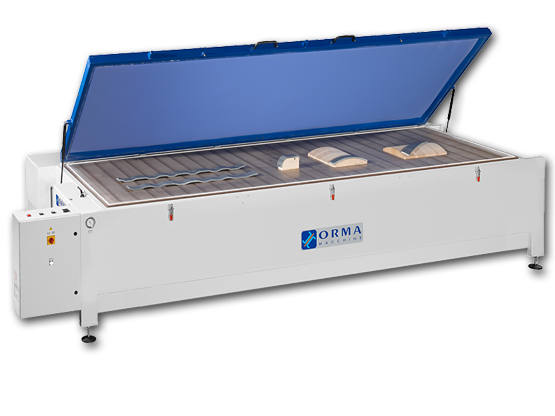

Orma FVM Corian Solid Surface Cold Vacuum Forming Press
Orma FVM Corian Solid Surface Cold Vacuum Forming Press
The Orma FVM press shapes heated Corian and solid surface sheets using vacuum and a flexible membrane over a jig, delivering precise, repeatable curves for sinks, countertops, and architectural elements. It handles workpieces up to 500 mm in height, with optional box-shaped silicone membranes available for forming heights of 900 mm or 1200 mm.
Designed to pair with the Orma FRA heating kiln, the FVM accepts material brought to forming temperature and cools it under vacuum to lock in the desired shape. An optional sublimation kit can be added to transfer images directly onto the workpiece during the forming cycle.
Key Features
| Brand | Orma |
| Product Type | Cold Vacuum Forming Press |
| Material Compatibility | Corian, Solid Surface Composite Sheets |
| Forming Method | Vacuum with Membrane |
| Maximum Workpiece Height | 500 mm |
| Optional Workpiece Height | 900 mm / 1200 mm (with box-shaped silicone membrane) |
| Optional Kit | Sublimation Kit for image transfer |
| Paired Equipment | Orma FRA Heating Kiln |
| Jig Material | MDF or Plywood |
Videos
Compatibility
Designed to pair with the Orma FRA heating kiln for a complete Corian and solid surface forming workflow. Compatible with standard solid surface composite sheets and MDF or plywood jigs.
How to use
Heat the solid surface sheet in the Orma FRA kiln until it reaches the required forming temperature. Transfer the heated sheet onto the MDF or plywood jig positioned on the FVM press bed. Lower the membrane, activate the vacuum, and allow the material to cool while held against the jig to retain its formed shape.
What's included
- Orma FVM cold vacuum forming press
- Standard silicone membrane
- Vacuum pump assembly
- Control system
