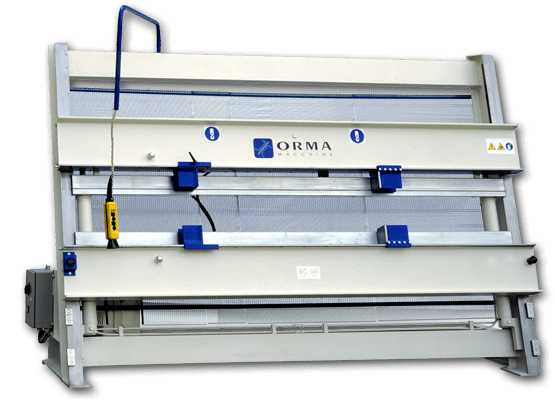

Orma Futura ECO 30/2 3000mm x 2000mm Hydraulic Cold Press
Orma Futura ECO 30/2 3000mm x 2000mm Hydraulic Cold Press
The Orma Futura ECO 30/2 is a robust hydraulic cold press designed for efficient panel laminating and veneering, offering a generous useful working area of 3000 x 2000 mm. Powered by a reliable 2.1 kW motor, this machine delivers a substantial total vertical thrust of 7.5 tons through two 65/40 mm cylinders, ensuring even, high-pressure bonding across large surfaces.
Precision control is managed via an intuitive push-button control board, while two additional horizontal cylinders provide 2 tons of thrust for lateral pressure applications. This combination of power, capacity, and straightforward operation makes it an ideal solution for woodworking shops requiring consistent, high-quality pressed panels.
Key Features
| Brand | Orma |
| Model | FUTURA ECO 30/2 |
| Product Type | Hydraulic Cold Press |
| Useful Working Dimensions | 3000 x 2000 mm |
| Vertical Cylinders | 2, ø 65/40 mm, stroke 1100 mm |
| Vertical Cylinders Total Thrust | 7.5 ton |
| Horizontal Cylinders | 2, ø 50/30 mm, stroke 1200 mm |
| Horizontal Cylinders Total Thrust | 2 ton |
| Control Type | Push-button control board |
| Motor Power | 2.1 kW |
How to use
Place the workpiece with adhesive applied onto the press bed within the 3000 x 2000 mm working area. Activate the cycle via the push-button control board to engage the vertical and horizontal cylinders, applying even pressure until the bonding process is complete.
What's included
- Orma Futura ECO 30/2 Hydraulic Cold Press Main Unit
- Push-Button Control Board
- Hydraulic Power Unit with 2.1 kW Motor
