OMGA TRF Series Double Mitre Saw for Glazing Bead
OMGA TRF Series Double Mitre Saw for Glazing Bead

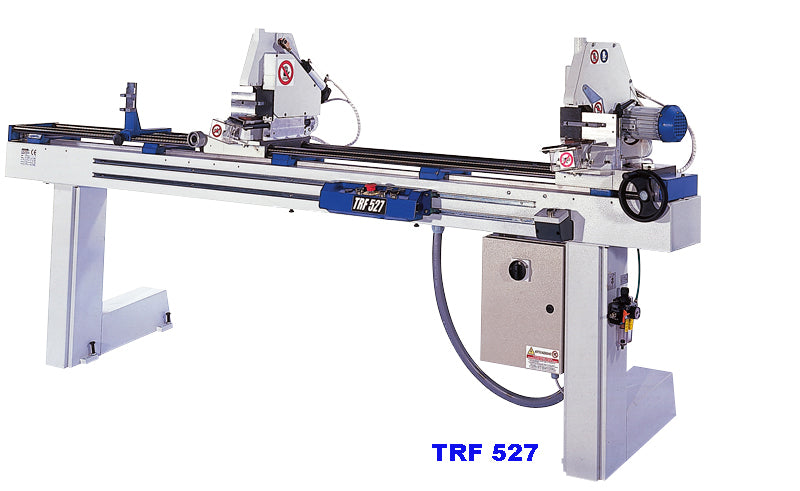

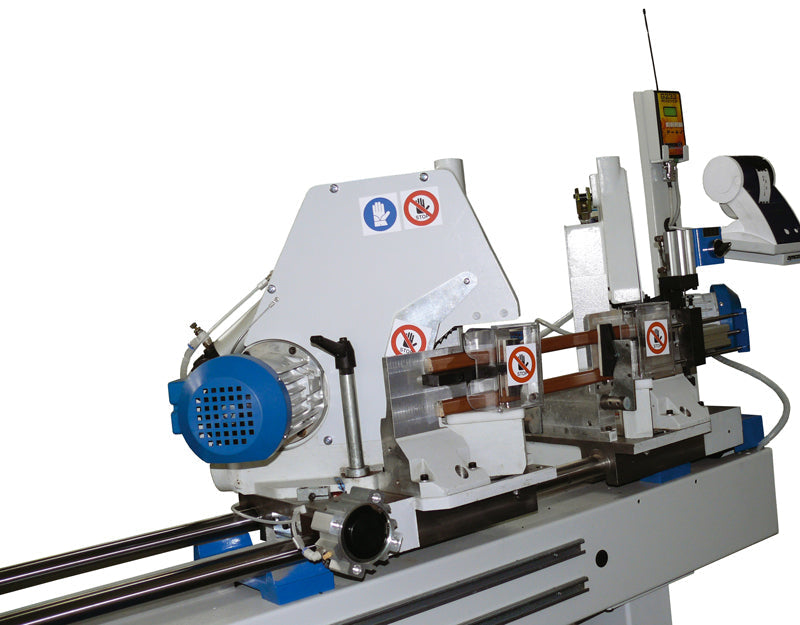

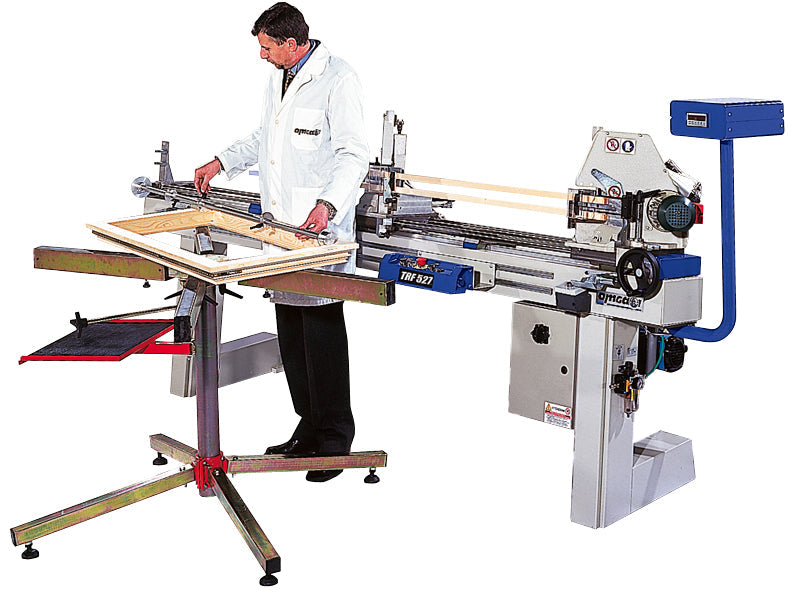

The OMGA TRF Series is a dedicated double mitre saw engineered for precision cutting of glazing beads. Featuring a fixed right head and a mobile left head, the basic version offers manual positioning via a hand wheel with a mechanical measurement gauge.

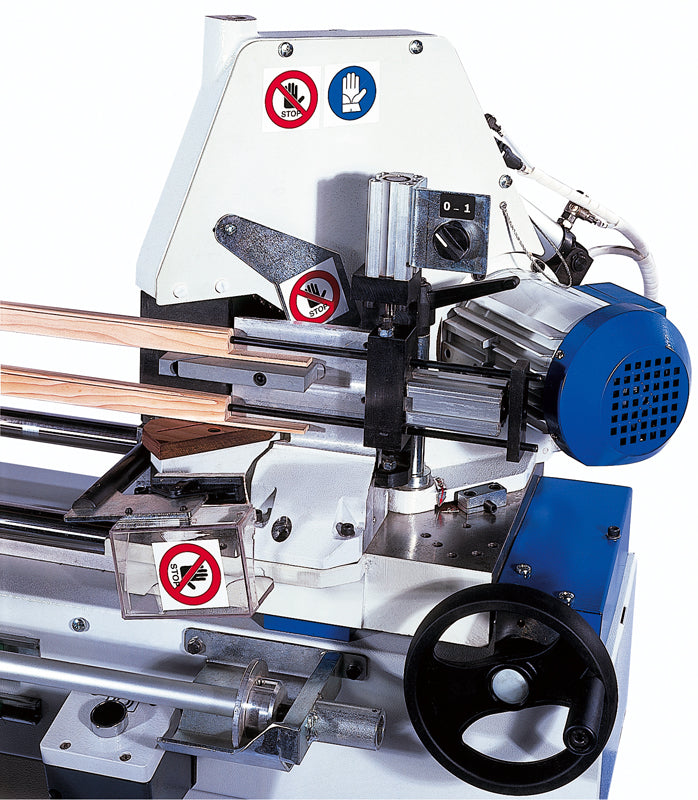

For enhanced accuracy, optional VIS (digital display) and NC (numerical control) versions are available. The machine includes a rotary table with mechanical locks at 90° and 45°, pneumatic clamps synchronized with blade descent, and a dual-level support for cutting two glass stops simultaneously.
Key Features
| Brand | OMGA |
| Manufacturer | OMGA |
| Model Series | TRF |
| Product Type | Double Mitre Saw |
| Application | Cutting glazing beads (glass stops) |
| Head Configuration | Right head fixed, left head mobile |
| Positioning Control (Basic) | Hand wheel with mechanical gauge |

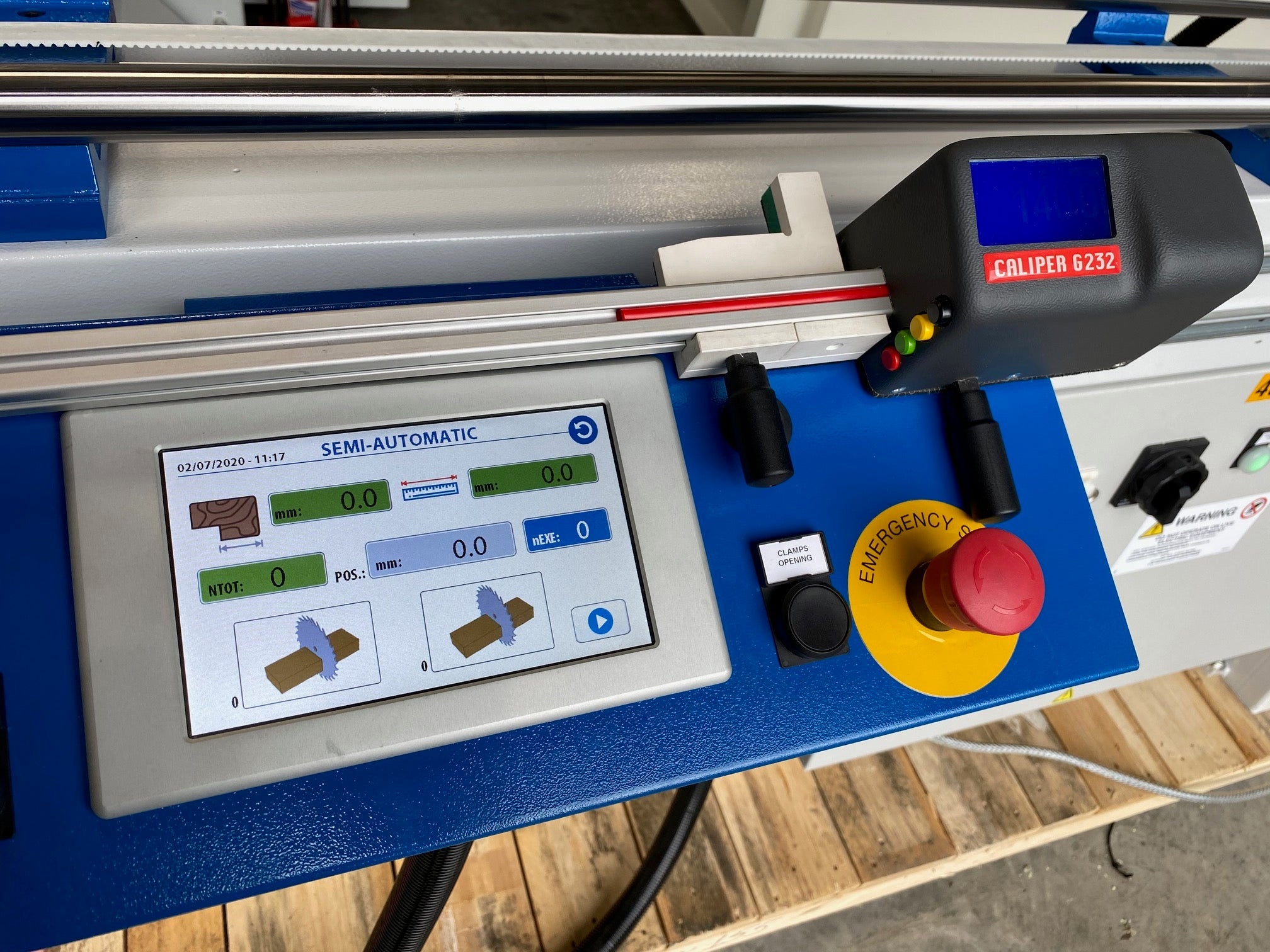

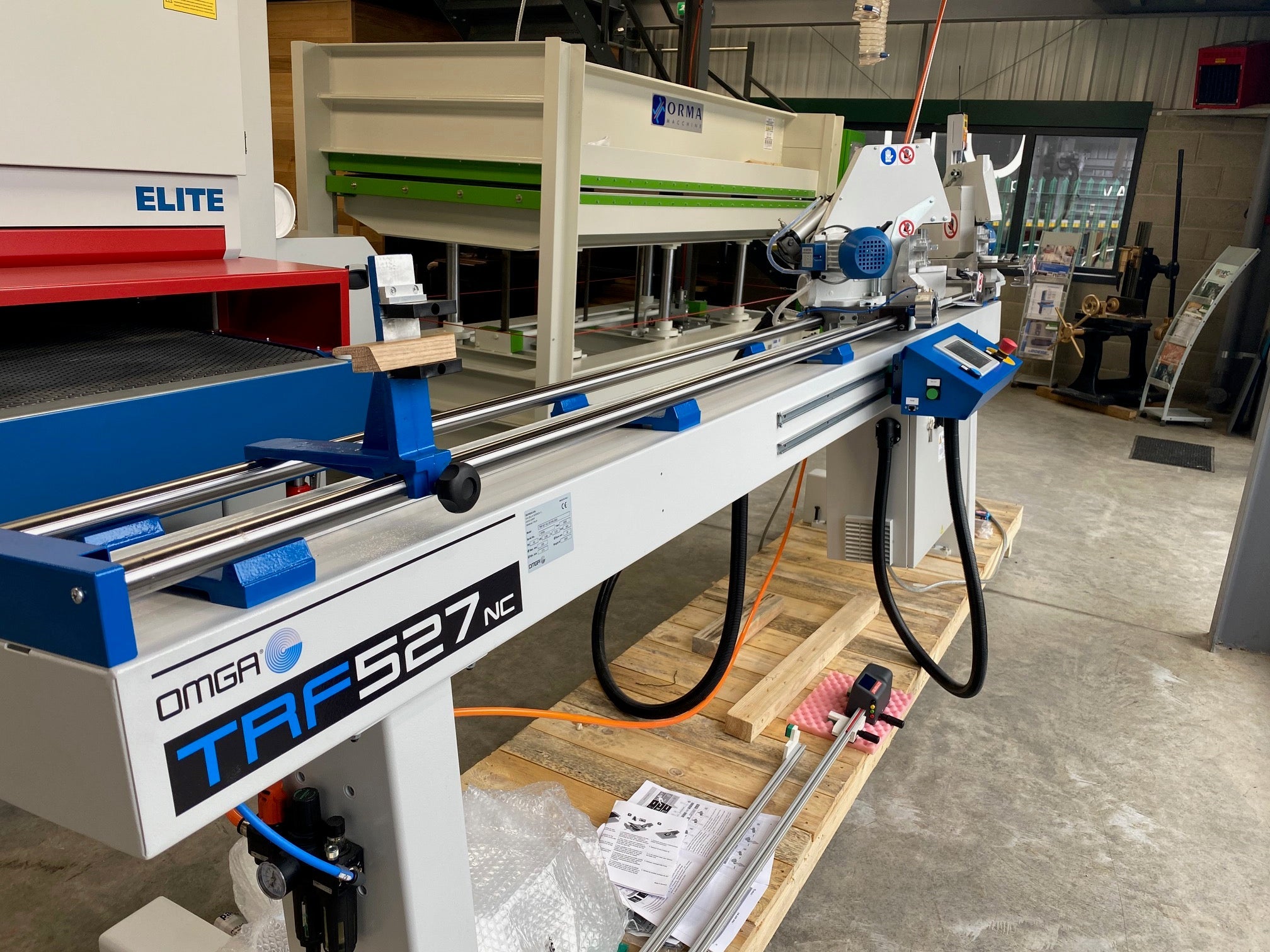

| Positioning Control (Optional) | VIS (digital display) or NC (numerical control) |
| Angle Stops | 90° and 45° (left and right) |

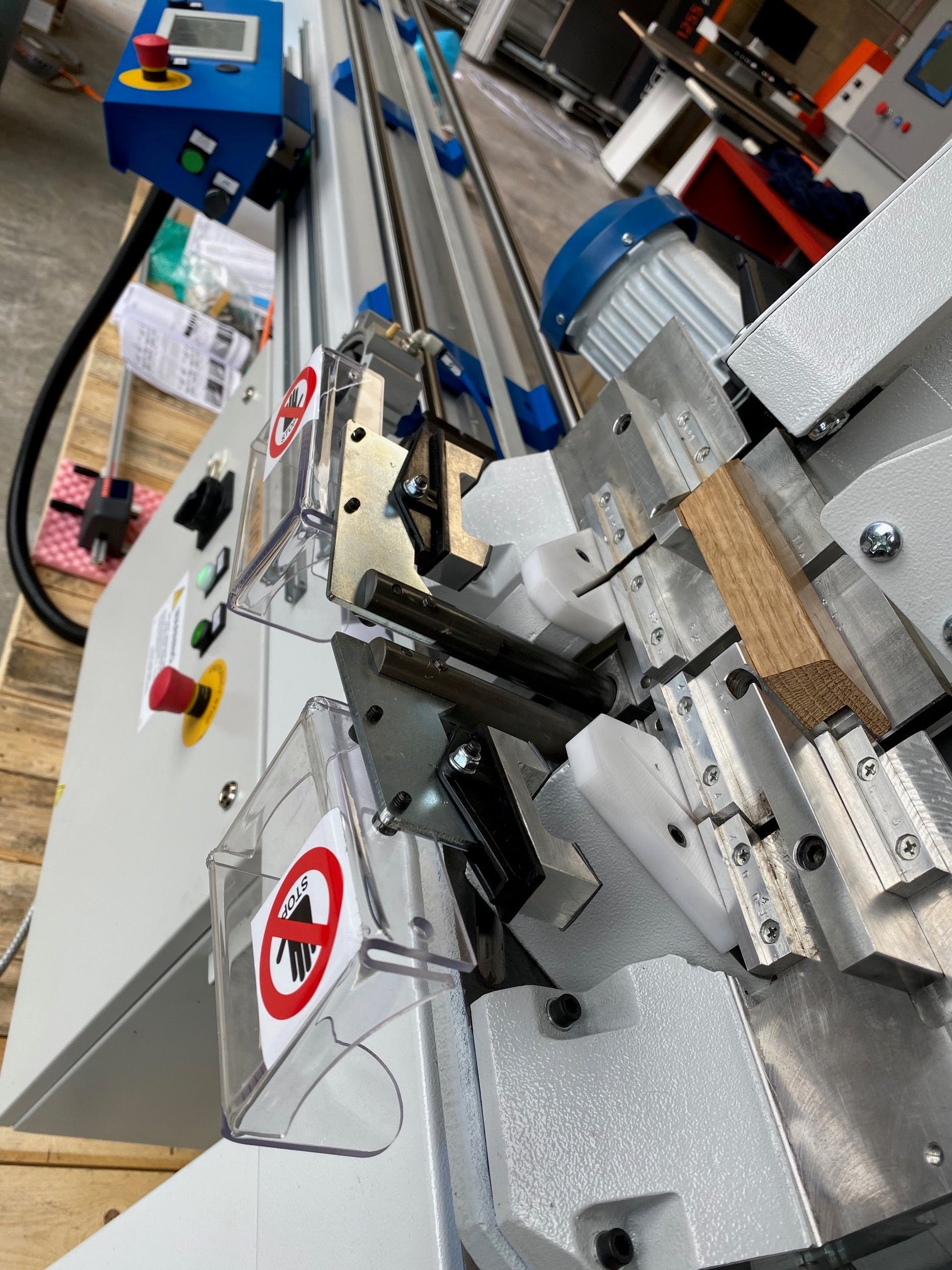

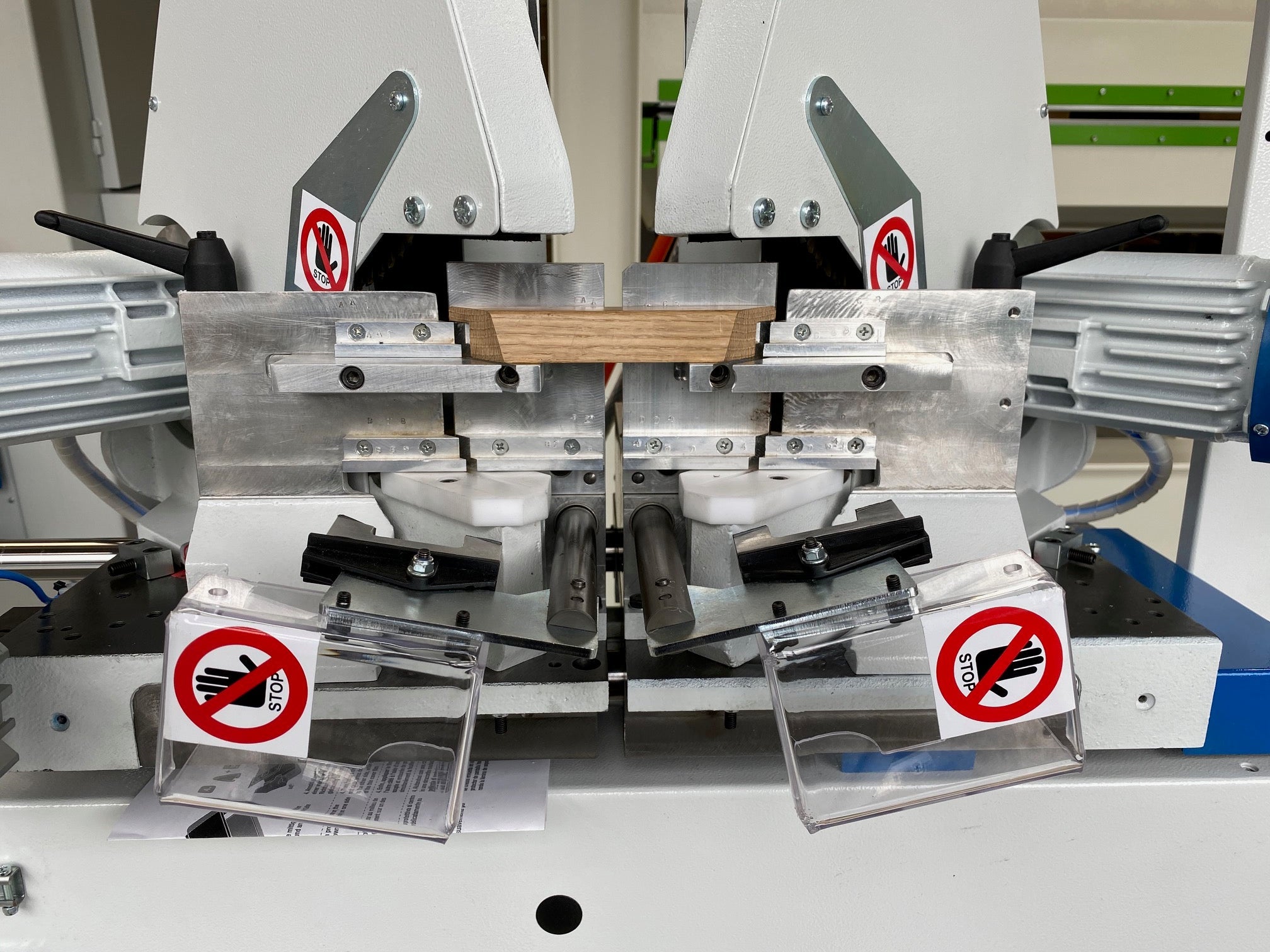

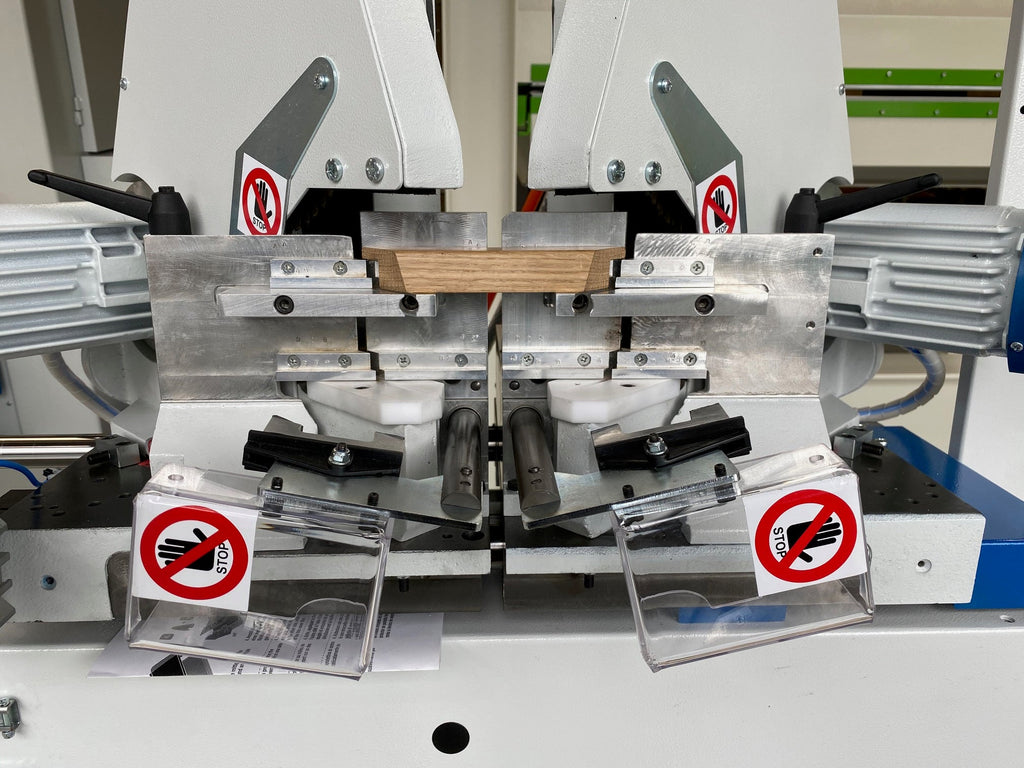

| Clamping System | Two pneumatic clamps synchronized with blade descent |
| Workpiece Support | Dual-level glazing bead support |
| Cutting Capacity | 2 glass stops simultaneously |
| Table Type | Rotary with mechanical locking |

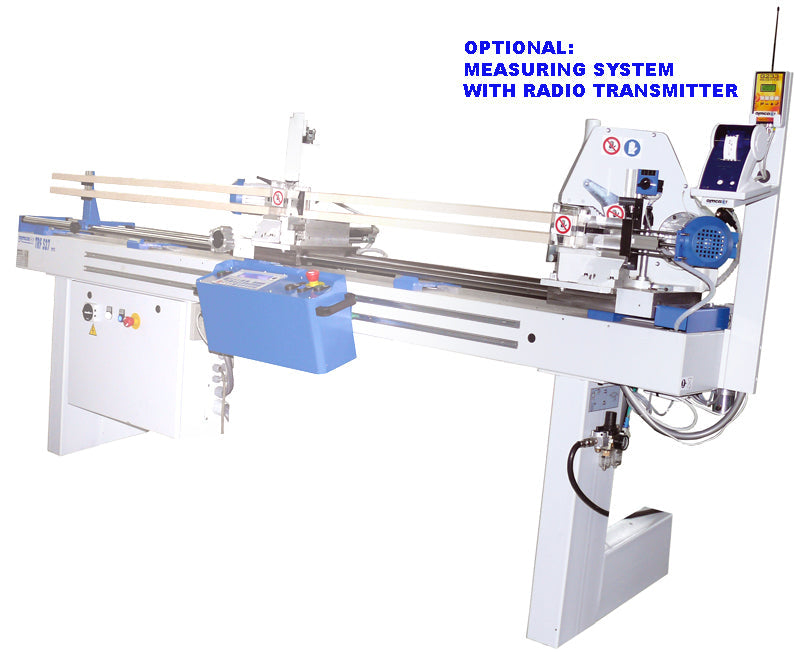

| Optional Feature | Electronic measuring system with radio transmitter |

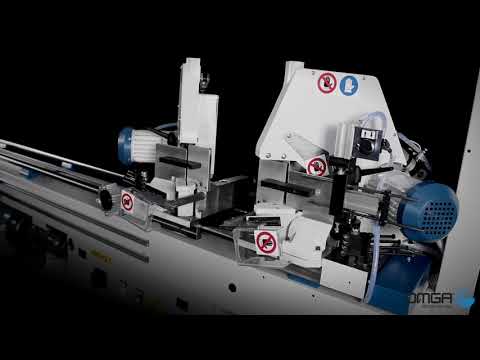

Videos
Compatibility
Designed for processing glazing beads and glass stops commonly used in the production of residential and commercial windows and doors.
What's included
- OMGA TRF Series Double Mitre Saw (configured as ordered)
- Standard pneumatic clamping system
- Dual-level workpiece support
- Mechanical measurement gauge (basic version)
