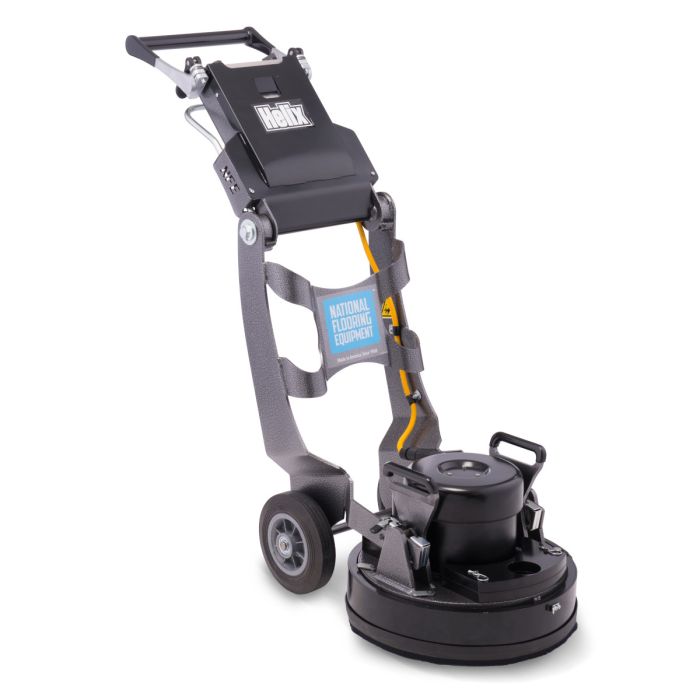

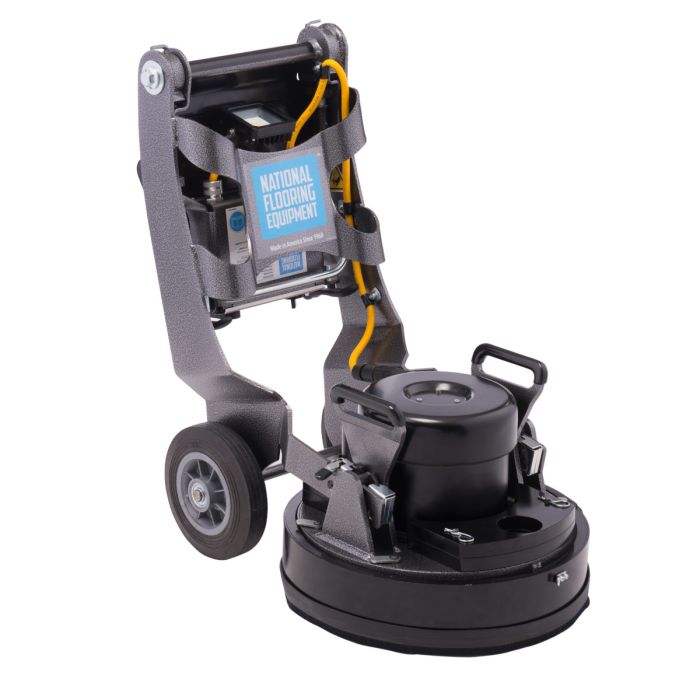

National Equipment Helix 16" Planetary Grinder
National Equipment Helix 16" Planetary Grinder
The Helix 16-inch planetary grinder delivers exceptional versatility for grinding, profiling, and coating removal on smaller jobs. Its compact design and edge-grinding capability allow operation within a half inch of walls, making it ideal for tight spaces.
Loaded with professional features, this machine includes a dual-speed motor, adjustable handle, floating dust skirt, and removable weights for precise head pressure control. The floating tooling assembly follows floor contours, while quick-release levers enable separation into two pieces for easy transport.
Key Features
| Brand | National Equipment |
| Model | Helix |
| MPN | HELIX |
| Disk Size | 16" |
| Width | 44.5 cm |
| Max. Height | 120.9 cm |
| Min. Height | 74.7 cm |
| Max. Length | 119.4 cm |
| Min. Length | 70.9 cm |
| Weight | 93.4 kg |
| Grinding Pressure | 58.1 kg |
| Motor Phase | Single |
| Horsepower | 1.5 HP |
| Amperage | 12 A |
| Voltage | 120V / 60 Hz |
| Drum RPM (High Speed) | 291/163 (60 Hz) |
| Drum RPM (Low Speed) | 243/136 (50 Hz) |
| Motor RPM (High Speed) | 3200/1800 (60 Hz) |
| Motor RPM (Low Speed) | 2667/1500 (50 Hz) |
| Edge Grinding Capability | Yes, left or right side |
| Dust Skirt | Floating |
| Handle | Fully adjustable |
| Tooling Assembly | Floating, rotates 180° |

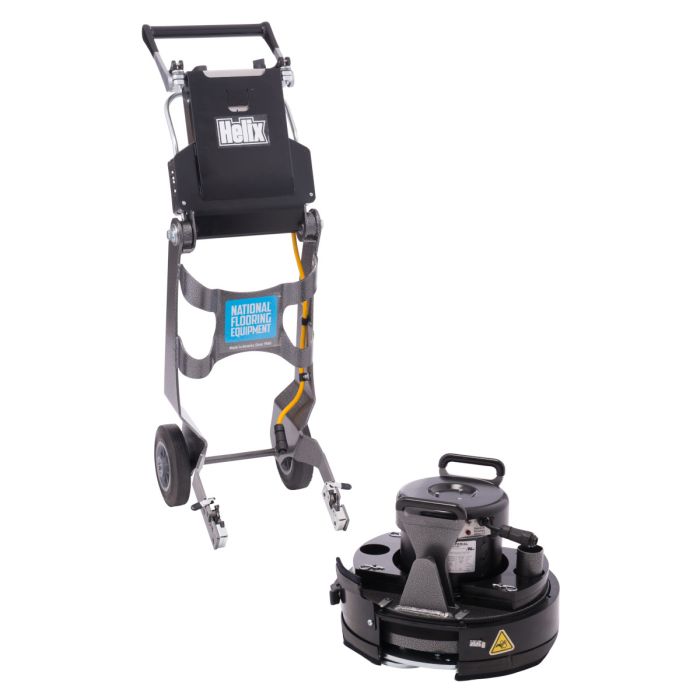

| Transport | Quick-release levers, separates into two pieces |
| Lighting | LED surface illumination |
| Weights | Removable |
| Warranty | 1-year parts and labor |
How to use
Adjust the handle to a comfortable operating position before starting. Select high or low speed based on the application—use high speed for aggressive coating removal and low speed for finer profiling. Add or remove the included weights to adjust head pressure as needed. For edge work, rotate the dust skirt up on the desired side to grind within a half inch of walls. The LED light illuminates the surface behind the machine for improved visibility.
Warranty
One-year manufacturer's warranty on parts and laborWhat's included
- 404021: Magnetic tooling holder (3)
- 9245: Velcro adapter (3 each)
- 403231: Floating dust skirt
- 402757: Helix Grind & Scrape Plate
- One-year manufacturer's warranty on parts and labor
- Instruction Manual
