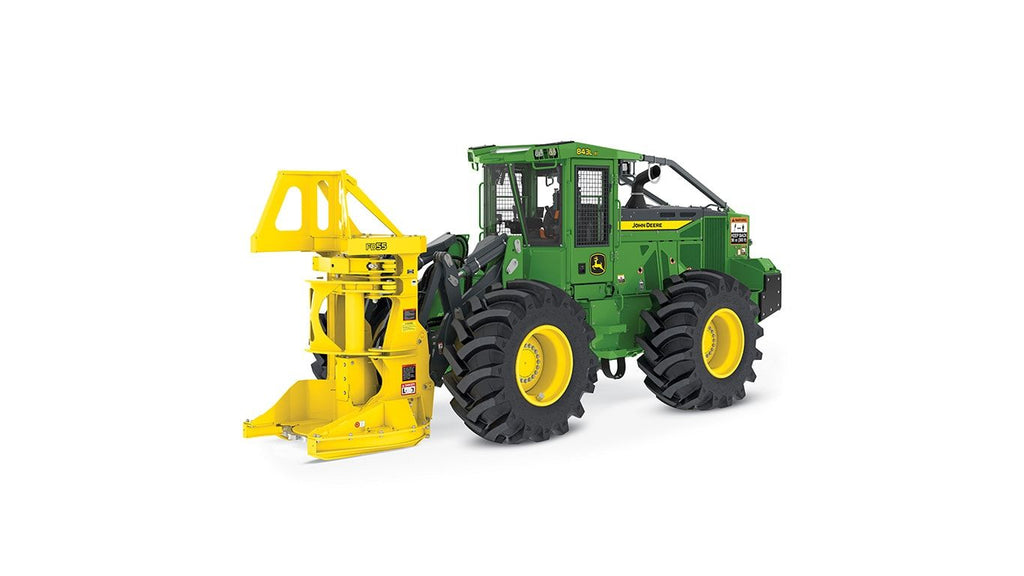

The John Deere 843L-III Wheeled Feller Buncher delivers robust 270 hp performance and a 37,659 lb operating weight for demanding forestry applications. Its articulated frame steering and hydrostatic-mechanical transmission provide exceptional maneuverability and power to the ground in tough terrain.

Choose from three factory-installed felling heads to match your specific timber size and harvesting method, from high-accumulation thinning to large-diameter clear-cutting. The premium cab option enhances operator comfort with auto climate control, a secondary display, and integrated cameras for improved visibility and efficiency.

Key Features

Brand John Deere
Manufacturer John Deere
Model Number 843L-III
Product Type Wheeled Feller Buncher
Condition New
Engine Manufacturer John Deere
Engine Model PowerTech PSS 6.8L
Engine Displacement 414 in³ (6.8 L)
Gross Power 270 hp (201 kW)
Gross Torque 841 ft.-lb. (1141 Nm)
Rated Speed 1900 rpm
Transmission Hydrostatic-Mechanical
Number of Speeds - Forward 2
Number of Speeds - Reverse 2
Steering Articulated frame
Planetaries Inboard
Service Brake Type Wet Disc - Inboard
Standard Tire Size - Front 28 L x 26
Overall Length 20 ft 8 in (6293 mm)
Height Over Cab 10 ft 7 in (3216 mm)
Width 9 ft 7 in (2913 mm)
Wheelbase 10 ft 5 in (3175 mm)
Ground Clearance 19 in (484 mm)
Steering Articulation Angle ± 45 Degrees
Fuel Tank Capacity 104.6 gal (US) (396 L)
Hydraulic Tank Capacity 44.7 gal (US) (169.1 L)
Alternator Capacity 150 Amp
Travel Speed 10.8 mph (17.5 kph)
Oscillation Point Front Axle
Oscillation Angle ± 15 Degrees
System Voltage 24 V
Pump Type Axial piston
Operating Weight 37,659 lb (17,081 kg)

Highlights

  • Gross Power: 201 kW (270 hp)
  • Gross Torque: 1141 Nm (841 ft.-lb.)
  • Wheelbase: 3175 mm (125 in.)
  • Operating Weight: 13 910 kg (30,704 lb.)

Compatibility

Compatible with John Deere FD45, FD55, and FD22B felling heads. Optimized for John Deere carriers.

What's included

  • John Deere 843L-III Wheeled Feller Buncher base machine
  • JDLink™ telematics system
  • Operator manual

Frequently asked questions

What felling heads are available for the John Deere 843L-III?

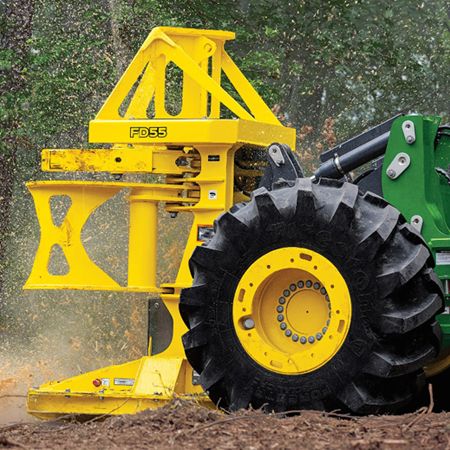

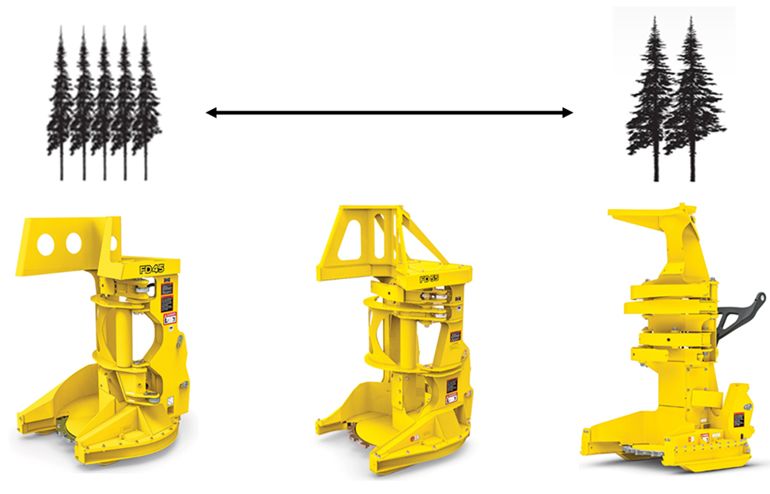

Three factory-installed felling heads are available: the twin-post FD45 and FD55 for high-accumulation thinning and plantation harvests, and the single-post FD22B for large timber in clear-cutting applications.

What is the operating weight of the 843L-III?

The operating weight is 37,659 lb (17,081 kg).

What telematics system comes standard on this machine?

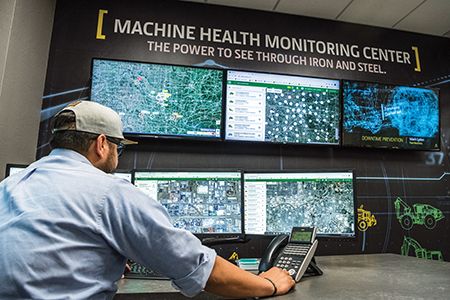

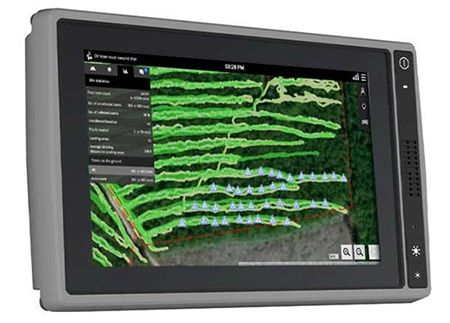

The JDLink™ telematics system is included in the base machine, providing the foundation for John Deere’s Precision Forestry solutions for remote monitoring and diagnostics.

What comfort features are included in the premium cab option?

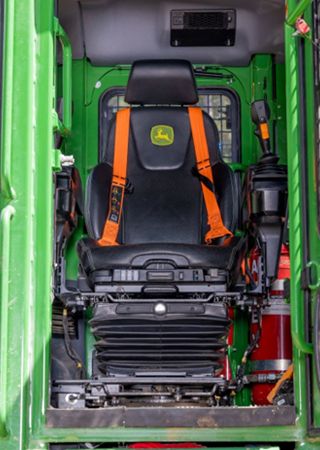

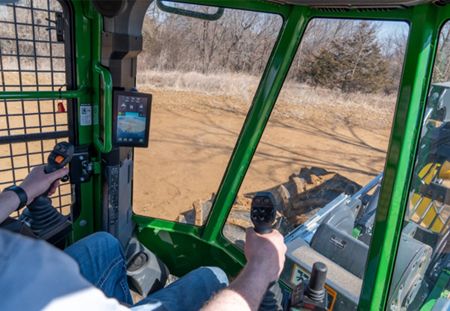

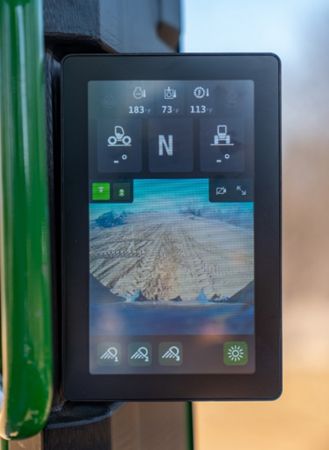

The premium cab includes automatic climate control, a 7-inch secondary display unit, blade-view and tong-view cameras, a RAM® mount cell phone holder, USB charging ports, a windshield wiper, and a CB radio mount.
