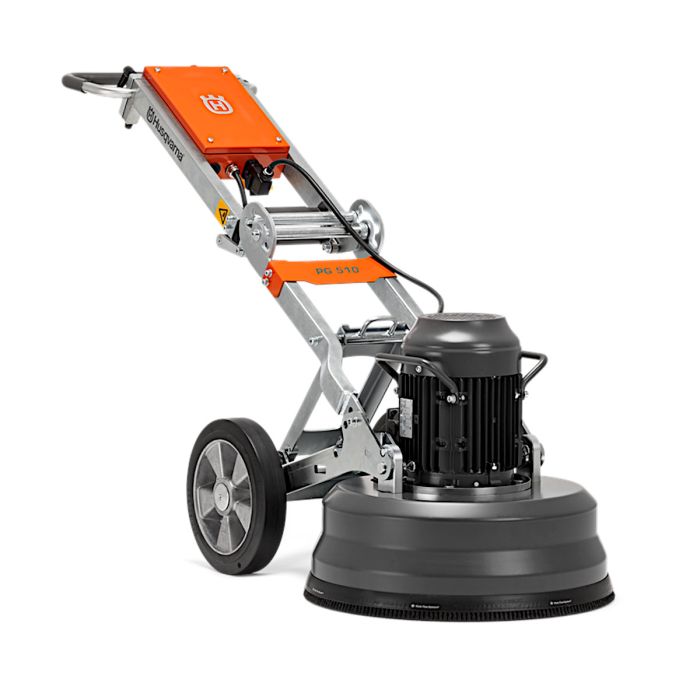

Husqvarna PG 510 220V Single-Phase Planetary Floor Grinder
Husqvarna PG 510 220V Single-Phase Planetary Floor Grinder

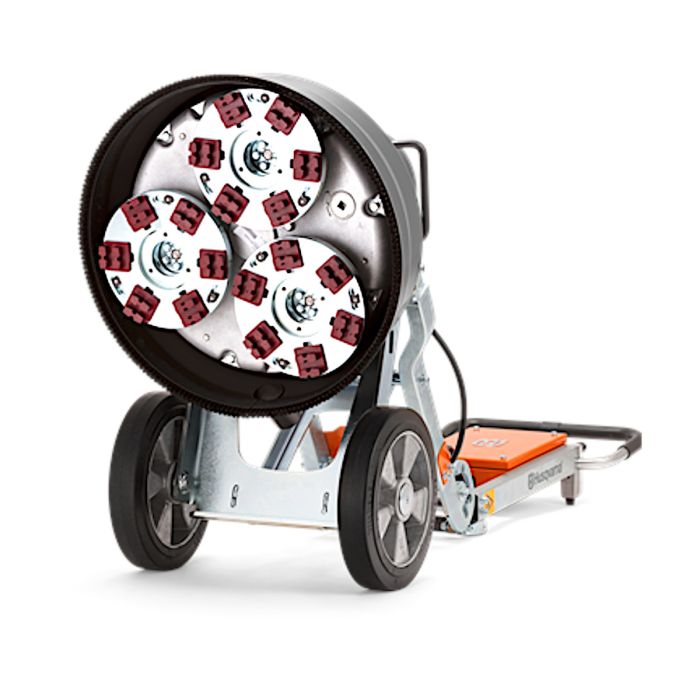

The Husqvarna PG 510 is a powerful planetary floor grinder designed for removing coatings, grinding, and polishing concrete surfaces. Its sealed grinding head protects internal bearings and belts from dust and moisture, ensuring long-term durability and reliable performance.

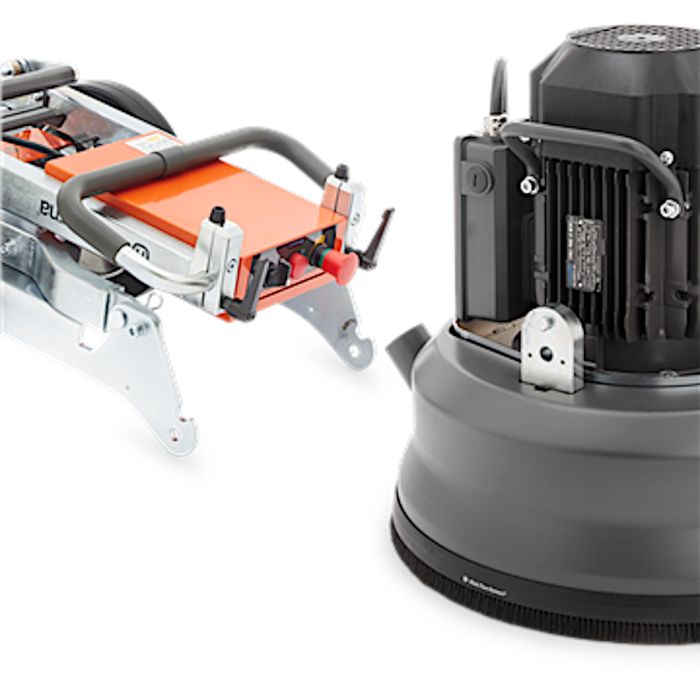

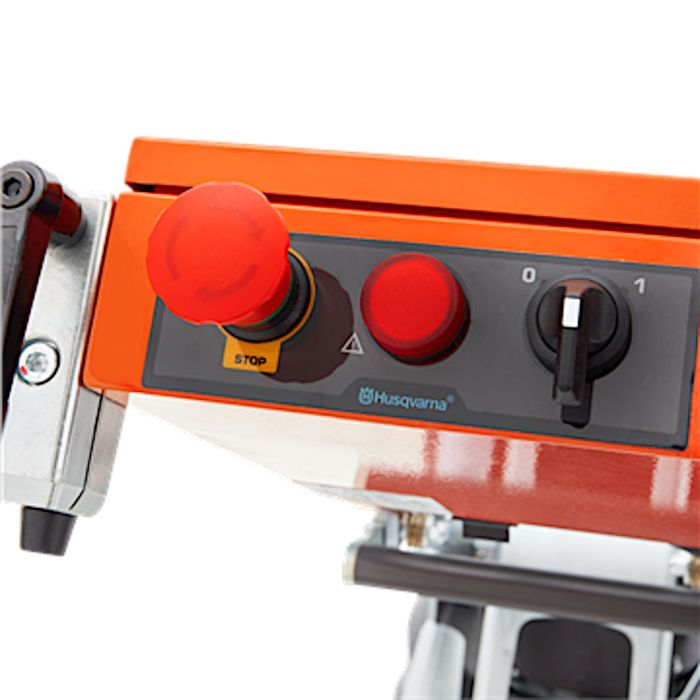

This machine features a lightweight, compact design with a foldable frame for easy transport and setup. The user-friendly control panel includes overload protection and a digital hour meter, while the self-adjusting floating cover with brush list provides a tight seal for superior dust containment.
Key Features
| Brand | Husqvarna |
| MPN | 970754903 |
| Power | 3 HP 1-Phase Motor |
| Voltage | 220-240V |
| Rated Current | 15 Amps |
| Plug Type | L6-30 |
| Grinding Width | 51 cm |
| Grinding Disc Diameter | 3 x 23 cm |
| Grinding Disc Segment Capacity | 18 |
| Grinding Pressure | 66 kg |
| Grinding Disc Speed | 438 RPM |
| Direction of Rotation | Counter Rotation |
| Dimensions (L x W x H) | 152.4 cm x 55.4 cm x 95 cm |
| Weight | 120 kg |
| Recommended Generator Size | 12 kW |
| Recommended Dust Extractor Size | 484 m³/h |
| Product Type | Planetary Floor Grinder |
| Number of Grinding Discs | 3 |
| Dust Containment | Sealed grinding head with floating cover and brush list |
| Tooling System | Husqvarna Redi Lock |
| Frame | Foldable |
| Hour Meter | Digital |
How to use
Set up the PG 510 on a clean, dry concrete surface. Connect to a suitable 220-240V power source or 12 kW generator. The fixed-speed motor requires no speed settings—simply power on and begin grinding. Use the Redi Lock system to quickly swap diamond tooling without tools. Always pair with a dust extractor rated at 484 m³/h (285 CFM) or higher for optimal dust control.
What's included
- Husqvarna PG 510 Planetary Floor Grinder
- Floating cover with brush list
- Operator's manual
