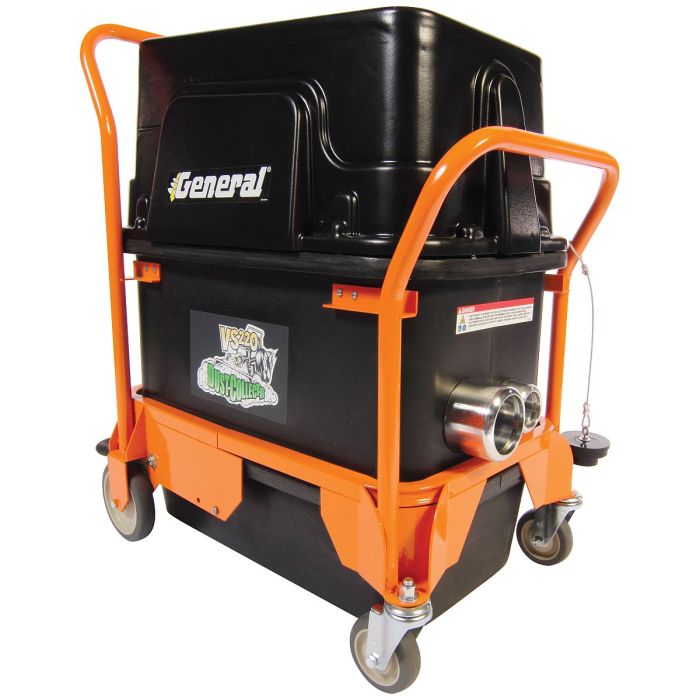

General Equipment VS220 Dust-Collect-R Vacuum System
General Equipment VS220 Dust-Collect-R Vacuum System
The General Equipment VS220 Dust-Collect-R is a powerful, portable dust collection system engineered for demanding floor removal and surface preparation tasks. It features dual 2-inch and 3-inch diameter dust port connections, enabling dual-tool operation for significantly increased productivity on the jobsite. The heavy-duty design incorporates a manual filter shaker system and a pressure gauge to alert the operator when cleaning is required.
This system is built for longevity and compliance, utilizing a high-density polyurethane housing on a welded steel frame. The advanced filtration system combines a geo-synthetic polyfelt pre-filter with a PTFE pleated HEPA secondary filter, ensuring a clean and safe working environment. It comes standard with a 25-foot flexible hose and operates on a standard 115V power source.
Key Features
| Brand | General Equipment |
| Model Number | VS220 |
| Operating Environment | Nonhazardous type locations |
| Electric Motor | Two, 115 VAC, 60 Hz, single speed |
| Peak Horsepower | 2.6 |
| Maximum Amperage | 17 Amperes |
| Volume Flow | 220 CFM (6.3 CMM) |
| Water Lift (suction) | 2794 mm |
| Filter Size | 1.7 square meters |
| Pre-Filter Construction | Geo-synthetic polyfelt |
| HEPA Secondary Filter Construction | PTFE pleated media |
| Dust Hopper Capacity | 47.3 L |
| Construction | High density polyurethane housing and welded, steel frame |
| Extension Cord | 16-3 SJT x 8 m length |
| Dimensions (L x W x H) | 876.3 x 482.6 x 896.6 mm |
| Weight | 46 kg |
| Product Type | Dust Collector |
| Power Source | Corded Electric |
| Filtration Type | HEPA |
What's included
- General Equipment VS220 Dust-Collect-R Vacuum System
- 25 ft (7.6 m) of 3-inch diameter flexible hose
- Hose coupler
