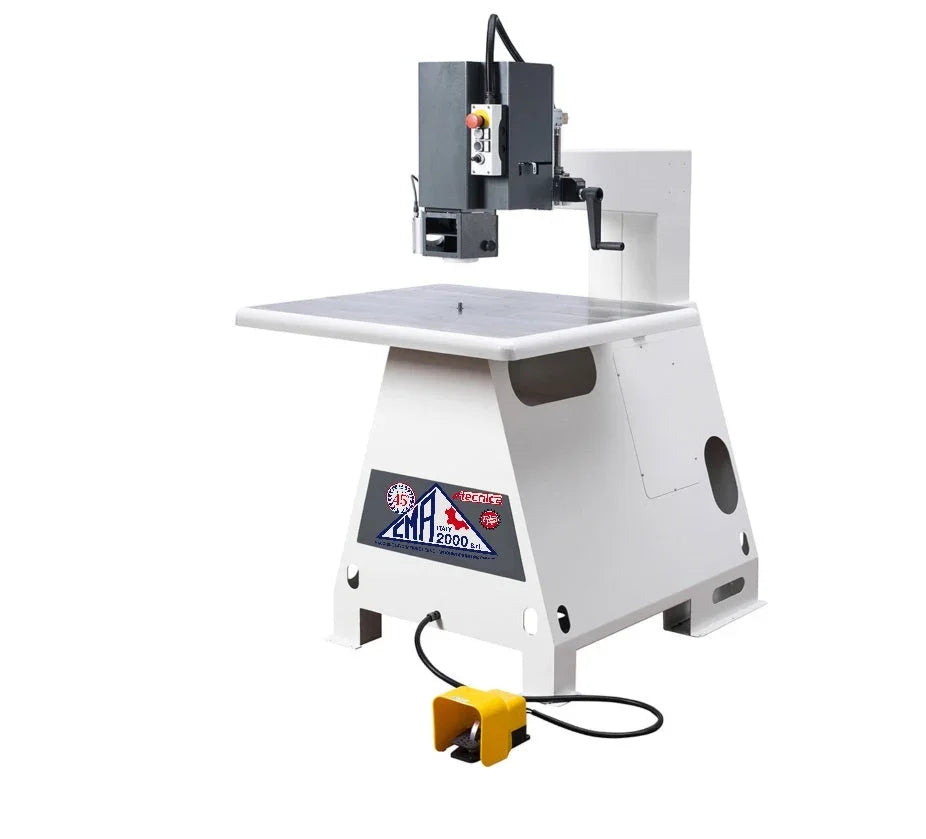

Calderbrook CMA2000 SKEMA 800 Overhead Pin Router

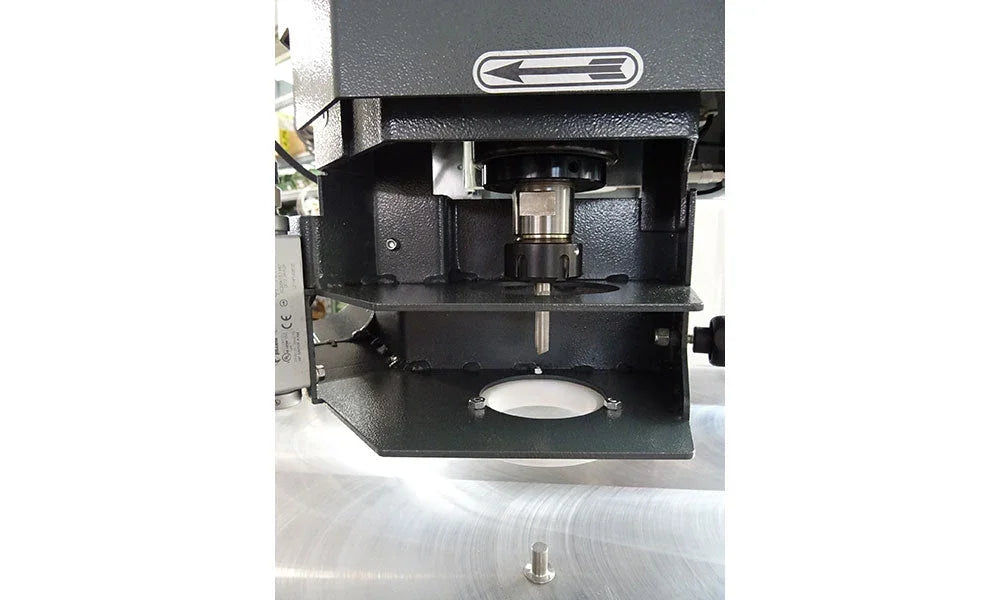

The CMA2000 SKEMA 800 is a robust overhead pin router built for precision and repeatability in demanding woodworking environments. Its milling head features an electro-spindle with variable rotation speed from 3,000 to 18,000 RPM, while the 5-stop adjustable turret allows for rapid operational changes without sacrificing accuracy.

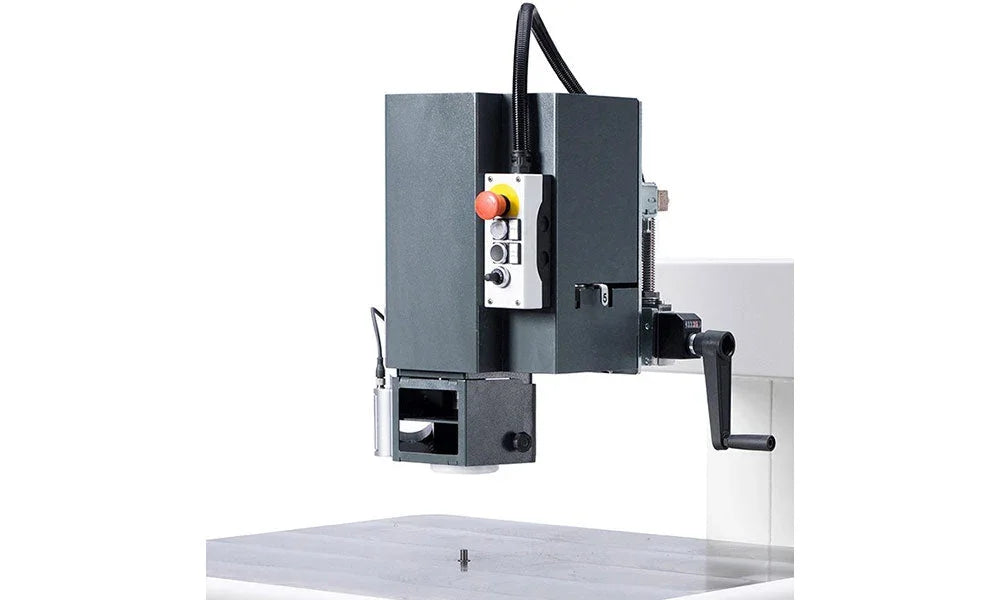

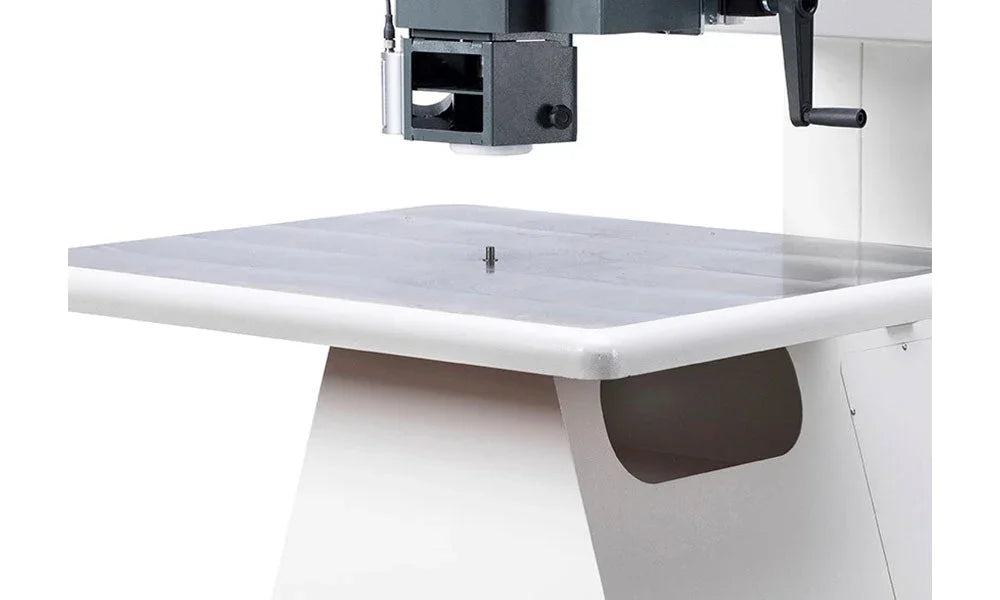

Designed with an 800 mm spindle-to-frame distance and a fixed iron worktable, this machine comfortably handles large workpieces. The mobile working head provides vertical adjustment via a handle with a mechanical counter readout, and pneumatic head activation ensures smooth, controlled operation in the working position.

Key Features

Highlights

• 800 mm spindle-to-frame distance for large workpiece capacity
• Electro-spindle with 3,000–18,000 RPM variable speed
• 5-stop adjustable turret for rapid operation changes
• Pneumatic head activation for smooth, controlled operation
• Self-braking motor compliant with EC regulations

How to use

Secure the workpiece on the fixed iron worktable. Set the desired spindle speed between 3,000 and 18,000 RPM and adjust the turret stop for the required depth. Use the handle to lower the mobile working head, reading the mechanical counter for precise vertical positioning. Activate the head pneumatically to begin routing, and connect an 80 mm dust extraction hose to the suction hood for clean operation.

What's included

• CMA2000 SKEMA 800 Overhead Pin Router
• 9-10 mm ER25 collet
• 80 mm suction hood
